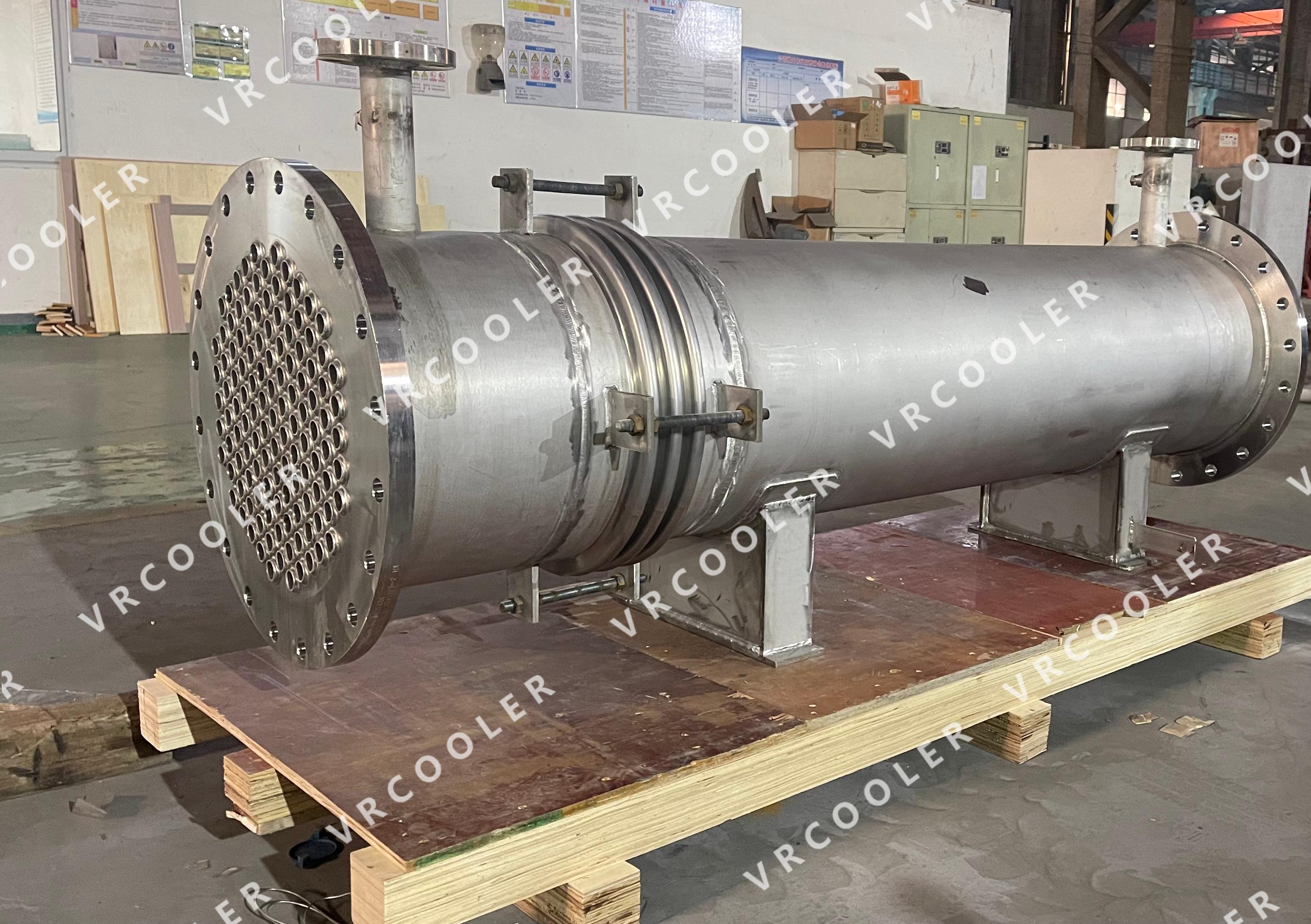

Shell and Tube Seawater Heat Exchanger for Atlas Copco G132 W Compressor

In marine and coastal installations, compressed air systems often work in conditions that are far harsher than a normal factory environment. Salt, humidity, high ambient temperatures, and limited plant space all place extra demands on the cooling circuit. That is why a seawater heat exchanger for an Atlas Copco G132 W air compressor is usually treated as a custom-engineered cooling solution rather than a standard utility component. Atlas Copco’s current documentation lists the G132 W as a water-cooled, oil-injected screw compressor in the G series, with 177 hp motor rating and multiple pressure variants including 145 psig models.

For this type of compressor, the job of the heat exchanger is straightforward but critical. It removes heat from the compressor’s cooling circuit and transfers that heat into seawater or into a secondary water loop connected to seawater cooling. In practice, that means the heat exchanger helps the compressor maintain stable oil and air-end temperatures, which is essential for reliable operation over long duty cycles. Atlas Copco also notes corrosion-resistant coolers for water-cooled units in its G-series literature, which is a useful reminder that cooling hardware selection matters a great deal on water-cooled compressor packages.

When seawater is involved, material selection becomes one of the most important design decisions. Marine cooling equipment suppliers such as Alfa Laval specifically point to titanium plates and copper-nickel shell-and-tube designs for seawater service because of their corrosion resistance in marine environments. That does not mean every G132 W installation should use the same construction, but it does mean a seawater cooler for this compressor should be selected with the actual water quality, temperature, chlorides, fouling risk, and maintenance regime in mind. In other words, for a G132 W, a seawater heat exchanger is typically a custom replacement or custom adaptation matched to the site rather than a generic cooler. That last point is an engineering inference based on the compressor being water-cooled and marine exchangers requiring application-specific corrosion control.

A good seawater heat exchanger for this compressor should also be designed with serviceability in mind. Seawater carries suspended solids, marine growth, and biological debris that can foul heat transfer surfaces over time. Alfa Laval’s filtration guidance notes that self-cleaning filters are used to protect heat exchangers from clogging, fouling, and corrosion, and to remove debris and marine life from cooling water. In a real compressor installation, that translates into longer service intervals, more stable cooling performance, and a lower risk of unexpected shutdowns caused by poor heat transfer or blocked passages.

From an application standpoint, this kind of cooler is especially relevant on ships, offshore support systems, dockside utilities, and coastal industrial plants where freshwater is limited but seawater is available in abundance. In those settings, a properly designed seawater heat exchanger can make the cooling circuit more practical and compact while helping the Atlas Copco G132 W operate under consistent thermal conditions. The best result usually comes from matching the exchanger to the compressor’s actual operating pressure, cooling load, seawater temperature, and allowable pressure drop, rather than trying to force a standard exchanger into the job. Atlas Copco’s own data sheets show that G132 W units are offered across several pressure points, which reinforces the need to size the cooler around the exact machine configuration.

For customers looking for a replacement or OEM-style cooling component, a seawater heat exchanger for the Atlas Copco G132 W is therefore more than a spare part. It is a reliability component. With the right corrosion-resistant construction, proper seawater-side filtration, and a layout matched to the compressor’s cooling duty, it can help protect the compressor, stabilize operation, and extend service life in demanding marine conditions. That is exactly why custom engineering matters so much in seawater compressor cooling.
