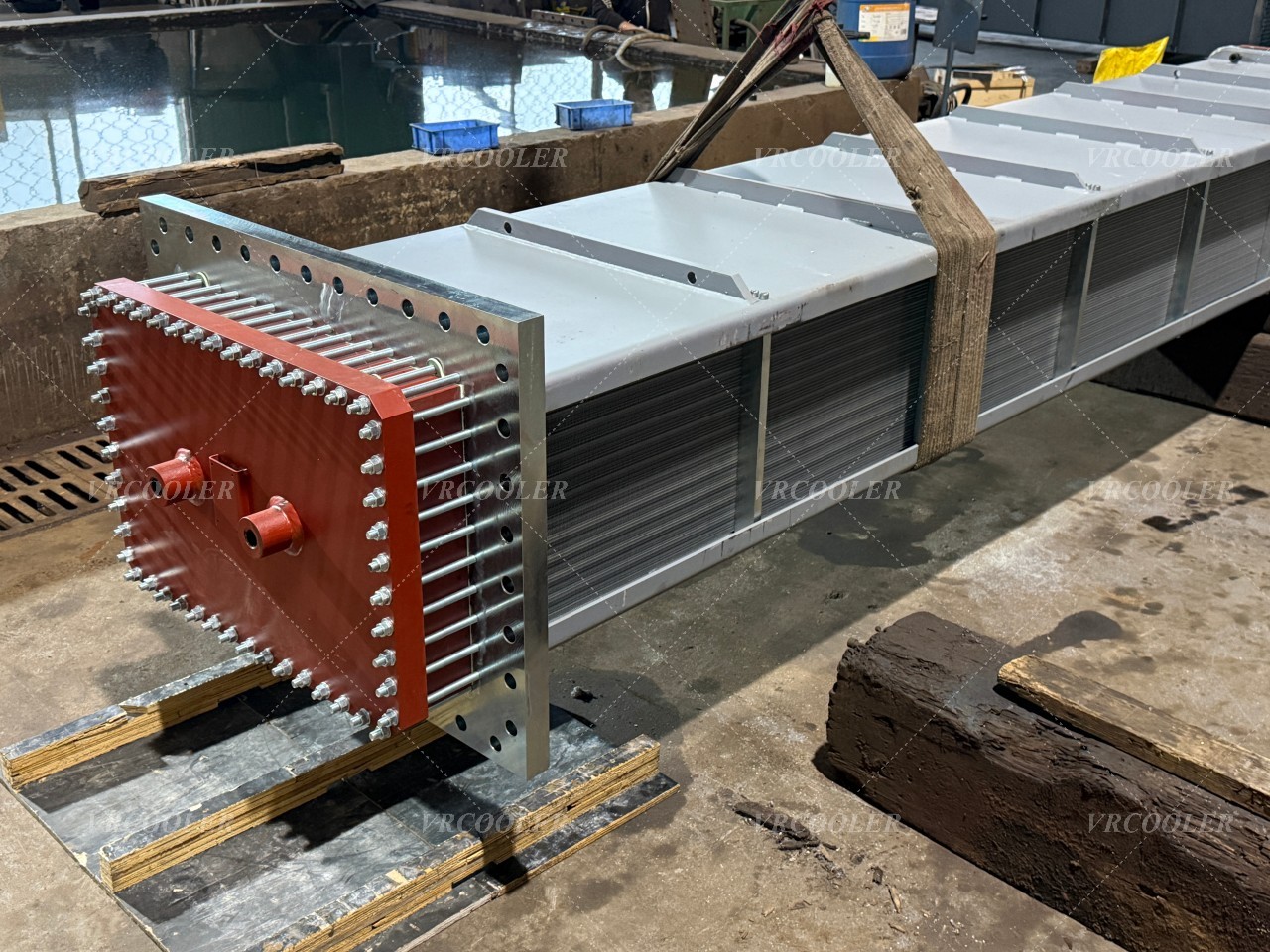

Hydrogen Coolers for Synchronous Condensers

Synchronous condensers are installed to do a job that has become increasingly important in modern power systems. They help stabilize voltage, provide reactive power support, improve short-circuit strength, and contribute rotational inertia to the grid. In practice, they are often expected to operate continuously under demanding electrical conditions, which means thermal management is critical to long-term reliability. That is where hydrogen coolers play an essential role. In hydrogen-cooled synchronous condensers, they remove heat from the circulating gas and help the machine maintain safe operating temperature during continuous service.

A synchronous condenser may not deliver active power like a generator, but it still handles substantial electrical and mechanical stresses. Heat is produced in the stator, rotor, and internal circulating gas as the machine operates. If that heat is not removed effectively, temperature rise can affect insulation life, reduce operating margin, and increase the risk of unplanned outages. A hydrogen cooler helps prevent that by transferring heat from the hydrogen inside the machine to a secondary cooling medium, usually water.

The reason hydrogen is used in large rotating electrical machines is clear. Compared with air, hydrogen has better heat transfer characteristics and lower density. That lower density reduces windage losses, while the gas still carries heat away efficiently from critical internal components. In a synchronous condenser, this can support better thermal performance and more efficient operation. But hydrogen does not remove heat by itself. It must be cooled continuously as it circulates through the machine, and the hydrogen cooler is the component that makes that possible.

The operating principle is straightforward. Hot hydrogen gas flows across the cooler surface, while cooling water passes through the tubes inside the cooler. Heat moves from the gas side to the water side, lowering the hydrogen temperature before it returns to the internal circulation path. This cycle continues during operation, helping the synchronous condenser maintain a stable thermal condition even when reactive power demand changes over time.

For hydrogen-cooled synchronous condensers, sealing integrity is just as important as thermal performance. Hydrogen is a very light gas, so leakage control is a serious design issue. A hydrogen cooler must therefore do more than exchange heat efficiently. It must also be manufactured with dependable tube-to-tube sheet joints, strong sealing structure, and reliable materials that can perform over a long operating life. In these machines, cooler quality directly affects both cooling reliability and gas containment.

Cooling performance has a direct influence on equipment life. When the hydrogen cooler operates properly, internal temperatures remain more stable, which helps protect insulation systems and reduces thermal stress on major components. This supports longer maintenance intervals and more reliable condenser service. If the cooler becomes fouled, corroded, or partially blocked, heat removal drops and the machine may face temperature-related limitations. In a grid support application, that is a serious concern because synchronous condensers are often installed to strengthen network reliability, not introduce new risk.

Material selection matters a great deal in these coolers. The tube side must be suitable for the cooling water quality, while the gas side must maintain long-term integrity within the hydrogen environment. Depending on the application, materials may include copper alloys, stainless steel, or other corrosion-resistant options chosen according to site conditions and maintenance practice. In some critical installations, enhanced leak protection or double-tube construction may be preferred to reduce the risk of water entering the hydrogen circuit.

Another important factor is maintainability. Over time, water-side fouling, scaling, or corrosion can reduce cooler performance. For this reason, hydrogen coolers for synchronous condensers should be designed with inspection, cleaning, and replacement in mind. In many retrofit projects, plant owners are looking not only for dimensional compatibility with the original unit, but also for improvements in durability, sealing reliability, and thermal efficiency. A well-designed replacement cooler can help restore condenser performance and reduce operating risk without major changes to the machine.

As more grids integrate renewable generation, the role of synchronous condensers continues to grow. They are increasingly used to support network stability where system inertia and reactive power capability are under pressure. In that environment, reliable cooling becomes even more important. A hydrogen cooler may be only one part of the machine, but its impact is much larger than its size suggests. It supports thermal stability, protects insulation, and helps the condenser remain available for the grid services it was installed to provide.

Hydrogen coolers for synchronous condensers are therefore more than standard heat exchangers. They are precision cooling components designed for critical rotating equipment in high-value power applications. By removing heat from the circulating hydrogen and maintaining controlled internal gas temperature, they help ensure stable operation, long service life, and dependable grid support performance.

For utilities, EPC contractors, and service teams, selecting the right hydrogen cooler means protecting one of the most important auxiliary systems inside the machine. When designed and manufactured correctly, it becomes a key part of the synchronous condenser’s reliability and long-term value.
