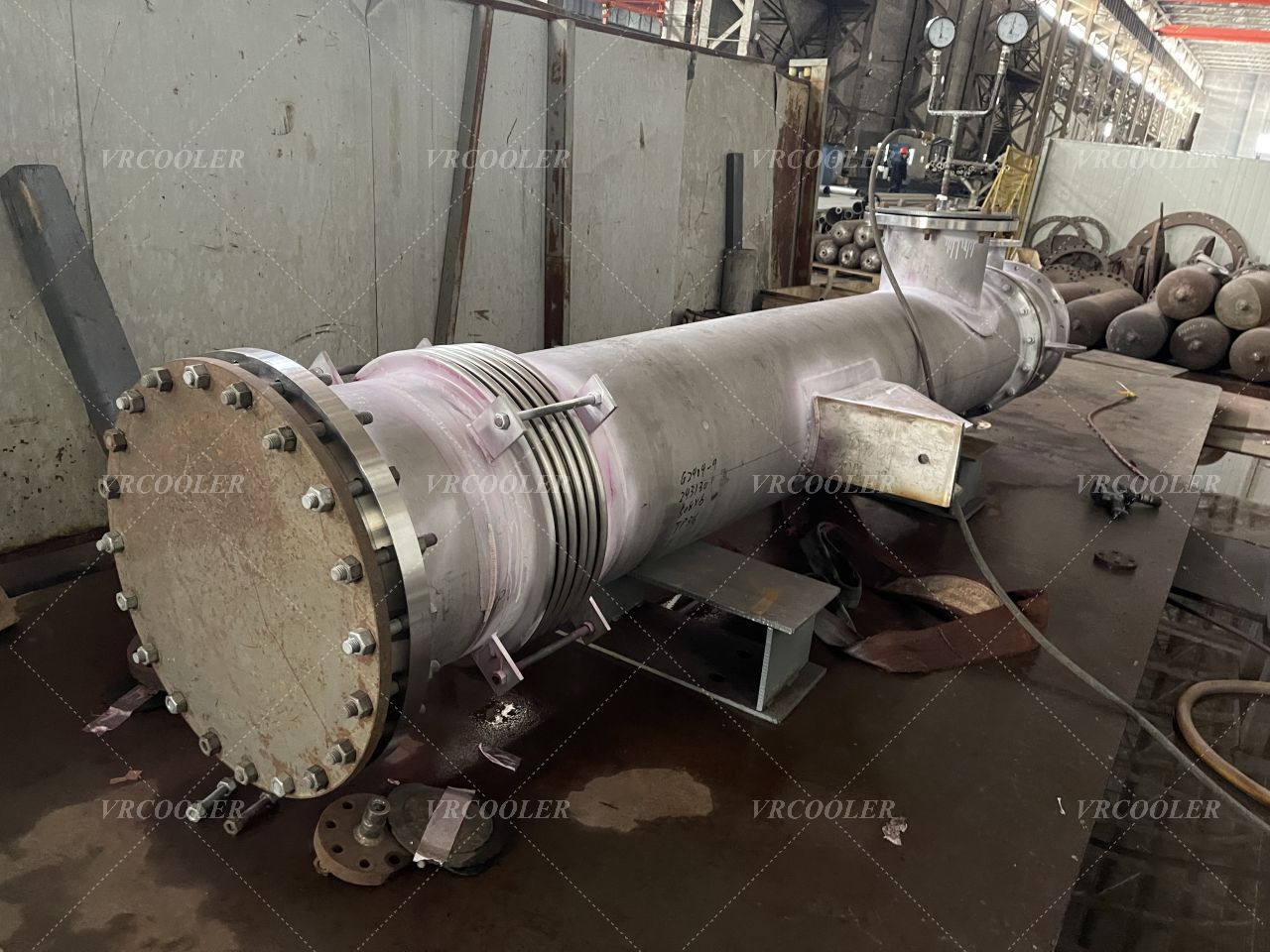

Shell and Tube Heat Exchanger for Methanation Plant Process Water Cooling

In a methanation plant, temperature control is not a secondary issue. It is one of the conditions that directly affects process stability, equipment reliability, and overall plant efficiency. Because methanation is an exothermic process, a large amount of heat must be managed carefully throughout the system. This is why shell and tube heat exchangers remain a dependable choice for process water cooling in methanation applications. Their structure is proven, their performance is stable, and they can be tailored to the exact hydraulic and thermal conditions of the plant.

For this application, the heat exchanger is designed to cool process water on the tube side from 41.42°C down to 35°C at a flow rate of 432 m³/h. On the shell side, cooling water enters at 25°C with a flow rate of 600 m³/h. Both sides are limited to a maximum allowable pressure drop of 0.3 bar, which means the exchanger must deliver the required thermal duty while maintaining relatively low hydraulic resistance. That balance between heat transfer and pressure loss is one of the main reasons a custom shell and tube design is important in a methanation plant.

Based on the operating data, the required cooling duty is substantial. With process water being cooled by about 6.42°C at 432 m³/h, the exchanger handles roughly 3.2 MW of heat load. Assuming normal water properties, the cooling water outlet temperature would be approximately 29.6°C, although the final value should be confirmed during detailed thermal design. This gives a good indication of the scale of heat removal involved and shows why exchanger selection must be based on actual plant conditions rather than a standard catalog model.

A shell and tube heat exchanger is especially well suited for this type of duty because it offers a strong combination of mechanical reliability and design flexibility. In methanation systems, continuous operation is common, and the cooling equipment must perform steadily over long periods. Shell and tube construction makes it easier to manage relatively large flow rates while also allowing the designer to control tube velocity, shell-side flow pattern, and pressure drop. This is important when both thermal performance and pumping limitations have to be respected at the same time.

The selected materials also reflect practical industrial requirements. In this case, the tube side is 304 stainless steel, while the shell side is carbon steel. This combination is often chosen when the process fluid requires better corrosion resistance on the tube side, while the shell side can remain more economical with carbon steel construction. Since the process water is carried inside the tubes, using stainless steel there helps improve durability and supports longer service life. The minimum tube inside diameter of 18 mm also suggests attention to flow passage size, which can be important for controlling fouling risk and keeping pressure drop within the required limit.

The maximum allowable working pressure of 3 bar on both sides further defines the mechanical design envelope. While this is not a high-pressure exchanger, it still requires careful fabrication to ensure safe and reliable operation under industrial conditions. For methanation plant service, the exchanger should be designed not only for heat transfer performance, but also for practical maintainability, stable long-term operation, and compatibility with the surrounding cooling water system.

One of the reasons shell and tube heat exchangers are widely used in process industries is that they can be adapted to many different duty conditions. In a methanation plant, that flexibility is valuable. Some projects prioritize compact size, others require easier cleaning access, and many need tight control of pressure loss because pump capacity is already fixed by the existing system. A custom exchanger can be designed around the real operating data, using the correct tube count, pass arrangement, shell configuration, and baffle design to achieve the required result.

Low pressure drop is particularly important in the case described here. A limit of 0.3 bar on both the tube side and the shell side means the exchanger cannot simply be made more thermally dense without considering the hydraulic consequences. If the internal flow path is too restrictive, the system may suffer from poor circulation or increased pump load. A good design therefore has to balance heat transfer area with smooth fluid movement. That is one of the reasons shell and tube exchangers continue to be favored for industrial water cooling duties: they allow that kind of engineering adjustment more easily than many compact exchanger types.

From an operating perspective, a well-designed process water cooler helps the methanation plant run more consistently. It stabilizes water temperature, supports better thermal control in the wider process, and reduces the risk of overheating in connected equipment. In a plant environment where uptime matters, that reliability has direct value. Good cooling performance does not just protect equipment; it also helps protect production continuity.

For this project, the shell and tube heat exchanger is not just a standard cooling component. It is a process support unit sized around real plant data: 432 m³/h process water, 600 m³/h cooling water, 41.42°C to 35°C tube-side cooling, 25°C shell-side inlet, 304 stainless steel tubes, carbon steel shell, 18 mm minimum tube ID, and 3 bar MAWP. These details define a practical industrial exchanger for methanation plant service, where dependable heat removal and low pressure drop are both essential.

In short, a shell and tube heat exchanger remains a strong solution for methanation plant cooling because it combines robust construction, adaptable design, and reliable thermal performance. When engineered correctly around actual process conditions, it can provide stable process water cooling, support long-term plant operation, and deliver the kind of performance industrial users expect from critical utility equipment.
