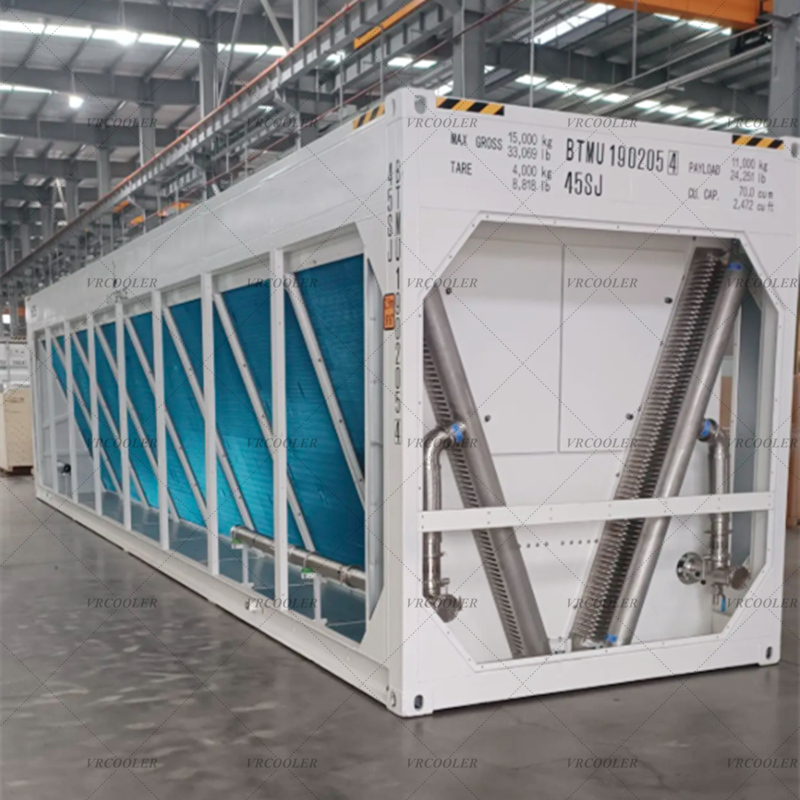

Our dedicated dry cooler for containerized BESS is professionally engineered to match standard 20ft and 40ft battery energy storage containers, providing reliable closed-loop water-glycol cooling for onboard battery thermal management systems. It realizes water-free heat dissipation, stable temperature control and space-saving installation, widely adopted in grid energy storage, solar energy storage, industrial backup power and microgrid storage projects.
Core Matching Design for 20ft & 40ft BESS Containers
Fit standard 20ft small energy storage container & 40ft large-scale energy storage container perfectly
Compact external mounting structure, available for top installation and side wall installation
No occupation of internal battery layout space, fully keep container inner layout intact
Lightweight optimized structure, meet container load-bearing and transportation standards
Pre-set interface matching mainstream container BESS liquid cooling loop, easy on-site connection
Working Principle
Hot water glycol coolant absorbing battery heat flows into dry cooler finned tube coils. High-efficiency axial fans discharge heat to ambient air through sensible heat exchange. Cooled fluid flows back to battery cooling plates continuously, maintaining constant operating temperature for lithium battery packs inside the container, effectively slowing down battery aging and avoiding thermal runaway risks.
Main Advantages
Zero Water ConsumptionAll dry cooling operation, no spray water, no evaporation loss, suitable for Middle East desert, high temperature arid areas.
Precise Battery Temperature ControlStable maintain battery working temperature within 18℃-28℃, uniform heat dissipation, extend battery service life greatly.
All-Weather AdaptabilityDesigned for max ambient 55℃ high temperature, also support low temperature anti-freeze operation, fit tropical, subtropical and cold regions.
Low Operation & MaintenanceNo chemical water treatment needed, no pipeline scaling fault, reduce later maintenance cost of container energy storage station.
Energy Saving Free Cooling ModeEquipped with VFD fan group, automatically adjust operating power, make full use of natural cold source to cut down overall energy consumption of BESS system.
Harsh Environment ResistantGalvanized steel frame plus anti-corrosion coil, dustproof, rainproof and salt mist resistant, stable outdoor long-term running.
Application Range
20ft mobile containerized battery energy storage system
40ft large-scale grid-connected energy storage container unit
Solar wind power supporting container energy storage station
Industrial factory container type emergency energy storage power station
Outdoor distributed container BESS projects in UAE, Saudi Arabia, Southeast Asia
Custom Service
We supply full set matching dry coolers according to 20ft/40ft BESS actual cooling load, coolant flow rate, installation position and local ambient temperature. Provide thermal design, dimension drawing, factory pre-assembly and global project delivery service.
