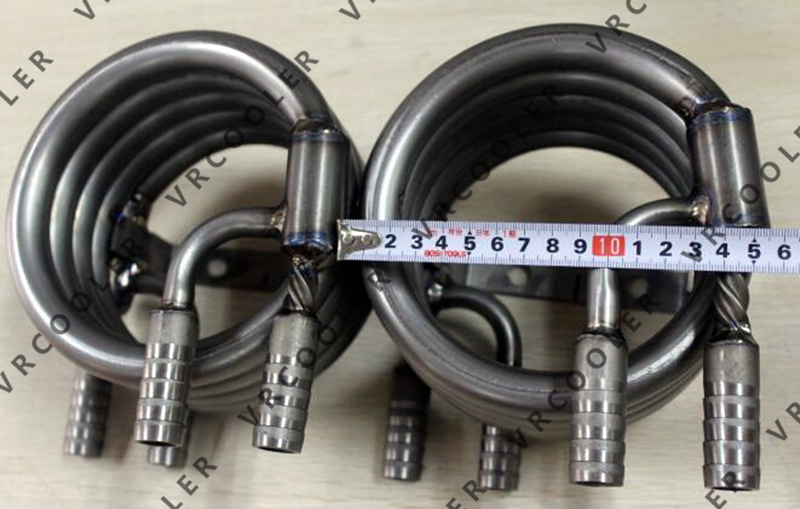

Stainless Steel Outer Tube Titanium Inner Tube Coaxial Evaporator and Condenser

In heat pump, chiller, and marine cooling systems, the heat exchanger is one of the components that most directly affects reliability. When the water side involves seawater, brackish water, chloride-rich fluid, or other aggressive media, standard copper-based exchangers often struggle to deliver the service life users expect. This is why a coaxial evaporator or condenser built with a stainless steel outer tube and titanium inner tube is such a practical solution. It combines compact structure, strong corrosion resistance, and dependable heat transfer performance in one design.

The basic structure is simple but highly effective. The exchanger uses one tube inside another, creating two separate flow passages. One fluid moves through the inner titanium tube, while the other flows through the annular space between the titanium tube and the stainless steel outer tube. This coaxial arrangement creates a continuous heat exchange path in a compact form, making it suitable for systems where installation space is limited but reliability is critical. Depending on the refrigeration circuit, the unit can work as an evaporator or as a condenser.

The titanium inner tube is the main reason this design is attractive for corrosive water applications. Titanium is widely valued for its resistance to seawater and chloride attack, which makes it especially useful in marine equipment, coastal installations, swimming pool heat pumps, aquaculture systems, and industrial cooling loops where water quality can be challenging. In these environments, material selection is not just a detail. It determines whether the heat exchanger will operate reliably over the long term or face early failure due to corrosion. By using titanium on the fluid side that faces the most aggressive conditions, the exchanger gains a clear advantage in durability.

The stainless steel outer tube provides mechanical strength and structural support for the overall assembly. It helps the exchanger maintain a compact and pressure-resistant form while also contributing to a clean and durable construction. This combination of stainless steel outside and titanium inside gives the unit a balanced design: corrosion resistance where it matters most, and solid structural performance for continuous operation.

One of the practical advantages of a coaxial heat exchanger is flexibility. It can be used in a wide range of refrigeration and heat pump systems where the thermal duty may vary, but the need for compact size remains the same. In evaporator service, the exchanger can absorb heat from water or another liquid medium and transfer it to the refrigerant. In condenser service, it can reject heat from the refrigerant into the water circuit. Because of this dual application potential, coaxial designs are often used in water-source heat pumps, geothermal systems, seawater heat pumps, marine HVAC equipment, chillers, and specialized process cooling systems.

Compactness is another reason this design is popular. Compared with larger shell and tube arrangements, a coaxial evaporator or condenser can fit more easily into packaged equipment. For OEM manufacturers, this is an important advantage because machine layout often leaves only limited space for the refrigerant heat exchanger. A well-designed coaxial unit helps save space without sacrificing durability, which is especially valuable in compact heat pumps and integrated cooling systems.

Flow pattern also contributes to performance. In many coaxial designs, counterflow arrangement is used so that the two fluids move in opposite directions. This improves the temperature approach and helps the unit achieve efficient heat transfer within a relatively small footprint. Good thermal performance is important, but in real-world applications it has to come together with material strength, leak resistance, and manufacturing quality. A corrosion-resistant exchanger that performs poorly is not enough, and an efficient exchanger that fails early is not acceptable. The value of this design is that it aims to provide both.

For systems using seawater or mineral-rich water, maintenance concerns are always part of the picture. Fouling, scaling, and corrosion can shorten exchanger life and reduce efficiency. A titanium inner tube helps address one of the biggest concerns: long-term resistance to aggressive water chemistry. That makes this type of exchanger especially suitable for applications where service access may be difficult or where users want to reduce the risk of premature leakage.

This design is also well suited for customized manufacturing. Different projects may require different tube diameters, coil lengths, connection types, refrigerants, pressures, and capacities. Some applications focus on compact residential or commercial heat pumps, while others involve industrial chillers or marine cooling systems with more demanding operating conditions. A custom stainless steel outer tube and titanium inner tube coaxial evaporator or condenser can be built according to the actual duty instead of relying on a general-purpose model.

From a long-term operating perspective, this type of heat exchanger offers clear value. It supports stable refrigeration performance, resists corrosion in harsh water environments, and fits well into systems where space and reliability both matter. For engineers and equipment manufacturers, it is a practical answer to one of the most common challenges in water-side heat exchange: how to achieve both efficiency and durability when the fluid itself is aggressive.

A stainless steel outer tube titanium inner tube coaxial evaporator and condenser is therefore more than a compact heat exchanger. It is a purpose-built solution for demanding water applications where ordinary materials may not be enough. With the right design and manufacturing quality, it can deliver dependable service in seawater heat pumps, marine HVAC systems, industrial cooling equipment, and other corrosion-sensitive environments for many years.
