Can The Fin Spacing of An IQF Evaporator Be Adjusted?

No, fin spacing cannot be modified after the evaporator coil is manufactured. It is a fixed structural parameter determined during production.

Why fin spacing is unchangeable post-production

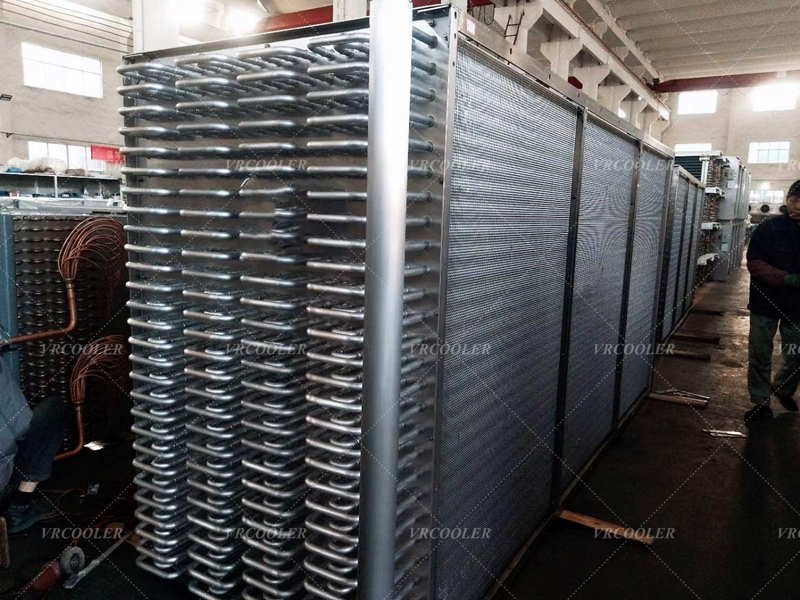

IQF evaporator coils are made by mechanically expanding copper/stainless steel tubes through pre-stamped fin sheets.

- Fins are tightly locked onto tubes by tube expansion force; there is no gap to slide or shift fins.

- Any attempt to bend, pry or pull fins apart will:

1. Crack the tube-fin contact, raising thermal resistance and dropping cooling performance;

2. Cause refrigerant leakage;

3. Deform fins permanently, creating uneven airflow and worse frost blockage.

- Even partial fin straightening cannot widen the overall consistent fin pitch of the whole coil.

Two available solutions if existing fin spacing mismatches your product

Solution A: Custom new coils with target fin spacing (Recommended)

Manufacturers like [cstheatexchanger.com] design coils with dedicated pitch before production:

- 4–6 mm: Low-moisture dry produce

- 8–10 mm: Cheese, diced lean meat, fish fillets

- 10–12 mm: Shrimp, squid, whole chicken

- 12–16 mm: High-fat beef, pork ribs, heavy-humidity seafood

Gradient variable fin spacing (wider at air inlet, narrower at outlet) can also be pre-fabricated on demand.

Solution B: Auxiliary operational adjustments to offset improper fin pitch

If you cannot replace the coil temporarily:

1. Install EC fans with adjustable low-speed operation to reduce water vapor carryover;

2. Upgrade to hot gas demand defrost (temperature/differential pressure trigger) to shorten frost downtime;

3. Increase frequency of high-pressure food-grade cleaning to clear grease/salt buildup between narrow fins;

4. Add air curtains at tunnel doors to cut humid warm air infiltration.

Partial fin removal is NOT a viable adjustment

Cutting out every other fin to widen gaps will:

- Severely reduce total heat exchange area and freeze throughput;

- Destroy uniform airflow distribution across the coil;

- Lead to uneven frosting and inconsistent product freezing quality.
