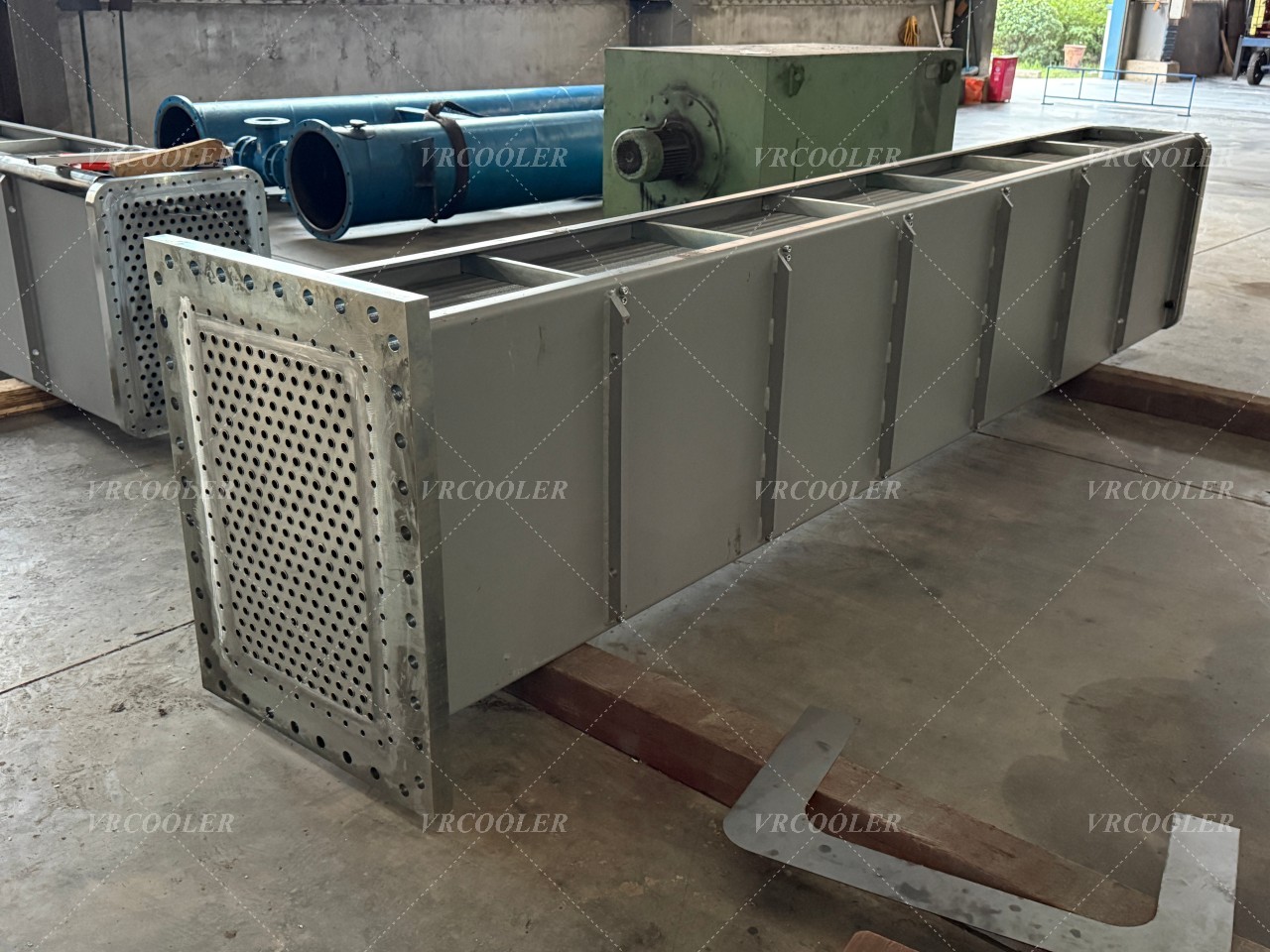

Hydrogen Gas Cooler for AC Turbogenerator Applications

Large AC turbogenerators operate under heavy electrical and thermal loads, which means heat removal is one of the most important parts of the entire machine design. If that heat is not controlled properly, winding temperature rises, insulation life shortens, efficiency drops, and the risk of forced shutdown increases. That is why the hydrogen cooler is such a critical component in hydrogen-cooled AC turbogenerators. It helps maintain the internal gas temperature at a stable level and supports safe, continuous generator operation.

In hydrogen-cooled generators, hydrogen gas is circulated inside the casing as the cooling medium. Compared with air, hydrogen offers better heat transfer performance and lower windage loss, which makes it especially suitable for large high-speed turbogenerators. But even with these advantages, the hydrogen still absorbs a large amount of heat from the stator, rotor, and internal generator components during operation. The job of the hydrogen cooler is to remove that absorbed heat and transfer it to a secondary cooling medium, usually water.

The basic working principle is straightforward. Hot hydrogen gas passes across the cooler surface, while cooling water flows inside the tubes. Heat moves from the hydrogen side to the water side, lowering the gas temperature before it continues circulating through the generator. This continuous cycle helps keep the internal operating temperature under control. In a large AC turbogenerator, that thermal stability is essential not only for performance, but also for equipment life and plant reliability.

A hydrogen cooler used in an AC turbogenerator must meet more demanding requirements than an ordinary industrial heat exchanger. The unit must provide efficient heat transfer while also maintaining a very high level of sealing integrity. Because hydrogen is a very light gas, leakage control is extremely important. The cooler therefore has to be designed with strong tube-to-tube sheet joints, dependable sealing structure, and materials that can perform reliably over long operating periods. In generator service, thermal efficiency and leak prevention are equally important.

Cooling performance directly affects generator output and reliability. When the hydrogen cooler works properly, internal gas temperature remains within the required range, which helps protect winding insulation and other critical components from overheating. Stable temperature also supports more consistent generator loading. If the cooler loses efficiency because of fouling, corrosion, leakage, or insufficient water flow, the generator may have to operate at reduced load or face a higher risk of trips. For power plants and industrial facilities, that is not a minor issue. It can affect overall production and plant economics.

Material selection is another important part of hydrogen cooler design. In many applications, the tube side may use copper alloys, stainless steel, or other corrosion-resistant materials depending on water quality and project requirements. The water side must resist scaling and corrosion, while the gas side must maintain long-term structural integrity in the hydrogen environment. In some projects, double-tube or leak-monitoring designs are preferred for added operating security, especially in critical generator applications where prevention of cross-contamination between water and hydrogen is a major concern.

AC turbogenerators are used in thermal power plants, combined cycle stations, industrial captive power systems, and other heavy-duty generation applications. In all of these cases, the hydrogen cooler is part of the generator’s core thermal management system. Although it may appear to be only one internal component, its role is much larger. A properly designed cooler helps the machine run at the intended output, supports lower thermal stress, and contributes to longer maintenance intervals. In other words, it protects both performance and asset life.

Another reason hydrogen coolers matter is serviceability. Over time, cooling water quality, deposits, and normal aging can affect heat exchanger performance. A cooler designed for easier inspection, cleaning, and replacement brings clear value during maintenance shutdowns. In many retrofit or replacement projects, plant operators are not only looking for a unit that matches the original dimensions, but also one that improves durability, leak resistance, and thermal efficiency. That is why custom manufacturing and OEM replacement capability are so important in the generator cooling field.

For operators of AC turbogenerators, the value of a reliable hydrogen cooler becomes especially clear during continuous high-load operation. The generator may be expected to run for long hours with very limited tolerance for thermal instability. Under those conditions, the cooler is not simply assisting the machine. It is helping preserve the safe operating envelope of the generator itself. Good hydrogen cooling supports dependable electrical output, while poor cooling can quickly become a limitation.

A hydrogen cooler for AC turbogenerators is therefore much more than a conventional water-cooled heat exchanger. It is a precision cooling component designed for one of the most demanding duties in rotating electrical equipment. By removing heat from the circulating hydrogen and maintaining stable internal gas temperature, it helps protect generator windings, improve operational reliability, and support long-term performance in critical power generation applications.

For utilities, EPC contractors, and maintenance teams, choosing the right hydrogen cooler means choosing a component that directly affects generator safety and efficiency. When properly designed and manufactured, it becomes a dependable part of the generator’s long-term operating success.
