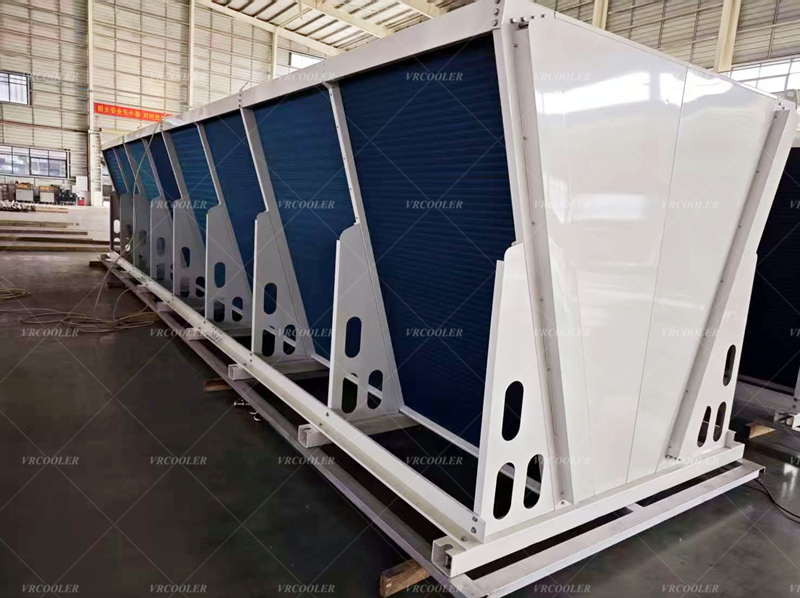

Fluid Cooler Used in ORC Waste Heat Recovery Systems

In many industrial plants, a large amount of energy disappears into the air every day in the form of unused heat. Exhaust gas from engines, hot process air, thermal oil loops, kiln flue gas, and other high-temperature streams often carry valuable thermal energy that can still be converted into useful power. This is where an Organic Rankine Cycle, or ORC, becomes attractive. An ORC system can recover low-grade or medium-grade waste heat and turn it into electricity. But for the cycle to work efficiently and reliably, one component is especially important on the cooling side: the fluid cooler.

A fluid cooler in an ORC waste heat recovery system is used to remove heat from the working fluid after it passes through the expander or turbine. In simple terms, the ORC process needs a heat source to vaporize the organic working fluid, and it also needs a cooling source to condense that vapor back into liquid so the cycle can continue. The fluid cooler handles this heat rejection step. Without stable cooling, the condensing temperature rises, the back pressure increases, and the entire ORC unit loses efficiency. In some cases, poor cooling performance can even limit power output or cause unstable system operation.

Compared with traditional water-intensive cooling methods, fluid coolers are often selected because they provide a practical and economical solution for sites where water is limited, expensive, or difficult to manage. Many ORC installations are located in remote industrial plants, cement factories, steel mills, geothermal projects, biomass power stations, gas engine facilities, and waste heat recovery units where water availability is not guaranteed. In these situations, an air-cooled fluid cooler can offer a cleaner and simpler approach. It reduces dependence on cooling towers, avoids continuous water consumption, and eliminates problems such as scaling, drift, and water treatment requirements.

The role of the fluid cooler becomes even more important when the ORC system is designed for long operating hours. Waste heat recovery projects are usually justified by energy savings over many years, so reliability is not just a technical detail; it is part of the project economics. A well-designed fluid cooler helps maintain the condenser temperature within the required range, supports stable turbine performance, and protects the overall efficiency of the ORC package. When the cooling section is undersized or poorly matched to the process, the ORC unit may still run, but not at the level the owner expected.

In an ORC waste heat recovery system, the fluid cooler is typically connected to the condenser loop. The hot vapor leaving the turbine enters the condenser, where heat is transferred to a secondary fluid or directly rejected depending on the system design. The fluid cooler then dissipates this heat to ambient air. The design may be dry, adiabatic, or hybrid, depending on climate conditions and project priorities. In hot and dry regions, adiabatic assistance may be added to improve summer performance. In areas where simplicity and low maintenance are the main concern, a fully dry cooler is often preferred.

Selection of the right fluid cooler depends on more than just thermal duty. Ambient temperature is one of the first factors engineers look at, because the ORC system must continue to operate even during the hottest period of the year. The temperature approach between the cooling fluid and ambient air directly affects the size of the unit. A tighter approach generally means a larger heat exchange surface and more fan power, while a more relaxed approach can reduce equipment size but may lower ORC efficiency. This balance is one of the key design decisions in any waste heat recovery project.

The cooling medium also matters. Some systems use water-glycol mixtures to prevent freezing and improve seasonal flexibility, especially in outdoor installations. Others may use treated water where freeze protection is not an issue. The fluid cooler must be selected with the correct tube material, fin design, header arrangement, and corrosion protection for the specific fluid and site environment. For coastal plants, chemical sites, and dusty industrial locations, protective coatings and suitable material selection are essential for long service life.

Another important consideration is control strategy. ORC systems do not always operate at a constant heat load. Waste heat availability may change with engine load, process conditions, or production schedules. The fluid cooler therefore needs to respond smoothly to changing conditions. Variable-speed fans are commonly used so the unit can adjust airflow based on condensing temperature or system pressure. This improves energy efficiency, reduces noise, and avoids unnecessary fan operation during cooler weather. Good control integration between the ORC skid and the fluid cooler helps the whole system run more efficiently.

From a mechanical perspective, fluid coolers for ORC applications are often designed for outdoor industrial duty. That means strong casing construction, reliable fan motors, vibration-resistant tube bundles, and easy access for maintenance. In many projects, the cooler must operate continuously in tough environments where dust, temperature swings, and weather exposure are part of daily life. Maintenance-friendly design is therefore a real advantage. Simple access to motors, fans, headers, and coil surfaces can reduce downtime and make routine inspection much easier for plant operators.

In waste heat recovery projects, the economic value of a fluid cooler is sometimes underestimated because it is seen only as a supporting component rather than a power-producing one. In reality, its influence on system performance is significant. The better the heat rejection side is managed, the more effectively the ORC can convert waste heat into electricity. A stable and properly sized cooler helps the plant recover more usable power, improve annual energy savings, and protect the long-term return on investment.

Fluid coolers are widely used in ORC systems connected to gas engines, biomass boilers, geothermal heat sources, industrial exhaust streams, and thermal oil waste heat loops. In engine-based projects, the recovered heat may come from jacket water, exhaust gas, or other hot streams, while the ORC converts that heat into additional electrical output. In industrial process plants, the ORC may capture energy that would otherwise be lost through flue gas or hot liquid discharge. In all of these cases, the fluid cooler supports the final step that makes continuous circulation possible.

For project owners, choosing the right fluid cooler is not just about cooling capacity on paper. It is about matching the cooler to the real operating profile of the ORC system, the local climate, the plant layout, and the maintenance expectations of the site. A properly engineered solution can improve condensing stability, reduce operating costs, and help the waste heat recovery system deliver dependable value year after year.

As more industries look for practical ways to cut emissions and improve energy efficiency, ORC waste heat recovery systems are becoming more common. And behind every stable ORC installation, there is a cooling solution doing essential work in the background. The fluid cooler may not be the most visible part of the system, but it plays a decisive role in turning wasted thermal energy into useful power.
