Evaporators for Cooling And Freezing

Evaporators in cooling and freezing systems are vital heat exchangers that absorb ambient heat by converting liquid refrigerant into gas. They are categorized by their fin spacing and operating temperature: cubic air coolers are used for general cold storage, while blast freezers provide rapid cooling.

Core Types of Evaporators

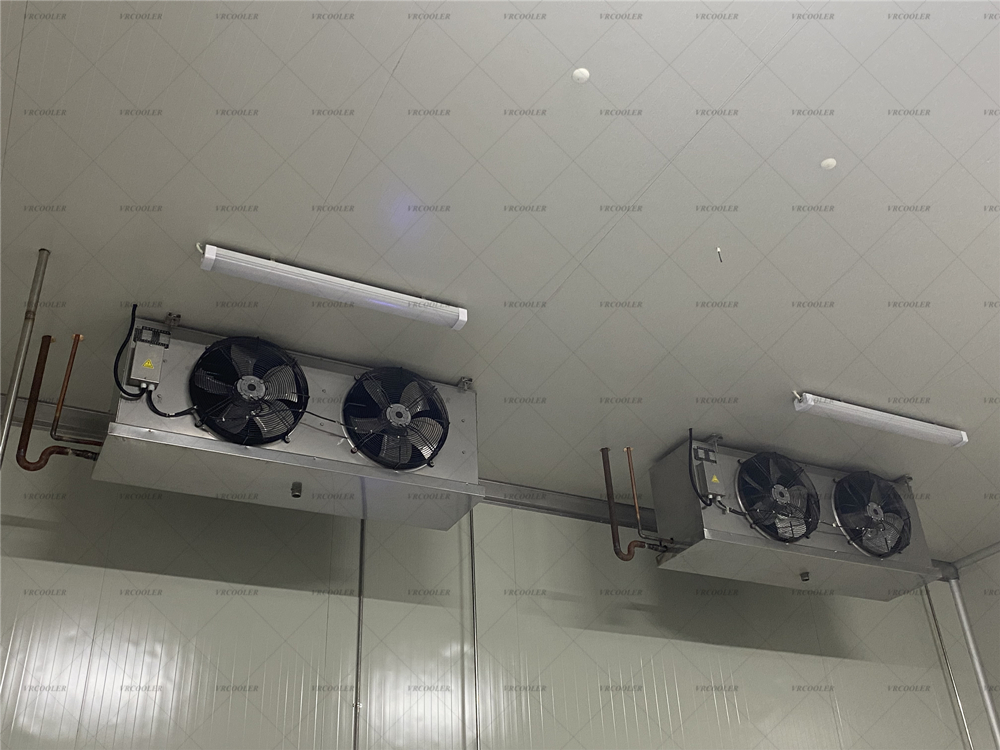

Cubic Air Coolers: The standard evaporator for commercial cold rooms, equipped with fan systems and copper tubing designed to circulate air uniformly.

Box & Ceiling Evaporators: Ideal for smaller storage rooms or low-profile areas, utilizing gravity or directed airflow to maintain consistent temperatures.

Blast Freezers / Tunnel Evaporators: Designed for industrial, high-capacity environments (such as meat or vegetable processing). They use high-pressure airflow to rapidly drop product temperatures.

Choosing the Right Fin Spacing

The distance between evaporator fins (pitch) determines how quickly a system freezes up and requires defrosting:

4mm to 6mm: Used for standard cooling and medium-temp storage (2°C to 8°C).

7mm to 9mm: Best for general freezing and storage (-18°C).

9mm to 12mm: Essential for deep-freezing or rapid blast-freezing applications, where heavier frost accumulation is common and airflow must be maintained.

Key Operational Factors

Heat Transfer: Liquid refrigerant enters the evaporator at low pressure and boils. As it evaporates, it absorbs the thermal energy (heat) from the air or space.

Defrosting Cycles: Evaporators used in freezing environments build up frost on the coils. Systems require automatic electric, hot gas, or water defrost mechanisms to clear the fins and maintain efficiency.

Refrigerant Choice: Systems operate using either primary refrigerants (like Freon/HFCs, or ammonia in industrial settings) or secondary refrigerants (like glycol).
