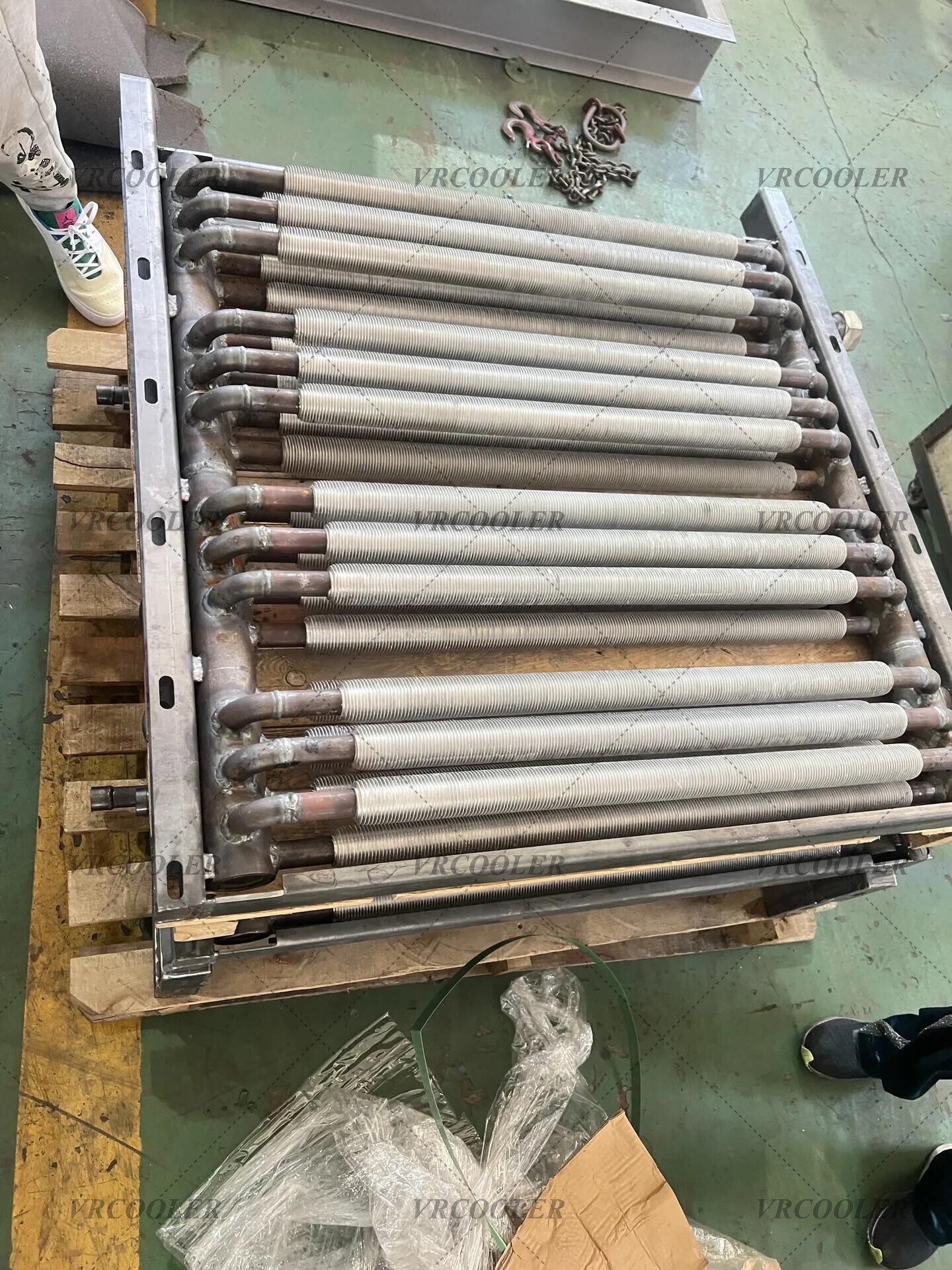

Are vacuum furnace heat exchangers custom-designed?

Vacuum furnace heat exchangers are almost always custom-designed because their performance, materials, and geometry must match the specific furnace, process requirements, and vacuum environment. Off-the-shelf designs rarely meet the extreme conditions in vacuum heat treatment.

1. Furnace Geometry and Space Constraints

• Heat exchanger size and shape must fit within the furnace or auxiliary cooling loop

• Orientation (horizontal, vertical, or angled) affects flow and thermal efficiency

• Compact designs may be needed for smaller furnaces or modular systems

2. Process-Specific Thermal Duty

• Cooling or heating rates vary depending on quenching speed, tempering, or annealing requirements

• Heat exchanger must handle high thermal loads without compromising vacuum integrity

3. Material Selection for Atmosphere Compatibility

• Stainless steel, nickel alloys, or copper alloys may be chosen depending on:

• Maximum operating temperature

• Aggressiveness of furnace atmosphere (hydrogen, nitrogen, inert gases)

• Cooling medium (water, thermal oil, glycol)

4. Vacuum Integrity Requirements

• Tube bundles, headers, and connections must be brazed or welded to prevent leaks

• Custom seals and gaskets ensure vacuum-tight operation

• High-precision fabrication is needed to maintain leak rates below 10⁻⁶ mbar·l/s

5. Cooling Medium and Circuit Design

• Some furnaces use water, thermal oil, or gas loops depending on quench and cooling requirements

• Tube diameter, circuiting, and flow rate must be designed to optimize heat transfer and minimize pressure drop

6. Integration with Furnace Controls and Safety Systems

• Sensors, flow meters, and pressure monitors are positioned based on furnace layout

• Integration with automated cooling, quench, or heat recovery loops

7. Fouling and Maintenance Considerations

• Custom design allows for easy cleaning and inspection of high-temperature or corrosive cooling paths

• Coatings or alloy choices reduce scaling or corrosion, extending operational life

Summary:
Vacuum furnace heat exchangers are custom-engineered to meet specific thermal loads, vacuum conditions, space constraints, and material compatibility, ensuring reliable operation and precise process control. Standard or off-the-shelf units are almost never suitable for industrial vacuum heat treatment.
