Aluminium Core Air to Air Heat Exchanger | CSTHEATEXCHANGER

At CSTHEATEXCHANGER, we design and manufacture precision-engineered all-aluminium core air-to-air heat exchangers (cross-flow, counter-flow, and cross-counterflow plate heat recovery cores) for commercial Air Handling Units (AHU), Heat Recovery Ventilators (HRV), data center Indirect Evaporative Cooling (IEC) systems, and industrial process waste heat recovery. Aluminium core plate heat exchangers provide the ultimate combination of high thermal conductivity (k≈220 W/m⋅Kk≈220 W/m⋅K), Class A1 non-combustible fire safety, zero cross-leakage (<0.1%), and complete resistance to mold, bacteria, and humidity degradation. CSTHEATEXCHANGER aluminium heat recovery cores deliver certified sensible thermal efficiencies up to 75% in crossflow and up to 92%+ in counterflow configurations, recovering massive thermal energy while keeping supply and exhaust air streams 100% physically separated.

Why Modern Ventilation & Industry Demands Aluminium Plate Cores

Building energy codes worldwide (ASHRAE Standard 90.1, EU Ecodesign Directive 1253/2014, and IECC) mandate high-efficiency heat recovery in all continuous fresh air ventilation and industrial exhaust systems.

While membrane, paper, or plastic heat exchanger cores exist for light residential use, commercial, institutional, and industrial facilities demand the superior physical and thermal properties of all-aluminium construction:

• Massive Thermal Conductivity Superiority: Aluminium possesses a thermal conductivity (k≈200 to 230 W/m⋅Kk≈200 to 230 W/m⋅K) that is over 1,000 times higher than polymer plastics (k≈0.15 W/m⋅Kk≈0.15 W/m⋅K) and cellulose paper (k≈0.05 W/m⋅Kk≈0.05 W/m⋅K). This high conductivity enables rapid sensible heat exchange across ultra-thin plate walls, allowing compact core dimensions with minimal aerodynamic drag.

• Strict Non-Combustible Fire Safety (EN 13501-1 Class A1): Commercial HVAC codes, hospital ventilation standards, and industrial fire regulations strictly prohibit flammable polymer or resin heat exchanger cores. Solid aluminium cores are completely non-combustible, emit zero toxic smoke, and withstand continuous operating temperatures up to 100°C (with high-temperature welded models rated to 250°C).

• Hygienic Sterility & Mold Resistance (VDI 6022 & DIN 1946-4): Cellulose and membrane cores absorb moisture, fostering dangerous mold, mildew, and bacterial colonization over time. CSTHEATEXCHANGER smooth, non-porous aluminium plate cores cannot harbor biological growth, are fully washable with high-pressure water, and endure aggressive clean-in-place (CIP) disinfectant washdowns.

• Zero Cross-Contamination (100% Air Stream Isolation): In applications with odors, hospital pathogens, chemical fumes, or industrial VOCs, supply and exhaust air streams must remain strictly separated. CSTHEATEXCHANGER precision-crimped or laser-welded plate seams guarantee zero air crossover (<0.1% leakage at differential pressures up to 2,000 Pa).

How CSTHEATEXCHANGER Aluminium Core Heat Exchangers Excel

At CSTHEATEXCHANGER, we engineer our aluminium plate cores with high-precision micro-corrugated forming, five-layer hemmed airtight edge sealing, and corrosion-resistant alloy selections:

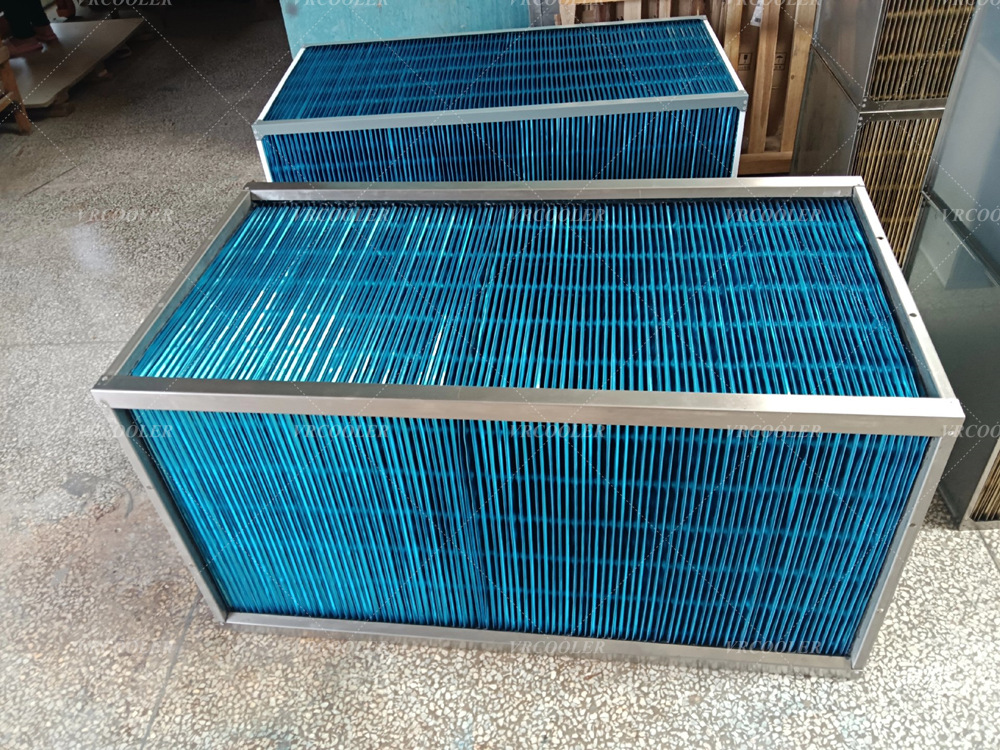

            CSTHEATEXCHANGER® ALL-ALUMINIUM AIR-TO-AIR HEAT EXCHANGER

     Warm Exhaust / Indoor Stale Air Stream (20°C - 80°C)
                                    │
                                    ▼
   ┌────────────────────────────────────────────────────────────────────────┐
   │ Heavy-Gauge Aluminum Alloy / Aluzinc Structural Casing Frame           │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ◄◄◄ Cold Outdoor Fresh Air Stream (-20°C to 10°C)                      │
   │                                                                        │
   │ ══════════════════════════════════════════════════════════════════════ │
   │ High-Purity Aluminum Foil Plates (8011 / 3003 Alloy: 0.12 mm - 0.25 mm)│
   │ Micro-Embossed Dimpled / Wavy Waveforms for High Boundary Turbulence   │
   │ Five-Layer Folded Hemmed Seams / Laser-Welded Gas-Tight Edges          │
   │ Hydrophilic / Epoxy Anti-Corrosion Surface Protection                  │
   │ ══════════════════════════════════════════════════════════════════════ │
   │                                                                        │
   │ ►►► Preheated Fresh Supply Air to Indoor Space (14°C - 18°C)           │
   ├────────────────────────────────────────────────────────────────────────┤
   │ Cooled Exhaust Air Discharged Outdoors (-5°C to 5°C with Condensate)   │
   └──────────────────────────────────┬─────────────────────────────────────┘
                                      │
                                      ▼
             Continuous Sensible Heat Recovery (Up to 92% Efficiency)
             (Zero Cross-Leakage · Class A1 Non-Combustible · Washable)

1. High-Turbulence Micro-Embossed Plate Waveforms

CSTHEATEXCHANGER plates feature precision-pressed dimpled, herringbone, or undulating wavy surface corrugations. These micro-structures disrupt air boundary layers, generating high-shear turbulent flow even at low face velocities (1.0 to 2.5 m/s1.0 to 2.5 m/s). This maximizes convective heat transfer coefficients while maintaining low airside pressure drops (ΔP<120 to 250 PaΔP<120 to 250 Pa).

2. Five-Layer Folded Hemmed Seams & Robotically Welded Edges

Plate edge sealing is the critical barrier against air leakage:

• Five-Layer Folded Sealing: Automated high-speed folding machinery crimps adjacent plate edges with five interlocking folds reinforced with structural high-temperature sealant, delivering burst pressure containment up to 2,500 Pa with less than 0.05% leakage.

• All-Welded Industrial Cores: For high-temperature or hazardous chemical processes, CSTHEATEXCHANGER robotically laser-welds all plate edges into a monolithic, 100% hermetically sealed metallic block rated for continuous duty up to 250°C.

3. Multiple Flow Topologies for Every Energy Target

• Cross-Flow (Crossflow) Cores: Compact, cost-effective square geometries achieving 55% to 75% sensible thermal efficiency with perpendicular 90∘90∘ duct arrangements.

• Counter-Flow (Counterflow) Extended Cores: Long-path counterflow channels where supply and exhaust streams travel in opposite directions along extended parallel plates, achieving industry-leading sensible recovery efficiencies up to 85% to 92%+.

• Dual Cross-Counterflow Modular Packages: Combining multiple crossflow cores in series to achieve ultra-high efficiency with flexible duct connection orientations.

4. Advanced Protective Surface Coatings

• Hydrophilic Blue Coating: Promotes smooth water film formation during winter exhaust condensation, allowing rapid gravity drainage down to drain pans without droplet bridging.

• Epoxy / E-Coat Anti-Corrosion Coating: Heavy protective resin coating providing certified resistance (>1,500 hours ASTM B117 salt spray) for swimming pool ventilation, coastal marine climates, and mild industrial chemical exhausts.

Primary Applications for Aluminium Core Heat Exchangers

• Commercial & Institutional Air Handling Units (AHU / HRV): Sensible energy recovery for schools, office towers, hospitals, shopping malls, and airport terminals.

• Data Center Indirect Evaporative Cooling (IEC): Large-scale aluminium heat exchanger cubes separating outdoor wet scavenging air from recirculating indoor white space server air with zero water or particulate crossover.

• Industrial Paint Spray Booths & Finishing Lines: Capturing exhaust air heat to preheat incoming fresh makeup air while guaranteeing zero solvent VOC recirculation.

• Battery Gigafactories & Electronics Cleanrooms: Non-outgassing, silicone-free aluminium cores maintaining dry-room conditions without airborne contamination.

• Swimming Pool & Indoor Aquatic Center Dehumidification: Epoxy-coated aluminium cores recovering sensible heat from warm, humid, chlorine-laden exhaust air.

• Outdoor Telecom & Battery Energy Storage (BESS) Enclosures: Compact air-to-air cooling modules isolating sensitive electronics from outdoor dust, humidity, and salt fog.

Technical Specifications & Manufacturing Standards

• Sensible Heat Recovery Efficiency:

  • Cross-Flow Topologies: 55% to 75%.

  • Counter-Flow Topologies: 75% to 92%+.

• Airflow Volume Capacity: 100 m³/h to 100,000+ m³/h per modular assembly.

• Plate Thickness Options: 0.12 mm, 0.15 mm, 0.18 mm, and 0.25 mm high-purity aluminum foil (Alloy 8011 / 3003).

• Plate Pitch / Spacing: 2.0 mm to 12.0 mm (Customized for clean commercial HVAC or dust-tolerant industrial exhausts).

• Operating Temperature Limits:

  • Standard Crimped Cores: -40°C to +100°C (-40°F to +212°F).

  • High-Temperature Welded Cores: -40°C to +250°C (-40°F to +482°F).

• Maximum Pressure Differential: Up to 2,500 Pa (25 mbar / 10 in. w.g.) with zero structural plate collapse.

• Standards & Certifications: Eurovent Certified Performance, AHRI Standard 1060, EN 308, DIN 1946-4, and ISO 9001.

Frequently Asked Questions — CSTHEATEXCHANGER Aluminium Core Heat Exchangers

Why is an aluminium core superior to a plastic or paper core in commercial buildings?

Aluminium is non-combustible (Class A1 fire rated), provides over 1,000x higher thermal conductivity, does not harbor mold or bacterial growth, is completely washable, and lasts for decades without embrittlement or degradation under UV, moisture, and temperature cycling.

How does CSTHEATEXCHANGER ensure zero cross-contamination between air streams?

Our plates are joined using precision five-layer interlocking folded seams with industrial elastic sealing compounds, or 100% robotically laser-welded edges. Every core is pressure-tested to ensure leakage rates remain under 0.05%–0.1%, completely preventing odor, pathogen, or VOC transfer.

Can CSTHEATEXCHANGER manufacture custom-sized replacement cores for existing AHUs?

Yes. We fabricate exact dimensional replacement aluminium cores matching existing face dimensions, plate lengths, and casing flange profiles for fast slide-in installation into any third-party air handling unit.

Specify Your Aluminium Core Air-to-Air Heat Exchanger with CSTHEATEXCHANGER

Contact CSTHEATEXCHANGER today with your ventilation and heat recovery specifications:

• Airflow Volume (m3/hm3/h or CFM) for Supply and Exhaust Streams

• Inlet Temperatures and Relative Humidity for Both Air Streams

• Flow Configuration Desired: Cross-Flow, Counter-Flow, or Modular Combination

• Maximum Allowable Pressure Drop (Pa / in. w.g.) & Target Efficiency (%)

• Dimensional Constraints: (Width × Height × Depth)

• Special Environmental Needs: Epoxy Coating (Swimming Pool/Coastal) or High Temperature (>100°C)

Our thermal recovery engineering team will provide detailed thermodynamic simulation reports (Eurovent / EN 308 verified), 3D CAD dimensional models, and factory-direct OEM pricing.
