Why Condenser Coil Leaks and Why Fins Corrode | Coastal Salt‑Air Corrosion Explained

Condenser coil refrigerant leakage is one of the costliest field failures for air‑cooled chillers, heat pumps and condensing units. In coastal regions, salt‑driven corrosion is the number‑one trigger for fin degradation and subsequent tube leaks. Even well‑sized coils can fail prematurely without proper material or surface protection.

Why Do Condenser Coils Leak?

Refrigerant leaks almost never happen out of nowhere; most start from surface damage that progresses through layers.

1. Coastal salt‑spray corrosion (dominant for seaside installations) Salt‑laden moist air settles on aluminum fins and copper tube surfaces. Salt electrolyte accelerates galvanic corrosion between dissimilar metals (aluminum fins and copper tubes). Pitting starts on fins, then attacks tube expansion joints and tube walls, forming tiny pin‑hole refrigerant leaks.

2. Galvanic / bimetallic corrosion Copper tubes paired with aluminum fins create a galvanic cell. When moisture plus salt or industrial pollutants sits between fin‑tube contact points, electrochemical reaction eats away metal. Corrosion spreads from fin root into copper tube joints.

3. Mechanical damage leads to secondary leakage Bent / crushed fins from shipping, installation or high‑pressure washing create local stress. Cracked fin roots abrade tube surfaces over vibration cycles and generate micro‑leaks.

4. Thermal cyclic fatigue Condenser coil cycles between hot running temperature and cool standby condition. Repeated expansion and contraction weakens tube‑expansion interfaces. Pre‑existing corrosion pits become crack initiation points and turn into leaks.

5. Manufacturing or system factors Poor tube expansion, defective brazing joints; sustained over‑pressure from wrong refrigerant charge or blocked airflow will accelerate crack opening at already‑corroded spots.

Why Fins Corrode in Coastal Areas

Standard tube‑fin coils use copper tubes + plain aluminum fins. Aluminum is chemically vulnerable to coastal marine atmosphere.

1. Salt (NaCl) deposits Sea breeze carries fine salt particles. Salt absorbs humidity from air and forms thin conductive salty water film covering fin surfaces. This film breaks down aluminum’s natural passive oxide layer. Pitting corrosion appears on fin surfaces.

2. Fin‑tube contact crevice corrosion Salt‑moisture trapped in tiny gaps where aluminum fins grip copper tubes. Low‑oxygen crevice zones speed up corrosion attack at fin collars. Fins turn white‑grey powdery, flake off gradually.

3. Corrosion propagation path

• Step 1: Aluminum fins develop white powdery corrosion spots.

• Step 2: Fin collars degrade, thermal contact with tubes is lost, heat rejection capacity drops.

• Step 3: Corrosion migrates to copper tube outer surface → pitting → pin‑hole refrigerant leak.

Important note: Fins themselves do not hold refrigerant. But corroded fins are an early warning sign; if ignored, corrosion will attack tubes and cause system‑down leakage.

Visible Warning Signs of Coastal Corrosion

• White / grey powdery residue on fin surfaces and fin collars

• Fin flaking, fin crumbling, fin‑tube separation

• Gradual system high‑pressure alarms, reduced heat rejection capacity

• Slow, hard‑to‑detect refrigerant loss

• Oil traces around coil indicating micro‑refrigerant leakage

Practical Solutions for Coastal Corrosion Conditions

1. Anti‑corrosion fin coatings Epoxy coating, phenolic coating on aluminum fins create barrier against salt mist. Widely used for seaside heat pump and chiller condenser coils.

2. Upgrade tube material for extreme sites

• Copper‑nickel (Cu‑Ni) tubes: excellent salt‑atmosphere resistance

• Stainless steel tubes SS304 / SS316: for heavy marine and chemical‑exposed locations

3. Maintenance best practice Periodic low‑pressure rinsing to wash off accumulated salt deposits; avoid high‑pressure jet washing which bends fins. Keep proper equipment ventilation.

4. Custom replacement coils VRCOOLER produces 1:1 replacement condenser coils. We follow your drawing or original coil dimensions and apply suitable coating or upgraded tube material for coastal corrosive environments.

Summary

Most condenser coil leaks in coastal locations originate from salt‑driven galvanic corrosion starting on aluminum fins. Salt‑moisture forms conductive film, attacks fin collars first, then propagates to copper tubes and creates pin‑hole leaks. Corroded fins are not just cosmetic damage — they are the early‑stage failure indicator. Select anti‑corrosion coating or premium tube materials for seaside projects to extend service life.

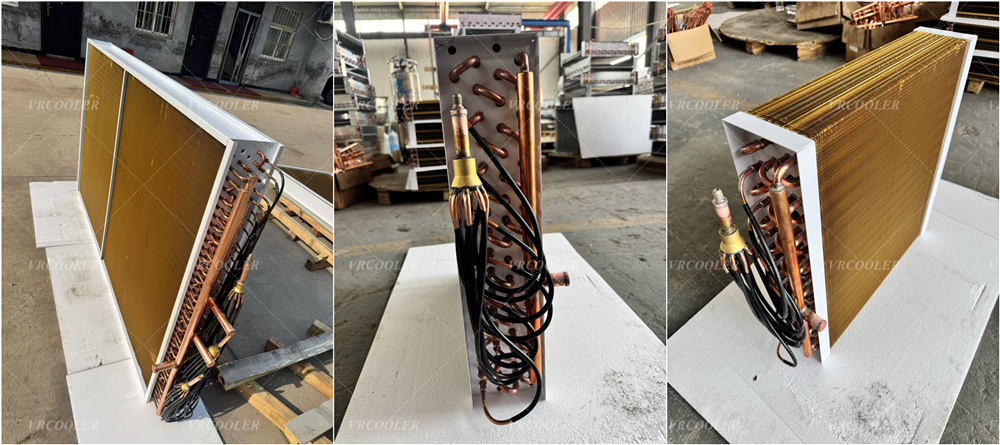

VRCOOLER (cstheatexchanger.com) designs and manufactures custom anti‑corrosion tube‑fin condenser and evaporator coils for coastal, industrial and harsh environments. Send your drawing or coil specifications for quotation.
