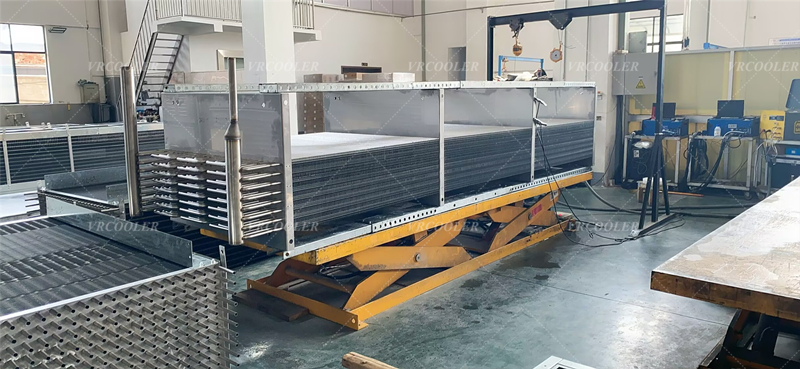

Replacement Evaporator Coil for Walk‑in Freezer | Custom Aftermarket Coil Solution

Walk‑in freezers are widely used in restaurants, grocery stores, food warehouses and seafood‑processing facilities. The evaporator coil works continuously under low‑temperature, high‑humidity conditions. Corrosion, refrigerant pin‑hole leaks or heavy frost‑related damage often make coil replacement unavoidable. Original OEM spare parts are frequently long‑lead‑time or discontinued. Custom aftermarket replacement evaporator coil becomes a practical solution for cold‑storage maintenance projects.

Common Signs That Walk‑in Freezer Evaporator Coil Needs Replacement

• Slow box temperature pull‑down, freezer cannot reach target low‑set‑point

• Heavy, uneven ice / frost buildup on coil surface even after normal defrost cycles

• Visible oil stains, white powdery corrosion on fins and tube joints (refrigerant leak indicator)

• System runs non‑stop, compressor over‑works, higher power consumption

• Detectable refrigerant loss; repeated leak‑repair cannot solve root failure

Special Design Requirements for Walk‑in Freezer Evaporator Coils

Walk‑in freezer runs at low‑temperature condition (typical‑18℃ ~‑25℃ box temperature). Its evaporator coil has different design priorities compared with air‑conditioning or chiller coils.

1. Wider fin spacing: Prevent frost bridging between fins. Narrow‑FPI coils will block airflow rapidly under continuous frosting.

2. Optimized refrigerant circuiting: Matched for low‑temperature suction pressure drop, guarantee proper super‑heat performance.

3. Compatible with electric defrost: Reserve installation space & interface for defrost heater rods.

4. Drain pan matching: Low‑temperature defrost melt‑water must drain smoothly; stainless‑steel drain pan is recommended for food‑grade applications.

5. Anti‑corrosion upgrade option: For seafood‑processing or coastal sites, select epoxy‑coated fins, Cu‑Ni or SS316 tube material to fight salt‑mist corrosion.

Two Ways We Make Your Replacement Coil

1. Replicate from old coil sample / field measurement photos If you have the failed original coil, send overall dimensions, tube diameter, row count, FPI, suction‑liquid pipe orientation, mounting hole position, defrost‑heater hole layout. We reverse‑engineer and produce 1:1 aftermarket replacement coil. Physical sample shipment is not mandatory; complete dimension list plus clear photos is enough for quotation.

2. Produce per customer technical drawing Supply 2D drawing with full geometry, circuit diagram, material specification and working‑condition parameters. Strictly follow drawing for manufacturing.

Customizable Parameters for Walk‑in Freezer Evaporator Coil

• Tube material: Copper tube / Cu‑Ni copper‑nickel / SS304 / SS316 stainless‑steel tube

• Fin: Bare aluminum / epoxy anti‑corrosion coated fin; wide‑FPI selection for anti‑frost

• Refrigerant compatibility: R404A, R507, R134a, R290 and other low‑temp refrigerants

• Accessories: Match defrost‑heater openings, mounting brackets, stainless‑steel drain‑pan

• Every coil passes pressure‑holding leak test before export packing

Typical Application Scenarios

• Restaurant & supermarket walk‑in freezer evaporator replacement

• Food‑warehouse cold‑storage unit cooler coil aftermarket spare

• Seafood‑plant walk‑in freezer, small blast‑freezer coil replacement

• Old refrigeration unit retrofit project when OEM spare parts are unavailable

Project Workflow

1. Submit old‑coil photos + dimensions OR drawing files

2. Engineering review, verify low‑temperature circuit design, suggest material upgrade if site is corrosive

3. Issue formal quotation

4. Production, pressure‑leak test, export‑safe packing

5. Delivery for on‑site installation

Important Practical Tips

1. Only copying outer dimension is not sufficient. Tube row number, FPI and refrigerant circuit layout directly decide cooling capacity and low‑temp‑system pressure‑drop performance.

2. For seafood‑plant or coastal salt‑air environment: do not use standard bare copper‑aluminum coil. Anti‑corrosion material upgrade extends service life significantly.

3. After new coil installation, complete system commissioning: check super‑heat, defrost cycle setting, drain‑pan drainage performance, to maximize coil service life.

Summary

When walk‑in freezer original evaporator coil leaks or corrodes, VRCOOLER(cstheatexchanger.com) delivers custom aftermarket replacement evaporator coils. We manufacture according to your old‑coil sample or drawings, with low‑temperature anti‑frost and optional anti‑corrosion configuration for food‑cold‑storage projects. Avoid long waiting times for hard‑to‑get OEM spare parts.
