Compare epoxy‑coated tube‑fin coils and galvanized coils, working principle, service life, failure modes, coastal salt‑spray performance, and correct application selection for chillers, heat pumps and AHU.
When specifying anti‑corrosion heat‑exchanger coils, many buyers confuse epoxy‑coated aluminum‑fin coils and galvanized (zinc‑coated steel‑fin / steel‑tube) coils. These two anti‑corrosion solutions follow totally different protection mechanisms, deliver different service‑life outcomes, and fit different working environments.
Important note for HVAC‑R industry: Most standard refrigeration coils use copper tubes + aluminum fins. Galvanized coils normally refer to carbon‑steel tube‑fin heat exchangers with zinc sacrificial layer. Galvanizing is rarely applied on copper‑aluminum refrigerant coils; galvanization is widely used for coil frames, casings, mounting brackets instead.
Epoxy paint forms a dense continuous polymer film covering fin and tube surfaces. It works as a physical barrier: blocks salt moisture, chloride ions and polluted air from touching base metal. No sacrificial reaction happens.
Main stream: copper tube + epoxy pre‑coated aluminum fins for refrigerant evaporator / condenser coils.
Failure trigger: coating scratch, chip, pinhole. Once substrate is exposed, local galvanic corrosion starts at damaged spots.
Hot‑dip galvanizing applies zinc layer over carbon‑steel substrate. Zinc is more electro‑chemically active than steel. When coating gets scratched, zinc corrodes first to protect underlying steel (sacrificial anode protection).
Main stream: carbon‑steel tube + galvanized steel fins, mostly for water‑side coils, process air coils, non‑refrigerant heat exchangers.
Not common for DX refrigerant coils (steel tube cannot match refrigerant system pressure‑resistance and heat‑transfer performance of copper tube).
Mechanical scratch during shipping, installation or high‑pressure washing breaks coating.
Salt‑ion penetrates micro‑pores of coating under long‑term coastal exposure.
Local pitting corrosion appears at coating defect points; gradually spreads to copper tube, creates refrigerant pin‑hole leak.
Visible symptom: isolated white‑grey corrosion spots, not uniform whole‑surface rust.
Salt‑spray / acid condensate consumes zinc sacrificial layer gradually (white‑rust).
After zinc is gone, base steel substrate starts generating red rust; rust spreads underneath remaining zinc coating.
Steel tube / fin rusts through, causes leakage.
Warning: Galvanized surface cannot tolerate acidic cleaning chemicals; acid will dissolve zinc rapidly.
Epoxy‑coated coil: Very small heat‑transfer penalty (<1‑3 % for well‑formulated factory e‑coat epoxy). Maintains high heat‑exchange efficiency; compatible with refrigerant DX coils (copper tube design).
Galvanized steel coil: Steel has much lower thermal conductivity vs copper. Coil physical size must be larger for same capacity. Not suitable for refrigerant DX evaporator / condenser applications, more fit for chilled‑water / hot‑water air coils.
✅ Choose epoxy‑coated copper‑aluminum coil for:
Coastal seaside heat pump, air‑cooled chiller condenser / evaporator coils
Refrigerant‑circuit DX coils
Humid high‑corrosion‑risk HVAC‑R projects
✅ Choose galvanized steel coil for:
Inland non‑coastal water‑circulation air coils, AHU water coils
Non‑refrigerant process heat‑exchange
Cost‑sensitive ordinary ventilation projects
Do NOT select galvanized steel coils for salt‑spray coastal refrigerant coils.
✅ Extreme‑corrosion upgrade beyond both options: Upgrade tube material: stainless‑steel SS304 / SS316 or Cu‑Ni copper‑nickel tubes plus epoxy‑coated fins for heavy marine‑site projects.
Epoxy‑coated coil: Avoid high‑pressure jet washing which chips coating. Use neutral‑pH cleaning agent. Inspect coating scratch points annually.
Galvanized coil: Strictly avoid acidic or strong‑alkaline cleaners. Use only neutral‑pH wash solution. Watch for white‑rust signs.
Epoxy‑coated copper‑aluminum coils adopt barrier‑protection principle, delivering far better service‑life in coastal salt‑spray and humid HVAC‑R refrigerant‑coil scenarios. Galvanized coils rely on zinc sacrificial protection, work well for inland water‑medium steel coils but degrade quickly under chloride‑rich coastal conditions, and are not a proper substitute for DX refrigerant coils.

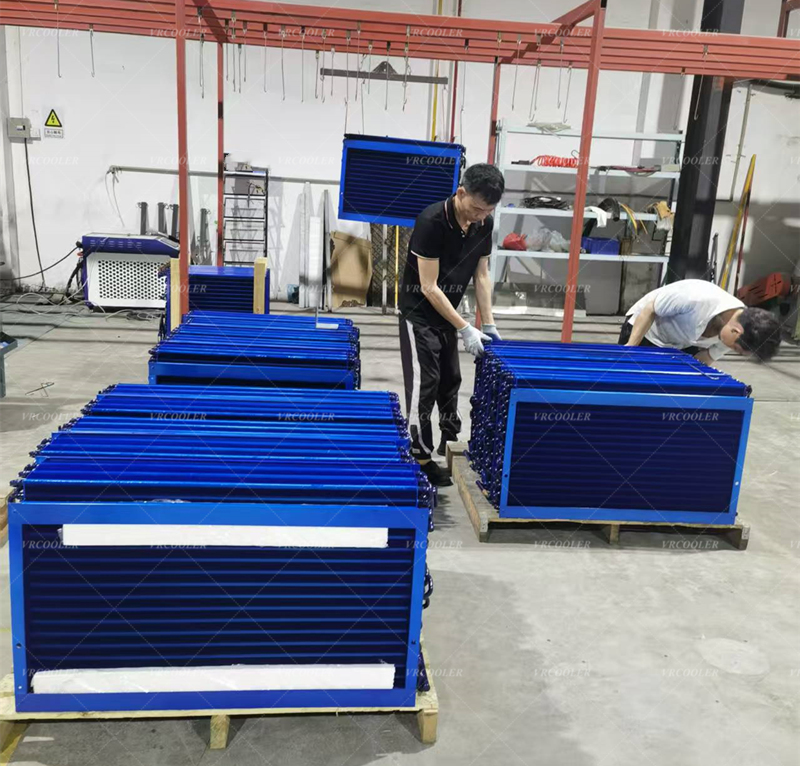

CST Heat Exchanger provides custom anti‑corrosion tube‑fin coils with epoxy‑coated fins, or upgraded SS / Cu‑Ni tube options for coastal and harsh‑environment projects. Send your drawing or old‑coil data for quotation.
