What Type of Heat Exchanger Is Used for HVAC?

What type of heat exchanger is used for HVAC?

In HVAC (Heating, Ventilation, and Air Conditioning) systems, several types of heat exchangers are commonly used, including:

Plate heat exchangers: These consist of a series of thin plates that provide a large surface area for heat transfer. They are efficient and compact.

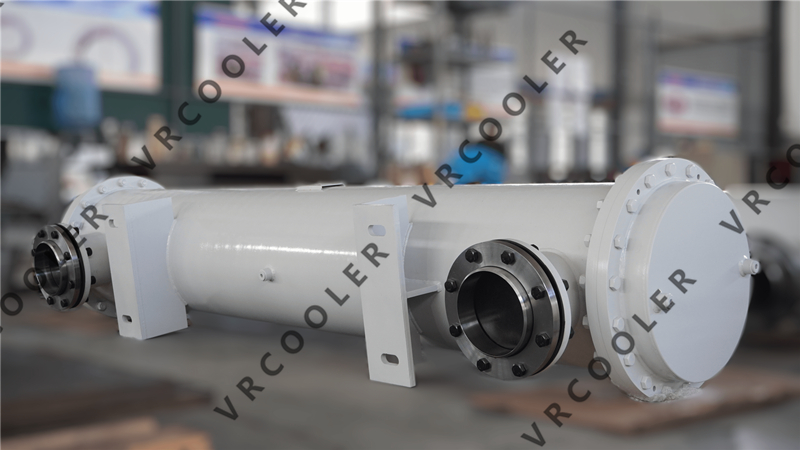

Shell and tube heat exchangers: Comprising a shell and tubes inside, they are suitable for various applications.

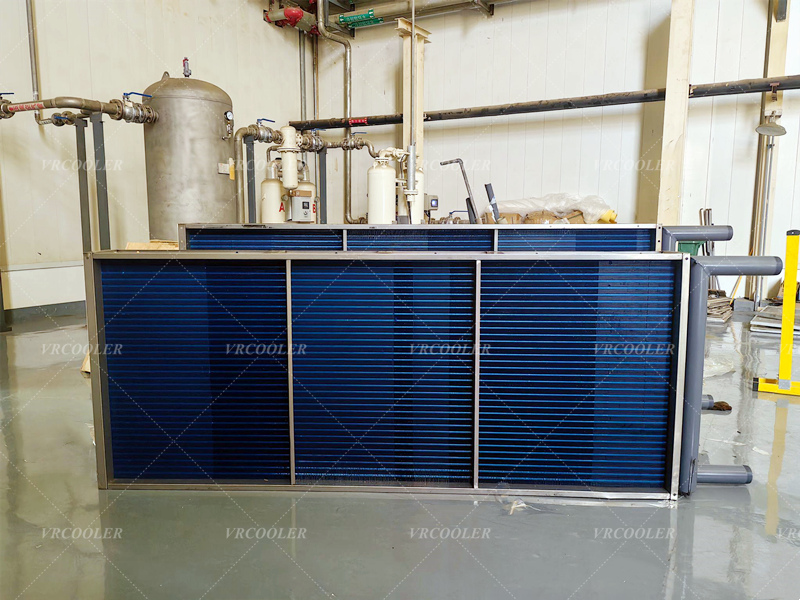

Fin-tube heat exchangers: Often used in air handling units, they have fins attached to tubes to enhance heat transfer.

Brazed plate heat exchangers: Offer high heat transfer efficiency and are suitable for smaller systems.

For example, in a central air conditioning system, a shell and tube heat exchanger may be used to transfer heat between the refrigerant and the water or air used for cooling or heating. In a ventilation system, a fin-tube heat exchanger can be used to recover heat from exhausted air and preheat incoming fresh air. Each type of heat exchanger has its specific advantages and is selected based on the requirements of the HVAC system.
