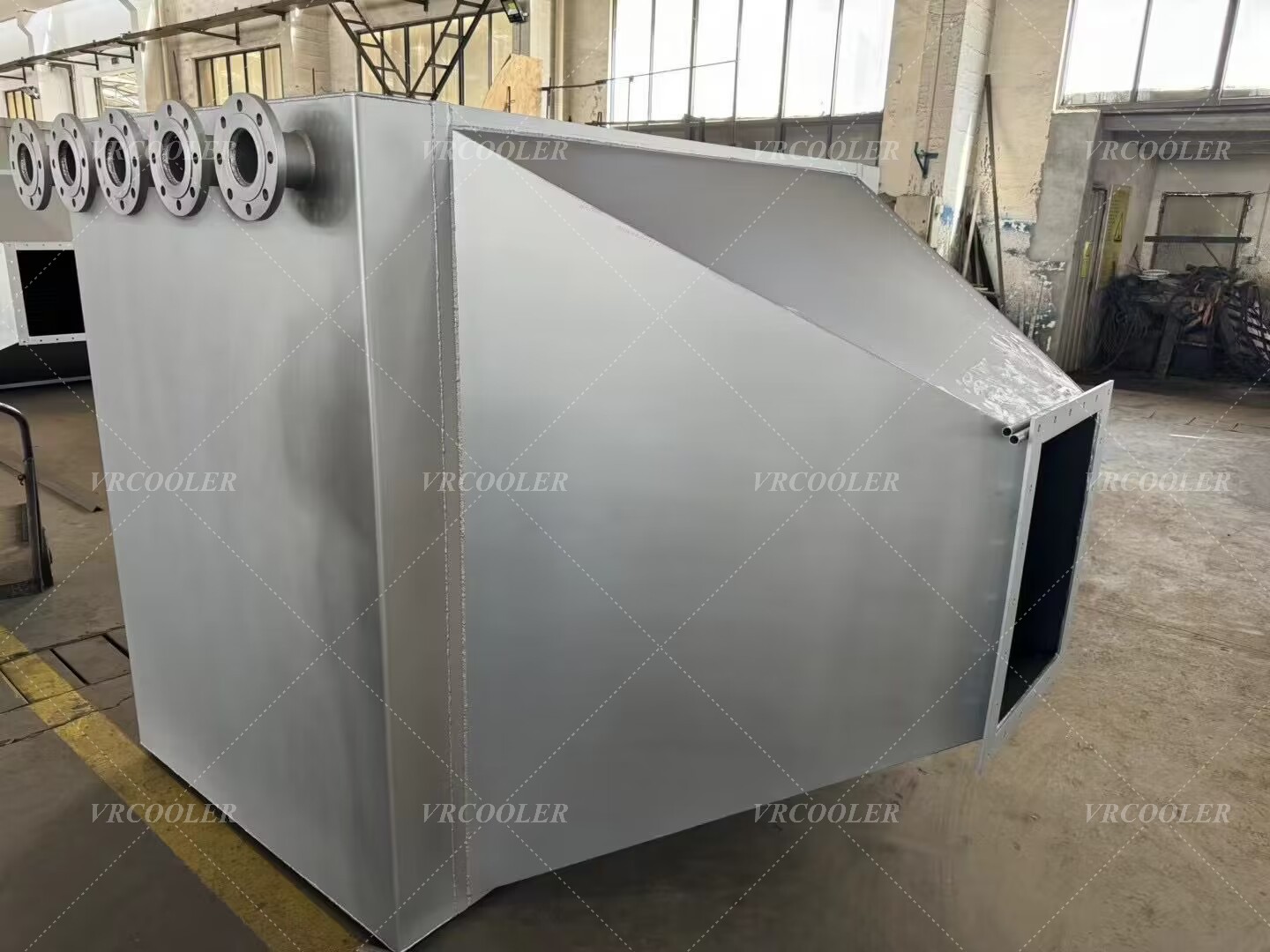

Flue Gas Heat Recovery Economizer for Waste Heat Recovery and Feed Water Heating

Flue gas heat recovery is one of the most practical ways to improve boiler plant efficiency without changing the main combustion system. In many plants, a large amount of usable energy leaves through the stack at a moderate temperature. That heat has already been paid for in fuel, but if it is not recovered, it simply disappears into the atmosphere. A properly designed economizer can capture part of that waste heat and transfer it into feed water, reducing fuel consumption and improving overall thermal efficiency.

In the project shown here, the goal is clear. The flue gas stream is available at about 97,599 Nm³/h, with an inlet temperature of 165°C, and the water side enters at 32°C. The customer would like to use this available heat to warm feed water while keeping the system layout compact and, most importantly, avoiding excessive restriction in the flue gas line. Because the economizer is planned after the ID fan, the design must recover heat efficiently without creating a pressure drop that interferes with gas flow to the chimney.

For this kind of application, a water-tube economizer with finned tubes is usually the right direction. The water flows inside the tubes, while the flue gas passes across the finned outer surface. This arrangement gives good heat transfer and is well suited to feed water heating duty. In cases where gas-side resistance must be minimized, the tube spacing should be kept wider than in a compact high-pressure-drop coil. Wide pitch tube arrangement, combined with carefully selected fin geometry, helps the gas pass through more freely while still providing enough surface area to recover useful heat.

That balance is important. In flue gas heat recovery, the best design is not always the one with the maximum number of fins or the tightest coil block. If the economizer becomes too dense, the pressure loss may become unacceptable, especially in a line connected to an existing chimney and draft system. In this project, the requirement to avoid chimney restriction is a key design condition, so the coil should be engineered for low gas-side pressure drop first, then optimized for heat duty within that limit.

The available water flow also affects the design. With a pump capacity of 100 m³/h, the system has enough circulation to absorb a meaningful amount of recovered heat, but the final outlet water temperature will depend on the selected heat transfer area, actual flue gas composition, allowable gas outlet temperature, and the real operating condition of the boiler. In practice, the hotter the gas can be cooled without reaching a corrosion risk zone, the more heat can be transferred into the water. This is why the flue gas outlet temperature cannot be chosen only for maximum recovery. It also has to stay above the safe minimum based on sulfur content, moisture, and acid dew point considerations.

That point is especially important in waste heat recovery from boiler exhaust. If the flue gas is cooled too far, condensation can occur on the tube surface or inside the downstream ducting. Depending on fuel quality, this can lead to acidic condensate, corrosion, fouling, and shorter equipment life. A well-designed flue gas economizer therefore does not just chase the lowest possible stack temperature. It aims for a practical outlet temperature that gives real energy savings while protecting the exchanger and the duct system.

The installation space provided, about 3000 mm in axial direction and 2500 mm in transverse direction, suggests that the economizer will need to be compact but not overly restrictive. This is the kind of application where custom engineering matters. Standard coils are rarely ideal for flue gas duty because every project has different gas flow, dust loading, water flow, duct size, and pressure-drop allowance. A custom unit can be designed around the real gas velocity, real space limitation, and required connection layout, giving the customer a better result than a generic off-the-shelf exchanger.

Material selection also deserves attention. On the water side, the exchanger must match the feed water quality and operating pressure. On the gas side, the materials must tolerate temperature, possible dust carryover, and the long-term corrosion environment. In many cases, carbon steel tubes with suitable fin construction may be economical, while in more demanding conditions upgraded materials or protective measures may be justified. Access for inspection and cleaning should also be considered, especially if the flue gas still contains ash or sticky particulate after upstream treatment equipment.

From an operating standpoint, a flue gas heat recovery economizer can bring several benefits. It can reduce fuel usage, improve the temperature of process or feed water, lower stack losses, and make better use of existing thermal energy in the plant. For factories that run long hours, even a moderate heat recovery improvement can turn into meaningful energy savings over time. That is why these systems are widely used in boilers, furnaces, thermal process lines, and other industrial exhaust applications.

The project information provided points toward a practical custom solution: a low-resistance, water-tube finned economizer designed for flue gas heat recovery after the ID fan, with wide tube spacing, efficient finned surface, and a layout suited to the available installation area. This kind of design can help recover valuable heat from the exhaust stream while maintaining safe and stable chimney operation.

Before final quotation and sizing, the most important engineering checks are the allowable pressure drop on the gas side, the target water outlet temperature, the maximum acceptable flue gas outlet temperature reduction, the dust condition after the upstream equipment, and the corrosion margin based on actual fuel and condensate risk. Once those points are confirmed, the economizer can be sized more accurately for both heat duty and long-term reliability.
