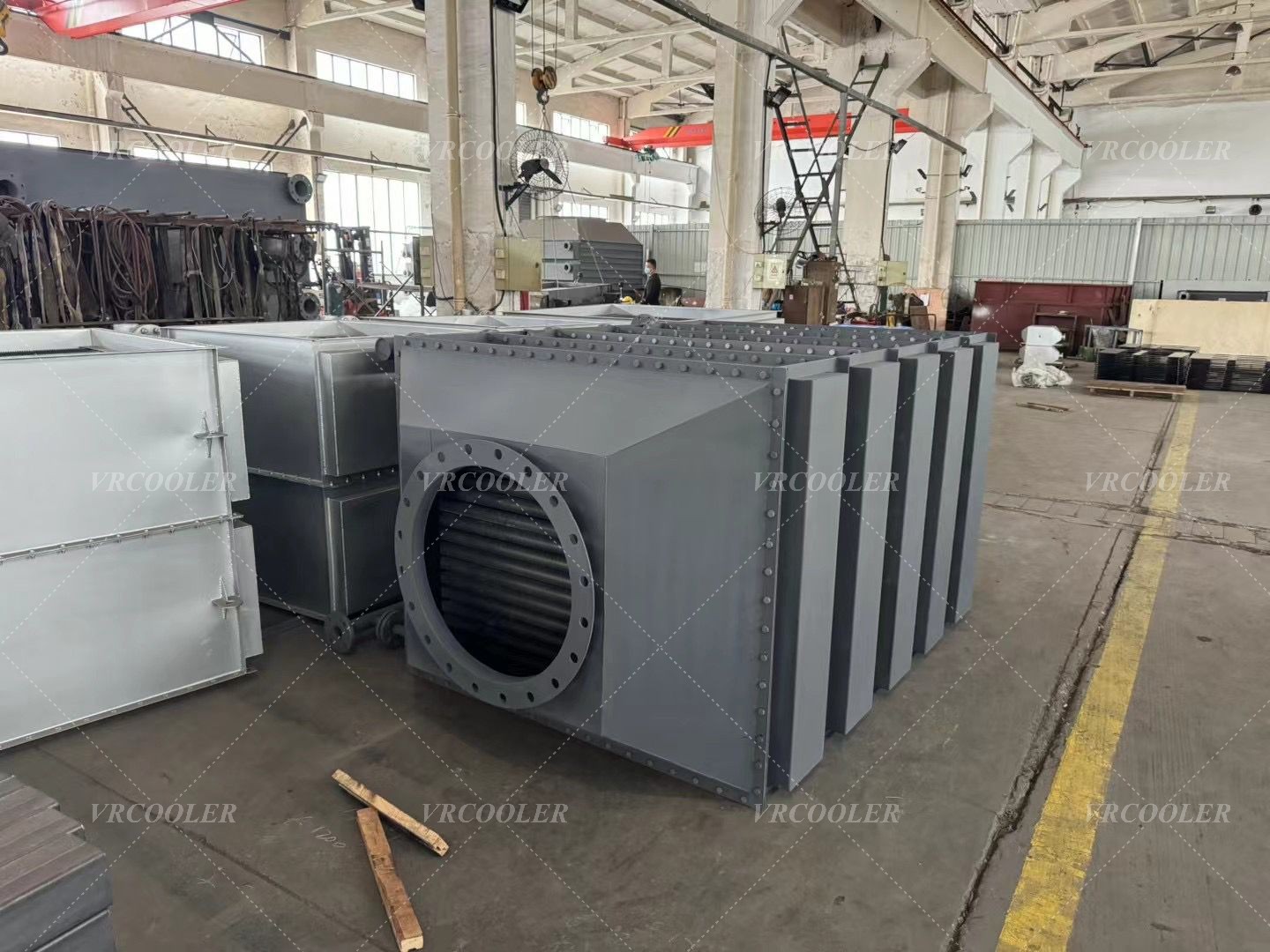

Boiler exhaust often carries a surprising amount of usable energy. In many plants, that heat is discharged through the suction fan and stack even though part of it could be recovered and reused inside the process. A fin-tube heat exchanger is a practical solution for this kind of application because it can transfer heat from high-temperature waste air into circulating water without requiring major changes to the existing boiler system.
In this project, the existing operating conditions already show strong potential for heat recovery. The suction fans handle about 50,000 m³/h of waste air, and the exhaust temperature is in the range of 210 to 230°C. On the water side, the condensate circulation pump provides 10 m³/h, with inlet water at around 70 to 75°C and a required outlet temperature of 100°C. Based on these conditions, the fin-tube heat exchanger should be designed as a custom waste heat recovery unit that matches the existing airflow and water circulation system while maintaining stable operation and acceptable pressure drop.
The main purpose of this heat exchanger is to recover sensible heat from the boiler exhaust and use it to raise the temperature of condensate water before it returns to the system. This reduces the amount of additional energy needed for water heating and improves the overall thermal efficiency of the plant. Instead of wasting the hot air stream, the system puts that energy back into useful service. For facilities that run continuously, even a moderate improvement in heat recovery can lead to meaningful fuel savings over time.
From the water-side requirement alone, the heat duty is already significant. With a circulation rate of 10 m³/h, heating water from 70°C to 100°C would require roughly 350 kW of heat transfer. If the inlet water is closer to 75°C, the required duty is around 290 kW. This means the exchanger should be sized for an approximate useful heat recovery range of 290 to 350 kW, depending on the real operating temperature, water flow stability, and final design margin. The waste air temperature of 210 to 230°C is high enough to support this duty, provided the exchanger is designed with suitable surface area and gas-side flow arrangement.
A fin-tube heat exchanger is especially suitable here because the finned surface increases the gas-side heat transfer area. Boiler exhaust or waste air generally has a lower heat transfer coefficient on the air side than on the water side, so fins help capture more energy from the hot gas stream. By using the right tube diameter, fin pitch, tube spacing, and circuit arrangement, the exchanger can deliver the required water heating performance without creating excessive resistance in the exhaust line.
That balance is essential. In boiler waste heat recovery, maximum heat transfer is not the only goal. The heat exchanger also has to work with the existing fan system. If the fin-tube block is too dense, pressure drop may rise too much and affect airflow through the boiler exhaust system. For that reason, the unit should be designed around the actual fan capacity of 50,000 m³/h, with a coil geometry that provides good heat recovery while still keeping gas-side resistance within a safe range. In many cases, wider tube spacing and optimized fin design are better than simply making the exchanger more compact.
Another key design issue is the flue gas or waste air outlet temperature. Although deeper cooling gives more heat recovery, the gas should not be cooled below a level that creates condensation or corrosion risk, especially if the exhaust contains moisture, acidic components, or dust. A properly engineered fin-tube heat exchanger will therefore target a practical outlet condition rather than the lowest possible gas temperature. This protects the equipment and helps ensure longer service life.
Material selection should also be based on the actual working environment. For many boiler waste heat recovery projects, carbon steel tubes with appropriate fins can be an economical choice. In more corrosive conditions, upgraded materials or protective coatings may be preferred. On the water side, the design must account for condensate quality, operating pressure, and long-term cleanliness. The unit should also be manufactured with reliable welding or expansion quality, pressure testing, and sufficient mechanical support for continuous industrial service.
From an application standpoint, this type of fin-tube heat exchanger is well suited for boiler plants, thermal process lines, waste air heat recovery systems, and condensate preheating duties. It can help reduce steam consumption, lower fuel costs, and improve energy utilization without requiring a complete system redesign. For plants looking for a practical energy-saving upgrade, recovering waste heat from existing exhaust flow is often one of the fastest ways to improve efficiency.
Based on the data provided, the required solution is a custom fin-tube heat exchanger for boiler waste heat recovery, designed for 50,000 m³/h suction fan capacity, 210 to 230°C waste air temperature, and 10 m³/h condensate water circulation, with water heated from 70–75°C up to 100°C. With proper sizing, this system can deliver dependable heat recovery performance and work effectively with the existing plant arrangement.
