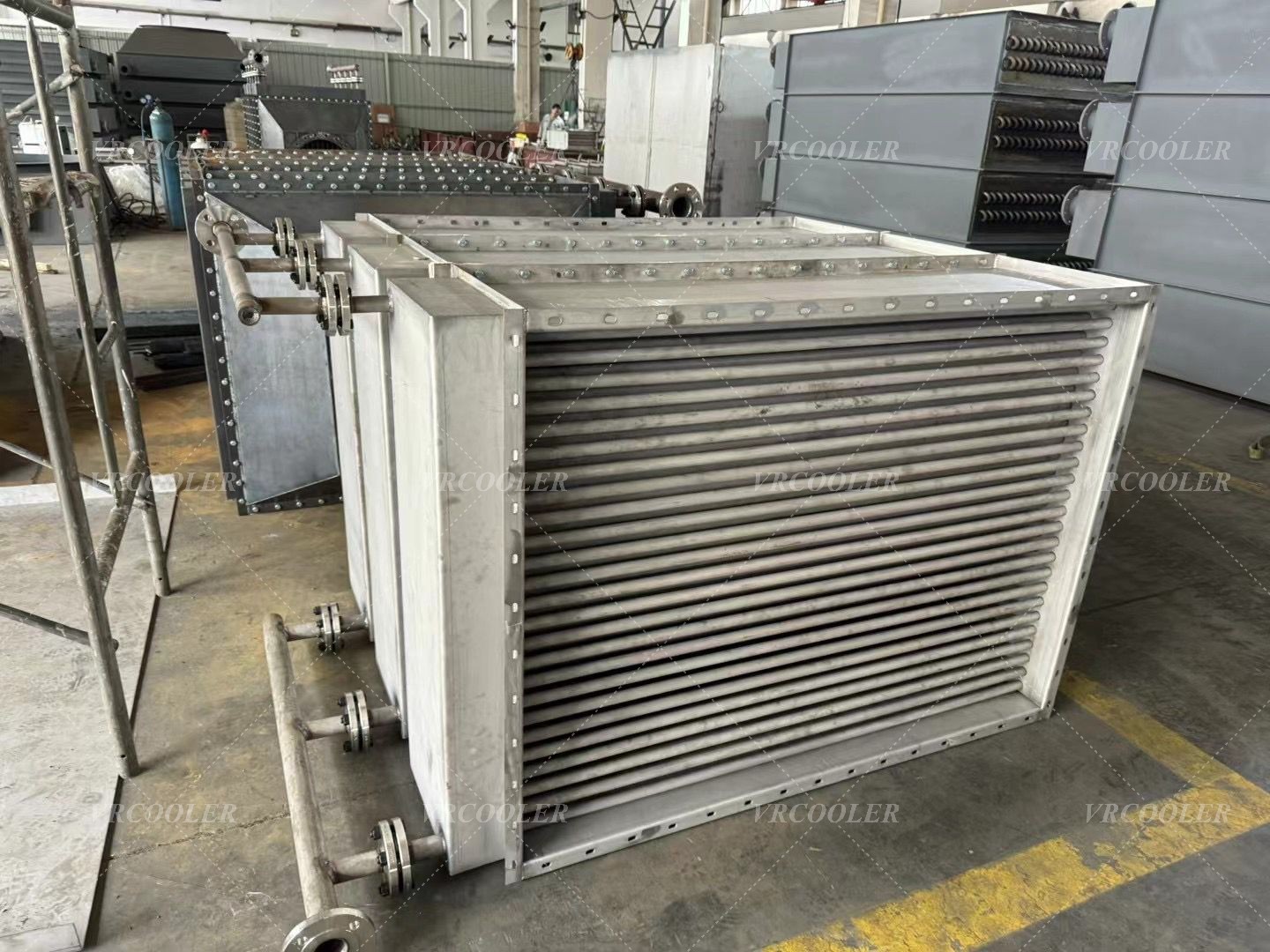

Finned Tube Heat Exchanger for preheating air in the combustion chambers of furnaces and turbines

In high-temperature industrial systems, fuel efficiency depends on more than the burner itself. One of the most effective ways to improve combustion performance is to raise the temperature of the incoming air before it enters the combustion chamber. That is where a finned tube heat exchanger becomes especially valuable. By using waste heat from exhaust gases or hot process streams, it can preheat combustion air for furnaces and turbines, helping the system use fuel more efficiently and operate more steadily.

In many furnace and turbine applications, a large amount of heat leaves the process in the form of hot flue gas or exhaust air. If that energy is allowed to escape directly, the system loses an opportunity to improve overall thermal efficiency. A finned tube heat exchanger captures part of that lost heat and transfers it to fresh combustion air. As a result, the air entering the combustion chamber is already warm, so less fuel is needed to reach the required combustion temperature. This simple principle can lead to meaningful energy savings, especially in installations that operate continuously or at high load.

The finned tube design is well suited to this type of duty. On the gas side, heat transfer is usually less efficient than on the liquid side, so increasing the external surface area is important. Fins attached to the tubes create more contact area between the hot gas and the exchanger surface, improving the rate of heat transfer without making the equipment excessively large. This makes the finned tube heat exchanger a practical and compact option for combustion air preheating systems where space, temperature resistance, and efficiency all matter.

In industrial furnaces, preheated combustion air can improve flame stability, support more complete fuel burning, and reduce the amount of energy wasted in the firing process. This is especially useful in steel plants, aluminum processing, ceramics, glass manufacturing, heat treatment lines, and other operations where furnaces work at elevated temperatures for long periods. By recovering heat from the exhaust and returning it to the combustion process, plant operators can lower fuel consumption while maintaining the required process temperature.

Gas turbines also benefit from combustion air preheating in certain heat recovery arrangements. In turbine-related thermal systems, controlling the efficiency of the combustion process is critical to performance. A properly designed finned tube heat exchanger can help raise the inlet air temperature and improve the energy balance of the overall system. In applications where exhaust heat is available and the operating conditions allow it, preheating air can become part of a broader waste heat recovery strategy aimed at improving plant efficiency.

Another advantage of a finned tube heat exchanger is its flexibility in design. Furnace and turbine systems vary widely in temperature, airflow, fuel type, pressure drop allowance, and installation space. For that reason, these heat exchangers are often customized rather than standardized. Tube diameter, fin pitch, tube arrangement, material selection, and casing structure all need to be matched to the actual operating conditions. In some projects, the goal is maximum heat recovery. In others, the priority may be lower pressure drop, easier cleaning, or longer service life in a dusty or corrosive environment.

Material selection is an important part of the design. Because combustion air preheaters often work with high-temperature exhaust streams, the exchanger must be built from materials that can tolerate thermal stress and long-term exposure to heat. Depending on the application, carbon steel, stainless steel, or heat-resistant alloys may be used. The final choice depends on the gas composition, operating temperature, and expected maintenance conditions. In clean gas applications, one design may be suitable, while dirty or corrosive exhaust streams may require stronger materials and a more robust structure.

Pressure drop must also be considered carefully. While the aim is to recover as much heat as possible, the exchanger should not create excessive resistance in the gas path or combustion air line. If the unit is too dense, fan power requirements may rise and system performance may suffer. A good design finds the right balance between heat transfer area and airflow resistance. That balance is one of the main reasons why custom engineering is so important in furnace and turbine air preheating projects.

From an economic point of view, combustion air preheating can offer strong long-term value. Fuel savings accumulate over time, especially in plants that run continuously. In addition to lower energy costs, improved combustion efficiency can also support more stable operation and better use of installed equipment. For many facilities, waste heat recovery is no longer just an optional upgrade. It has become part of the broader effort to reduce operating costs and improve energy performance.

A finned tube heat exchanger for preheating air in the combustion chambers of furnaces and turbines is therefore more than a simple heat transfer component. It is an energy-saving solution that helps turn waste heat into useful process value. By recovering heat from hot exhaust streams and using it to warm incoming combustion air, the system improves efficiency where it matters most—inside the combustion process itself.

For industrial users looking to reduce fuel use, improve combustion stability, and make better use of available thermal energy, a custom finned tube heat exchanger is a practical and proven choice. With the right design, it can deliver reliable performance, support demanding operating conditions, and contribute to a more efficient furnace or turbine system for years to come.
