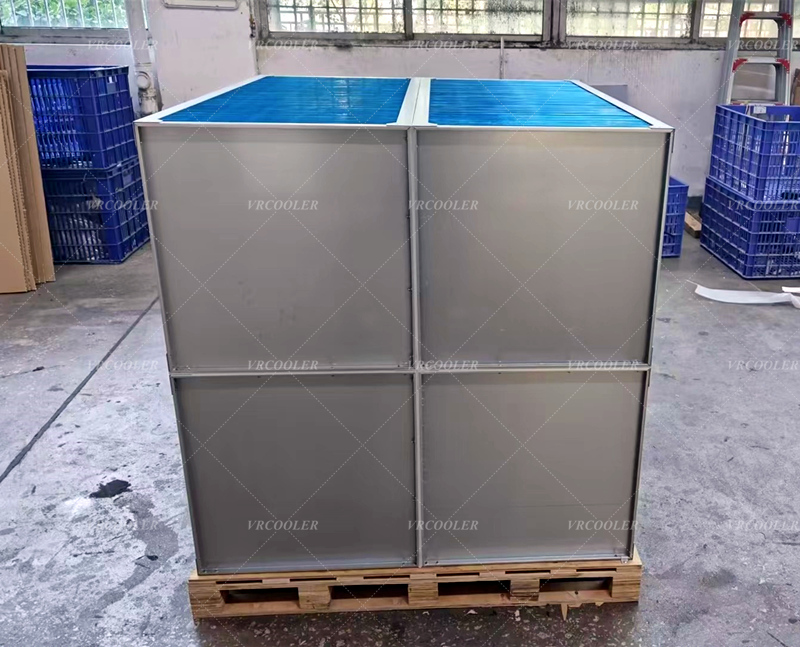

Counterflow Air to Air Heat Exchanger

Counterflow Air to Air Heat Exchanger

counterflow air-to-air heat exchanger is a device used to transfer heat between two air streams that flow in opposite directions. This design maximizes heat transfer efficiency and is commonly used in HVAC systems, industrial processes, and energy recovery applications.

Counterflow Design:

In a counterflow heat exchanger, the two air streams flow in opposite directions. This configuration allows for a greater temperature difference between the incoming and outgoing air, enhancing heat transfer efficiency.

Heat Transfer Surfaces:

The heat exchanger typically consists of a series of plates or tubes that provide a large surface area for heat exchange while minimizing mixing of the air streams.

Applications

Energy Recovery Ventilation (ERV):

Used in buildings to recover heat from exhaust air, preheating incoming fresh air.

Industrial Processes:

Employed in processes where waste heat can be recovered from exhaust air to preheat incoming air for combustion or other processes.
