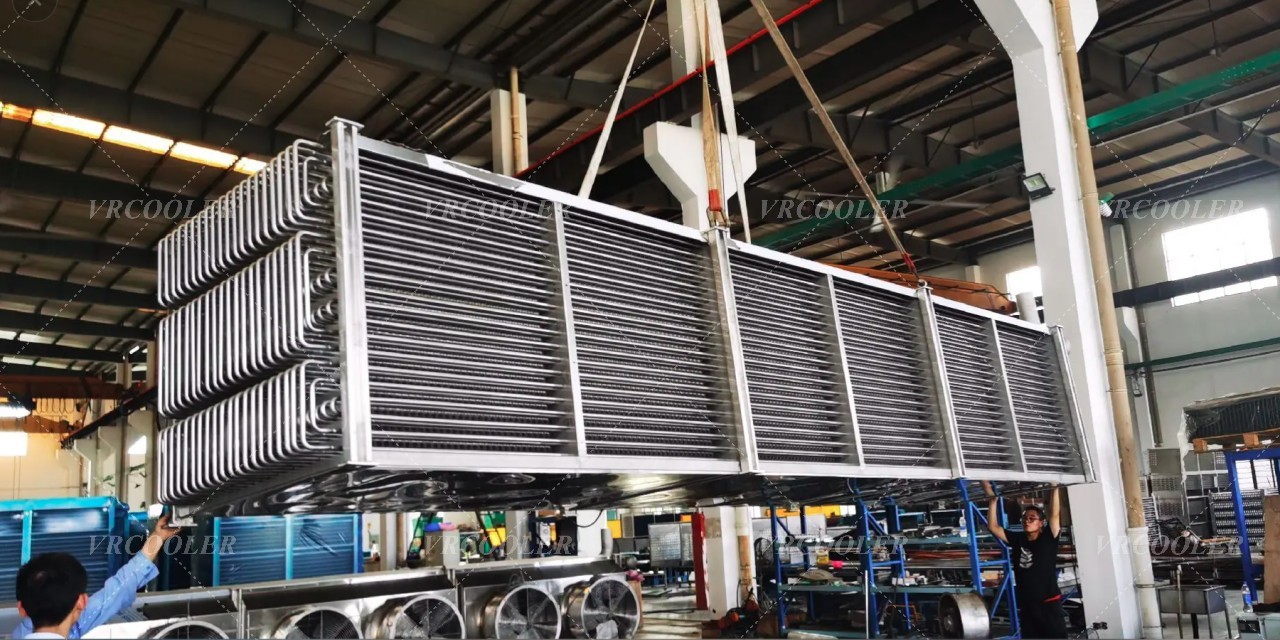

Belt Freezer Evaporator for Tropical Fruits in Export Processing Plants

Tropical fruits are highly sensitive products. Their color, texture, sugar content, and moisture level can change quickly if the freezing process is not properly controlled. For fruit processing plants serving export markets, this is especially important. Buyers expect frozen mango, pineapple, papaya, banana, avocado, dragon fruit, jackfruit, and other tropical fruits to arrive with good appearance, stable quality, and reliable food safety. A belt freezer evaporator plays a central role in making that possible.

In a tropical fruit processing plant, freezing is not just about lowering temperature. It is about protecting product value. Fruit pieces are often soft, juicy, and easily damaged, so the freezing system must remove heat quickly while keeping airflow and temperature as uniform as possible. The evaporator inside the belt freezer is one of the key components responsible for this performance. It provides the refrigeration capacity needed to create the low-temperature environment in which tropical fruits can be frozen rapidly and consistently.

A belt freezer evaporator is designed to work with continuous production. Fruits are fed onto the conveyor belt, move through the freezer tunnel, and are exposed to cold circulating air as they travel through the system. This continuous layout is ideal for export-oriented plants because it supports large volumes, stable throughput, and better control over final product quality. Compared with batch freezing, a belt freezer is better suited for modern fruit processing lines that need efficiency as well as consistency.

For tropical fruits, freezing speed matters a great deal. Slow freezing can lead to larger ice crystals inside the fruit tissue, which may damage cell structure and affect texture after thawing. Rapid freezing helps reduce this problem and supports better color retention, less drip loss, and a more attractive final product. A properly designed evaporator helps the belt freezer maintain the required low-temperature air and strong heat transfer performance so the fruit can pass through the critical freezing zone more quickly.

Different tropical fruits also place different demands on the evaporator. Mango cubes, pineapple chunks, banana slices, passion fruit pulp packs, or papaya dices do not all behave the same way during freezing. Some products release more moisture, some are more delicate, and some require tighter temperature control to preserve quality. That is why the evaporator for a belt freezer should not be treated as a standard coil. It should be matched to the real production conditions, including fruit type, piece size, loading thickness, freezer temperature, line capacity, and required output.

Airflow design is another important issue. In fruit freezing, uneven airflow can lead to uneven product temperature. Some pieces may freeze too slowly, while others may lose more surface moisture than necessary. In export processing plants, that inconsistency can create problems in packaging, storage, and customer acceptance. A well-designed belt freezer evaporator works together with the fan system and freezer structure to support even air distribution across the entire belt width. This helps produce a more uniform frozen product from one end of the line to the other.

Because tropical fruits contain significant moisture, frost formation on the evaporator is always a practical concern. During operation, water vapor from the product and surrounding air can accumulate on the coil surface. If frost builds up too quickly, it reduces heat transfer and restricts airflow, which lowers freezer performance. For that reason, evaporator design must consider fin spacing, tube arrangement, and defrost method carefully. The goal is not only to achieve strong refrigeration capacity, but also to maintain stable performance during continuous industrial use.

Material selection is equally important in fruit processing environments. Export plants usually require hygienic equipment that can withstand regular cleaning and long operating hours. Stainless steel casings, corrosion-resistant coil components, and easy-to-clean structural design are often preferred. In many facilities, sanitation is part of daily operation, so the evaporator should be built not only for thermal performance, but also for food processing conditions where cleanliness and durability matter.

Energy efficiency is another reason the evaporator deserves careful attention. Belt freezers are major power users in a fruit processing plant, especially when operating continuously during harvest season or export production peaks. An evaporator with the right heat transfer area, circuit design, and airflow match can help the refrigeration system run more efficiently. Better evaporator performance may reduce compressor load, improve freezing stability, and lower operating cost over time. For exporters competing on both quality and cost, this is a meaningful advantage.

Customization is often the best approach. Fruit processors may use ammonia, Freon, or CO2 systems depending on plant design and local standards. They may require different evaporating temperatures, coil dimensions, connection layouts, fan arrangements, or defrost systems. Some lines focus on IQF-style separation, while others handle fruit in trays or bulk layers for downstream packing. A custom belt freezer evaporator can be designed according to these real process conditions instead of forcing the factory to adapt to a generic coil.

For export products, final quality is everything. Frozen tropical fruits must survive storage, shipping, and long-distance distribution while still meeting market expectations when they reach the customer. The freezing stage has a direct effect on that outcome, and the evaporator is one of the most important parts of the freezing system. When it is designed correctly, it helps the plant achieve fast freezing, stable operation, good hygiene, and dependable product quality.

A belt freezer evaporator for tropical fruit processing plants is therefore much more than a refrigeration component. It is a key part of the production line that supports export quality, processing efficiency, and long-term plant reliability. For companies handling frozen mango, pineapple, papaya, banana, avocado, dragon fruit, and other tropical products, choosing the right evaporator is an important step toward better freezing performance and better results in the export market.
