Views: 0 Author: Site Editor Publish Time: 2026-04-15 Origin: Site

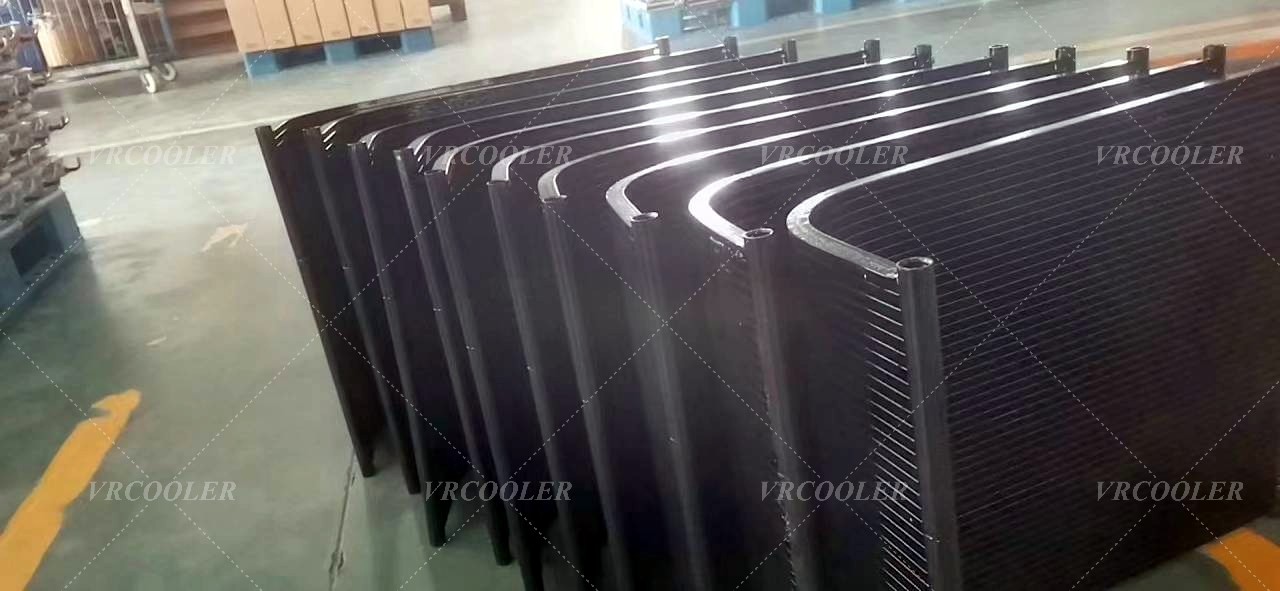

The main reason is their structure. A microchannel coil uses flat multi-port aluminum tubes with many small internal passages, so the refrigerant flows through a more compact internal volume than in many traditional round-tube coils. Because the internal volume is smaller, the system often needs less refrigerant to fill the coil and operate properly.
This is one of the main reasons microchannel technology is attractive in heat pump and air conditioning equipment. Lower refrigerant charge can help with system compactness, refrigerant cost, and design compliance, especially when manufacturers want to reduce total charge in modern HVAC units.
However, the benefit depends on the full system design. The actual charge reduction is influenced by the coil size, refrigerant type, circuit design, operating pressure, and the rest of the refrigeration loop. So microchannel coils are usually a strong choice for charge reduction, but the final result still depends on how the whole heat pump unit is engineered.
In practical terms, yes—microchannel coils are widely valued because they can achieve the required heat transfer with a lower refrigerant volume than many conventional finned tube designs.
Are aluminum microchannel coils good for reducing refrigerant charge?
