Liquid to Liquid Heat Exchanger for 1 MW Server Waste Heat Recovery to MED Desalination Systems

As data centers continue to move toward higher rack densities and liquid cooling, one opportunity is becoming too valuable to ignore: using server waste heat as a real thermal resource instead of simply rejecting it to the atmosphere. For projects that combine digital infrastructure with water production, a custom-engineered liquid-to-liquid heat exchanger becomes the bridge between two very different systems. On one side is the server cooling loop carrying a steady thermal load. On the other is a thermal desalination process, such as MED technology, that can make practical use of that heat.

For this type of application, the heat exchanger is not just a standard utility component. It has to transfer around 1 MW of thermal load reliably and continuously from the data center cooling side to the desalination side, while keeping the two fluids hydraulically separated. That separation is critical. The server loop usually operates with tightly controlled coolant quality, stable flow, and strict contamination limits, while the MED system has its own thermal and operational requirements. A properly designed liquid-to-liquid heat exchanger allows energy to move efficiently from one loop to the other without mixing fluids or compromising system integrity.

In practice, this kind of arrangement turns low-grade or medium-grade waste heat from servers into a useful energy input for water production. Instead of dumping the heat through dry coolers or cooling towers, the system recovers it and feeds it into the desalination process. This improves overall site energy utilization and can significantly strengthen the economics of both the cooling plant and the water treatment plant. For operators looking at integrated energy systems, this is exactly the kind of design that makes waste heat recovery meaningful.

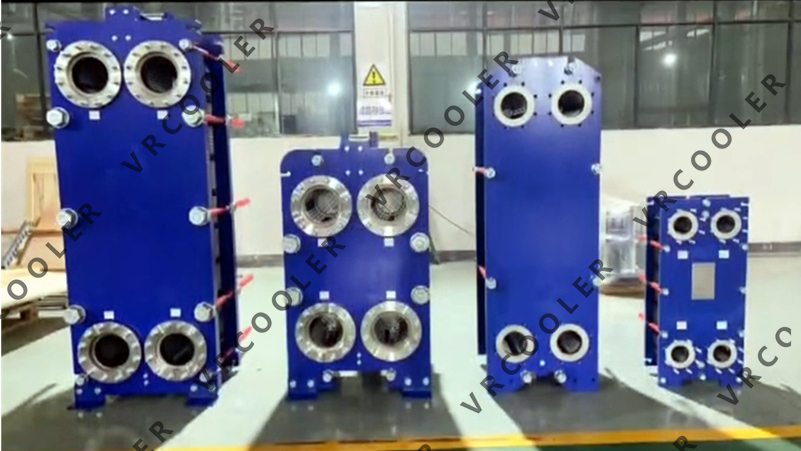

A gasketed plate heat exchanger, like the unit shown in the image, is often a strong fit for this duty. Plate heat exchangers are widely chosen for liquid-to-liquid thermal transfer because they offer high heat transfer efficiency, compact footprint, and close temperature approach. In a 1 MW server cooling application, those advantages matter. The available temperature difference may not always be large, especially when recovering heat from warm water loops used in data center liquid cooling. A plate heat exchanger helps maximize heat recovery from that limited driving force, which is important when the downstream MED process depends on stable thermal input.

Another major advantage is flexibility. Server cooling loads can vary depending on IT utilization, time of day, and expansion phases of the facility. At the same time, desalination demand may also change depending on plant operation. A custom-engineered plate heat exchanger can be sized and configured to match these operating realities, with proper allowance for variable flow rates, fouling margins, pressure drop limits, and maintenance access. In many projects, the best solution is not an off-the-shelf model, but a unit designed specifically around the real temperatures, flow conditions, and water chemistry of both sides.

Material selection is also critical. On the server loop side, corrosion control and cleanliness are essential to protect sensitive cooling infrastructure. On the desalination side, the exchanger may be exposed to treated process water, thermal brine circuits, or other fluids depending on how the MED system is arranged. Plate material, gasket selection, frame strength, and connection design all need to be matched carefully to the application. For industrial-scale projects, reliability over long operating periods is just as important as thermal performance on paper.

A well-designed exchanger for this duty must also consider pressure drop. Data center cooling systems are usually designed around strict hydraulic limits because pumping energy directly affects operating cost. Excessive pressure drop on the server side can reduce system efficiency and create unnecessary load on pumps. At the same time, the MED side may also require controlled flow behavior for thermal stability. The heat exchanger therefore has to be engineered as a balanced system, not just a thermal calculation.

Maintenance is another reason plate heat exchangers are attractive for this type of integration. In long-term service, operators need equipment that can be inspected, opened, cleaned, and adjusted without excessive downtime. A gasketed plate design allows the unit to be serviced more easily than many welded alternatives, which can be especially valuable in projects where uptime matters on both the computing side and the water production side. If future expansion is planned, capacity can sometimes be adjusted by changing the plate pack arrangement, giving the project more flexibility.

For facilities combining server liquid cooling with MED desalination, the broader value goes beyond the heat exchanger itself. The exchanger enables sector coupling: digital infrastructure supports water production, and waste heat becomes a productive asset instead of an operating penalty. This is particularly attractive in regions where fresh water is limited, power costs are significant, or site sustainability targets are becoming more aggressive.

We can provide custom-engineered liquid-to-liquid plate heat exchangers for projects that need to transfer approximately 1 MW of heat from server cooling loops to thermal desalination units using MED technology. The unit can be tailored according to inlet and outlet temperatures, flow rates, allowable pressure drop, fluid properties, material requirements, frame size, maintenance preferences, and future expansion plans. For advanced waste heat recovery applications, a properly designed heat exchanger is the key component that makes the entire integration practical, efficient, and reliable.
