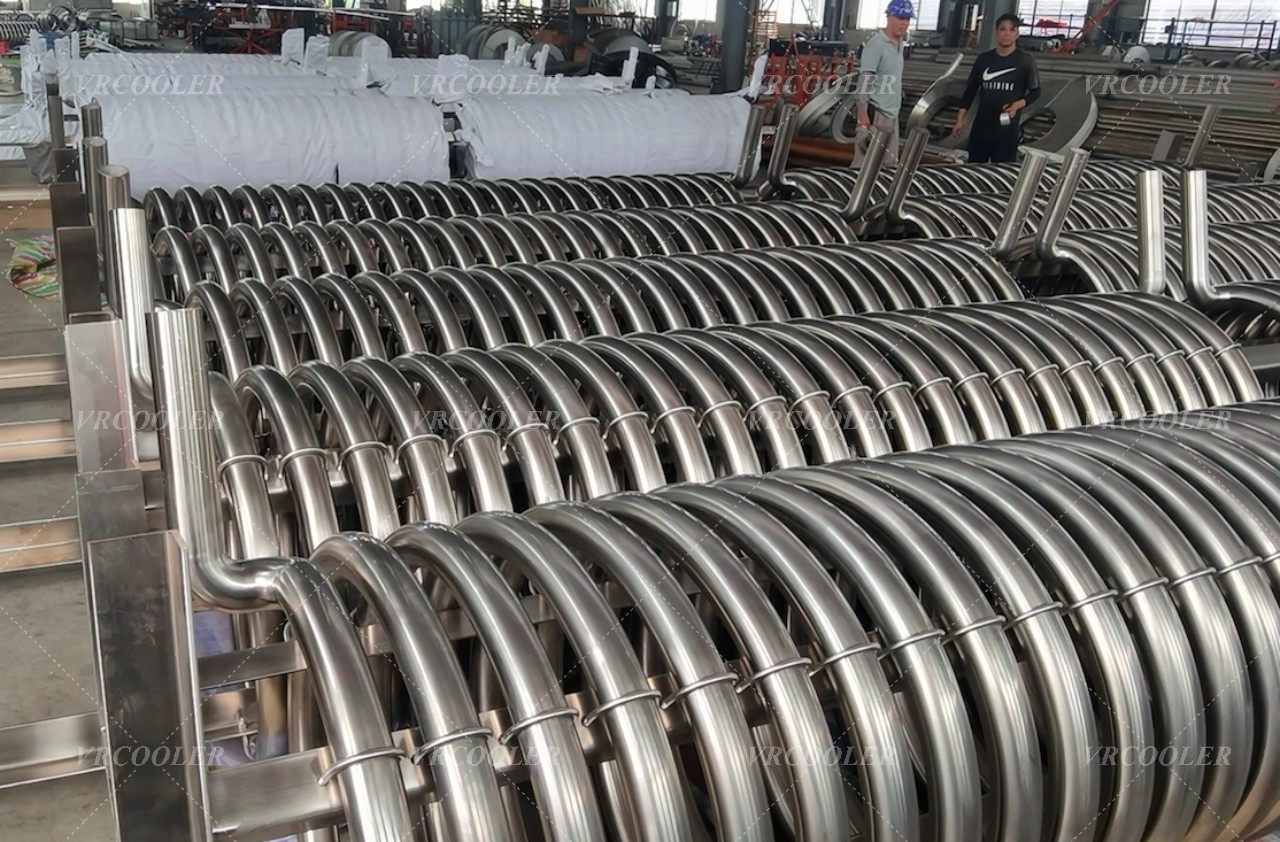

When selecting a spiral coil heat exchanger for a boiler, the most important factors are the heat load, operating conditions, fluid properties, material selection, and installation space.
Here are the key points to evaluate:
You need to know how much heat must be transferred. This determines the required coil surface area, tube size, and coil dimensions.
Check what fluid flows inside the coil and what fluid surrounds it. Common media include steam, hot water, thermal oil, condensate, or chemical liquids. Different media affect heat transfer rate, corrosion risk, and material choice.
The temperature on both sides of the heat exchanger is critical for calculating the required performance. A larger temperature difference usually improves heat transfer efficiency.
The design pressure inside the coil must match the actual system pressure. Higher pressure applications may require thicker tubes, stronger welds, and stricter manufacturing standards.
High-temperature service affects material strength, thermal expansion, and long-term durability. The coil material must be suitable for continuous operation at the required temperature.
Material is very important for corrosion resistance, pressure strength, and service life. Common options include carbon steel, stainless steel, copper, titanium, or alloy materials depending on the medium and environment.
The spiral coil must fit the boiler, tank, or vessel correctly. You need to consider coil diameter, height, tube pitch, number of turns, and connection position.
The flow rate of the heating or cooling medium affects heat transfer efficiency and pressure drop. A proper balance is needed to achieve good thermal performance without excessive resistance.
The allowed pressure drop on the tube side should be checked carefully. If pressure loss is too high, system performance may be affected and pumping or circulation costs may increase.
If the working fluid contains scale-forming substances, suspended solids, or contaminants, fouling may reduce heat transfer over time. In such cases, the coil should be designed for easier cleaning and better fouling resistance.
You should confirm whether the coil is used for water heating, steam heating, thermal oil service, process heating, or heat recovery. Different applications may require different design priorities.
It is important to consider welding quality, inspection standards, ease of installation, and future maintenance access. A good design should not only perform well but also be practical to maintain.
For boiler-related applications, the heat exchanger may need to comply with relevant pressure vessel or boiler codes, depending on the project and local regulations.
In summary, the best spiral coil heat exchanger is not selected by size alone. It should be chosen based on thermal performance, pressure and temperature conditions, corrosion resistance, space limitations, and long-term reliability.
