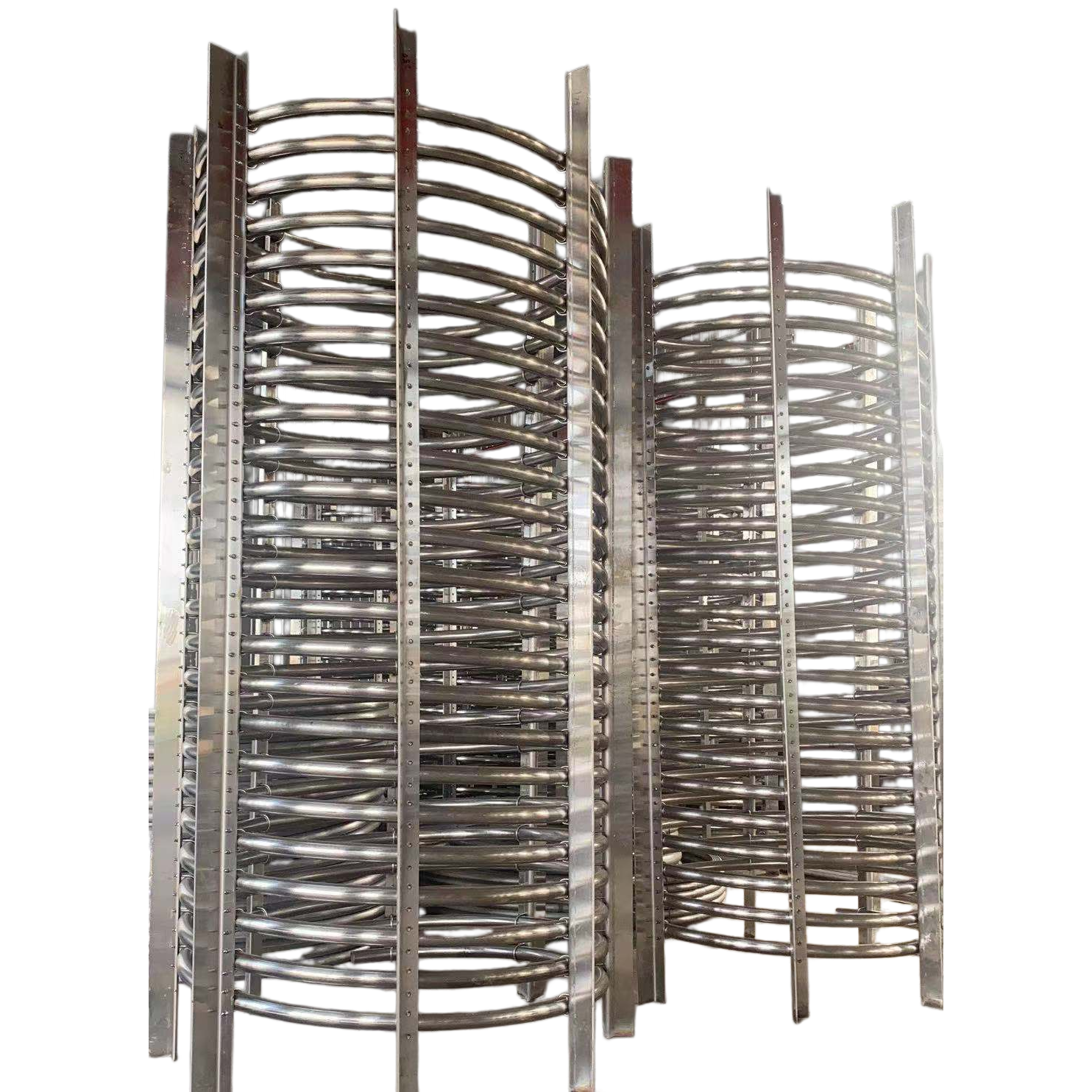

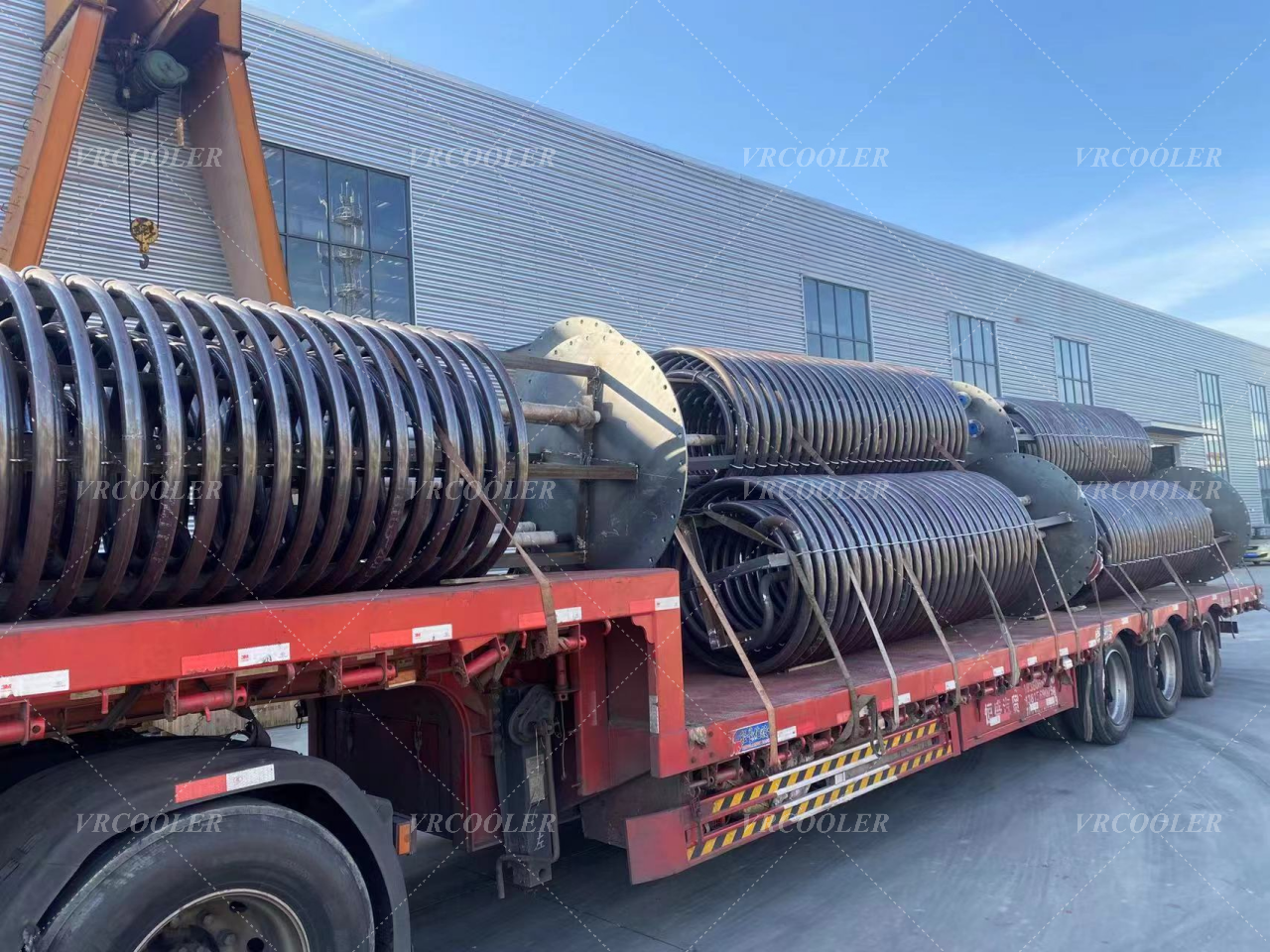

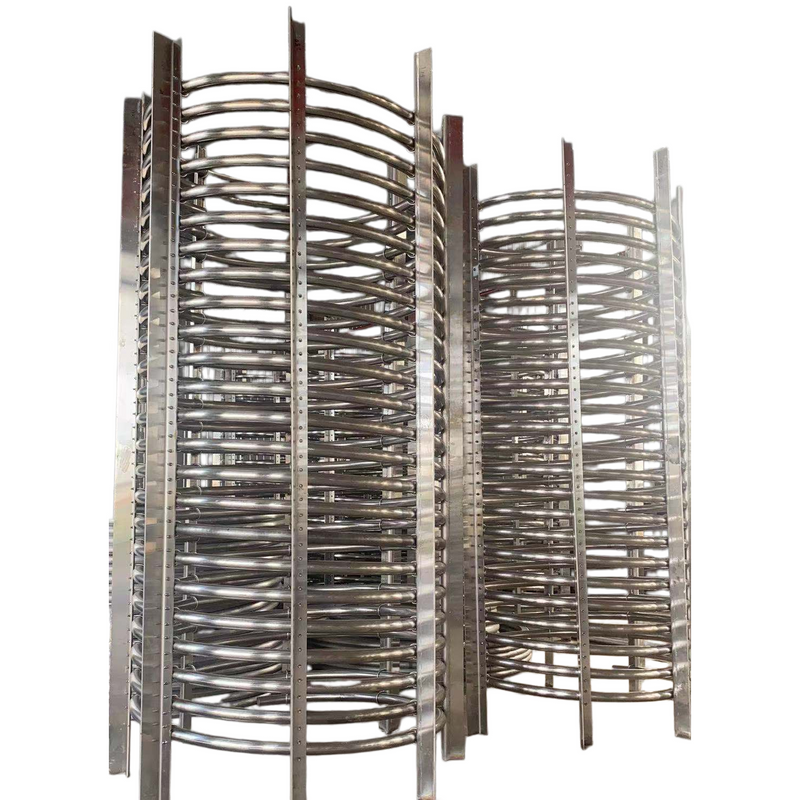

A Spiral Coil Heat Exchanger for Boiler is a compact and highly efficient heat transfer component designed for boiler systems, heating vessels, reaction tanks, and various industrial process applications. Formed by winding metal tubes into a spiral or helical configuration, this type of heat exchanger offers a large heat transfer surface within a limited space, making it ideal for equipment that requires efficient thermal exchange and compact structural design.
In boiler applications, the spiral coil is commonly used to transfer steam, hot water, thermal oil, or other heating media to the process side. It can also be used for cooling service when chilled water or other cooling fluids circulate through the coil. With its stable structure and excellent heat transfer performance, the spiral coil heat exchanger is widely used in chemical, food, pharmaceutical, energy, and general industrial systems.
Efficient heat transfer
The spiral tube arrangement increases the available heat exchange area and improves thermal conductivity between the medium inside the coil and the surrounding fluid.
Compact structure
The coiled design allows more heat transfer tubing to be installed in a smaller vessel space, which is especially useful for boilers and tanks with limited internal dimensions.
Uniform heating performance
The spiral layout helps distribute heat more evenly throughout the surrounding medium, contributing to stable temperature control during operation.
Custom-built design
Each spiral coil heat exchanger can be manufactured according to customer requirements, including tube diameter, coil diameter, layer height, pitch, material, pressure rating, and connection type.
Strong mechanical reliability
Produced with quality materials and controlled fabrication processes, the coil offers good strength, pressure resistance, and service life under industrial working conditions.
Depending on the application and operating medium, the spiral coil heat exchanger can be manufactured in:
Stainless steel
Carbon steel
Copper
Titanium
Nickel alloy
Other corrosion-resistant materials
Material selection can be adjusted according to water quality, steam condition, chemical media, pressure, and temperature requirements.
Spiral coil heat exchangers for boilers are widely used in:
Steam boiler systems
Hot water boiler systems
Thermal oil heating systems
Reactor vessels
Mixing tanks
Storage tanks
Chemical processing equipment
Food and beverage heating systems
Pharmaceutical process vessels
Energy recovery systems
The spiral coil heat exchanger works by allowing a heating or cooling medium to flow through the coiled tube. Heat is transferred through the tube wall to the surrounding fluid or product inside the vessel. In boiler heating service, steam or hot water passes through the spiral tube and releases heat to the external process medium. This indirect heating method helps avoid contamination, improves process control, and provides a dependable way to achieve the target operating temperature.
Compared with conventional straight tube arrangements, a spiral coil heat exchanger provides several practical advantages:
Larger heat transfer area in the same installation space
Better adaptation to cylindrical vessels and tanks
Flexible design for different duties and capacities
Easier integration into custom equipment
Suitable for both heating and cooling applications
Strong resistance to industrial operating conditions
We provide custom Spiral Coil Heat Exchangers for Boiler based on drawings, design specifications, or operating parameters. Our production scope can include tube bending, welding, polishing, pressure testing, and assembly support to ensure the finished coil meets project requirements.
