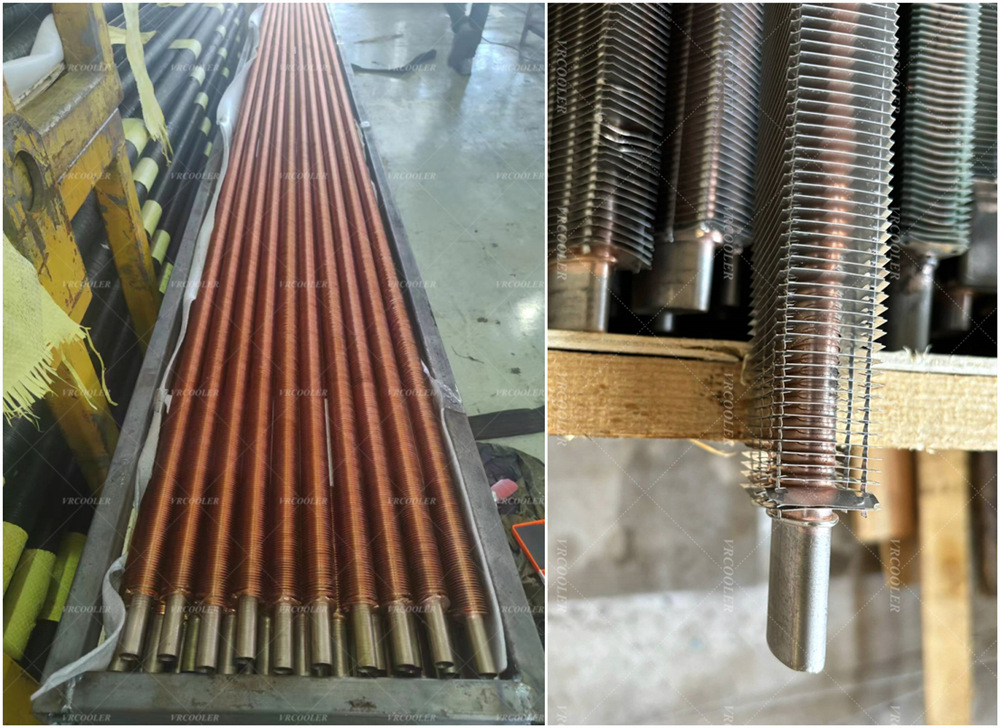

Oval Finned Tube vs Round Finned Tube

Comparison Between a Standard (circular) Finned Tube and an Oval Finned Tube

1. Tube Shape

Standard Finned Tube: The base tube is a circle. Fins (helical, plate, or crimped) are wrapped around or welded onto this round core.

Oval Finned Tube: The base tube has an elliptical/oval cross-section (like a flattened circle). Fins are applied to this non-circular shape.

2. Air-Side Pressure Drop (Most Critical Difference)

Standard Round Tube: As air flows around a circular tube, it creates a large wake (turbulent zone behind the tube). This results in high pressure drop, meaning the fan must work harder.

Oval Tube: The streamlined shape allows air to flow around it more smoothly with a much smaller wake. This reduces pressure drop by 30–50% compared to a round tube with the same surface area.

3. Heat Transfer Efficiency

Standard Round Tube: Good heat transfer, but the "dead zone" behind the tube reduces effective fin utilization.

Oval Tube: Because the air flows more uniformly around the tube, more of the fin surface gets active air contact. This increases the heat transfer coefficient by 10–20% for the same frontal area.

4. Footprint / Airflow Area

Standard Round Tube: Takes up more frontal space relative to its internal volume.

Oval Tube: For the same internal cross-sectional area (fluid flow inside), the oval tube is narrower in the direction of airflow. This allows you to pack more tubes into the same coil face area or reduce the overall unit size.

5. Fouling & Cleaning

Standard Round Tube: Fins are easy to clean with standard air/water jets. Wider fin spacing is available for dirty air.

Oval Tube: The tighter spacing between oval tubes can trap debris more easily. Cleaning is more difficult because tools cannot pass as freely between the oval cores.

6. Fluid Flow Inside (Tube Side)

Standard Round Tube: Lower flow resistance inside; easier to calculate and design for water, oil, or refrigerant.

Oval Tube: Higher internal pressure drop (more friction per unit length). Not ideal for viscous fluids. Better for water or clean gases internally.

7. Manufacturing Cost

Standard Round Tube: Low cost. Readily available dies and tooling for helically wound or extruded fins.

Oval Tube: High cost. Requires special rolling mills to shape the tube, custom fixturing for fin attachment, and non-standard headers.
