Main Components of Shell and Tube Heat Exchangers

In the case of a shell-and-tube heat exchanger, the term "shell" refers to an external cylindrical vessel containing a bundle of tubes. This type of heat exchanger is widely used in various industries to transfer heat between two fluids. Shell and tube heat exchanger consists of two main components: shell and tube.

1, Shell:

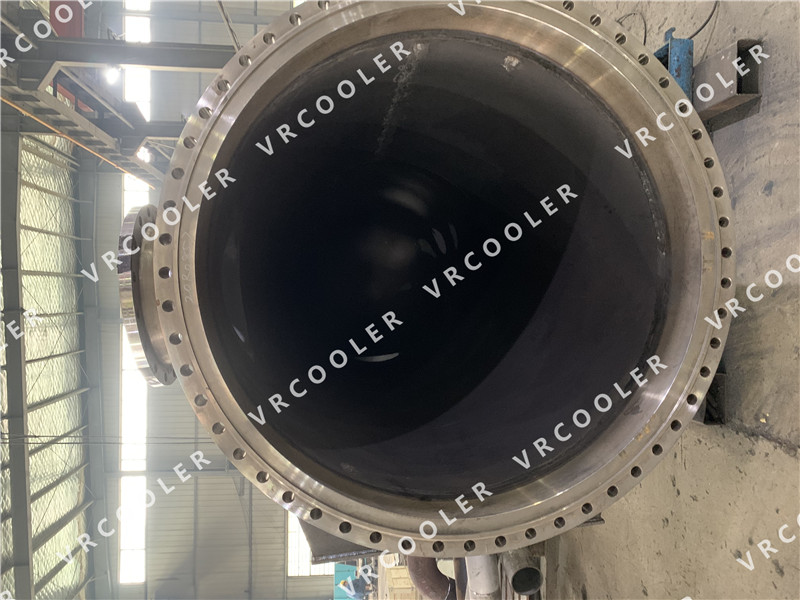

The shell is the larger external component of the heat exchanger, providing structural support and containment for the tube bundle. It is usually cylindrical in shape and can be configured in a variety of ways, such as fixed tube sheets, floating heads, U-tubes, etc. The shell has two fluid inlets, one for the fluid and one for the tubes. The shell has inlets and outlets for two fluids (one fluid flows through the tubes and the other fluid flows around the tubes), thus allowing heat transfer to occur.

2. tubes:

Inside the shell there is a bundle of tubes, usually smaller in diameter than the shell. These tubes are channels for the flow of one of the fluids. Heat is transferred between the fluids through the walls of the tubes. Depending on the design and performance requirements of the heat exchanger, the tubes can be arranged in different ways, such as in-line, staggered or triangular pitch.

The heat transfer process in a shell and tube heat exchanger involves one fluid travelling through the tubes (often referred to as the "tube side") and another fluid travelling around the tubes in the shell (referred to as the "shell side"). Heat is exchanged through the tube walls. The greater the volume of fluid on the shell side, the better the heat transfer efficiency.

There are different variants of shell and tube heat exchangers:

- Fixed tube plate: The tube ends are fixed to a tube plate, which is welded or bolted to the shell. This design is simple and cost-effective.

- Floating head: One end of the tube bundle is free to move to accommodate thermal expansion. This design is often used when one of the fluids experiences significant temperature changes.

- U-Tubes: Tubes are bent into a U-shape, allowing the bundle to expand and contract freely. This design is used in applications where differences in thermal expansion may occur.

Shell and tube heat exchangers are used in a wide variety of applications, including power generation, chemical processing, oil and gas refining, HVAC systems, refrigeration and more. The specific design of a shell and tube heat exchanger depends on factors such as the fluid to be exchanged, temperature and pressure conditions, fouling considerations and efficiency requirements.
