As solar thermal power plants and energy storage systems continue to expand globally, efficient and water-conserving heat rejection solutions are becoming essential. Adiabatic dry coolers offer an ideal balance between high thermal performance and minimal water consumption, making them especially suitable for solar thermal applications and thermal energy storage (TES) systems operating in hot and arid regions.

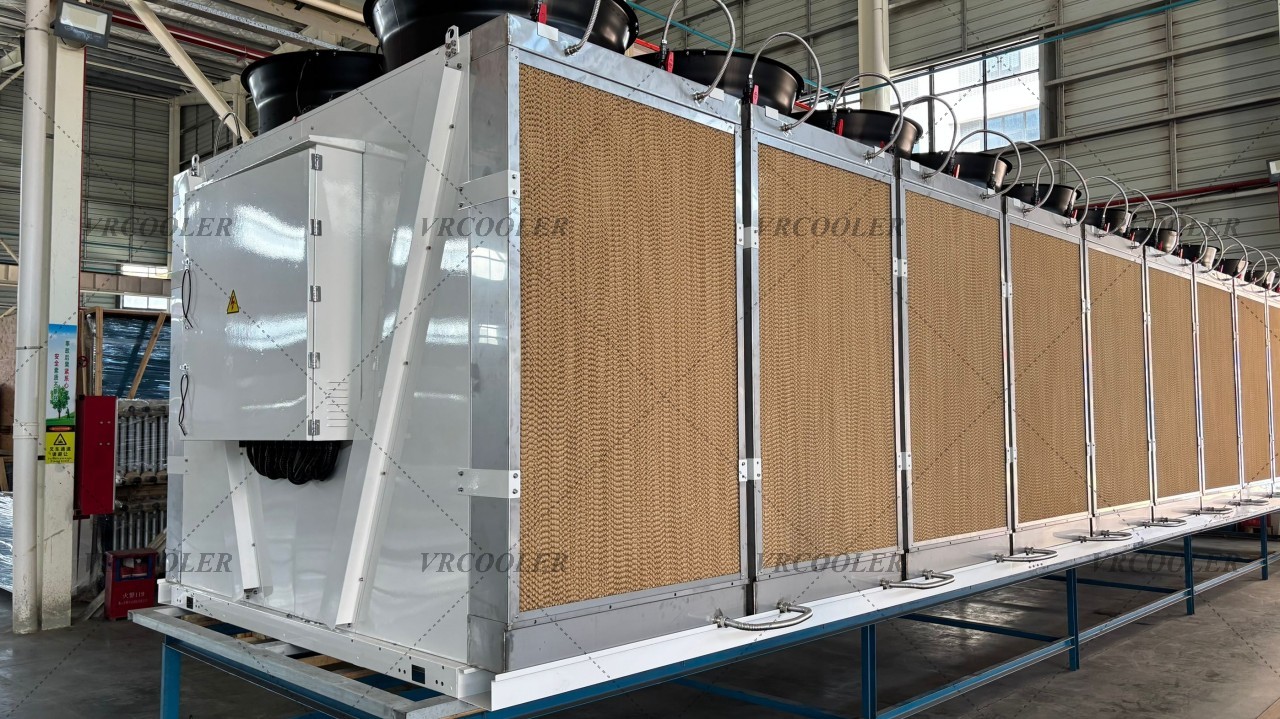

An adiabatic dry cooler is an advanced air-cooled heat exchanger that combines dry cooling technology with adiabatic pre-cooling. During high ambient temperature conditions, a fine water mist or wetted pad system cools the incoming air before it passes over the finned tube heat exchanger. This temporary evaporative effect significantly improves cooling efficiency without the continuous water use of traditional cooling towers.
When ambient temperatures are moderate, the unit operates in 100% dry mode, consuming no water at all.
Solar thermal plants—such as parabolic trough, solar tower, and linear Fresnel systems—require reliable cooling for:
Heat transfer fluids (HTF) such as thermal oil or molten salts
Condenser cooling for steam cycles
Balance-of-plant cooling circuits
Adiabatic dry coolers are widely used to dissipate excess heat from condensers and auxiliary cooling loops, ensuring stable power generation even during peak summer temperatures.
Key benefits for solar thermal plants include:
Reduced water consumption compared to wet cooling towers
Stable performance in high ambient temperatures
Lower risk of scaling, corrosion, and biological fouling
Compliance with water-scarcity regulations
Thermal energy storage systems—especially molten salt and hot water storage—require precise temperature control to maintain efficiency and system longevity. Adiabatic dry coolers provide effective cooling during:
Charge and discharge cycles
Standby heat rejection
Emergency or peak load conditions
Their ability to operate efficiently at high process temperatures makes them well suited for large-scale energy storage projects integrated with renewable power plants.
High-efficiency finned tube heat exchanger coils
EC or AC axial fans with variable speed control
Adiabatic pad or spray pre-cooling system
Intelligent control system for dry/adiabatic mode switching
Optional noise reduction and anti-corrosion coatings
Adiabatic dry coolers play a critical role in the success of modern solar thermal power plants and thermal energy storage systems. By combining high cooling efficiency with minimal water consumption, they support sustainable energy production while meeting environmental and regulatory demands. For renewable energy projects seeking reliable, future-proof cooling solutions, adiabatic dry coolers are a smart and proven choice.
