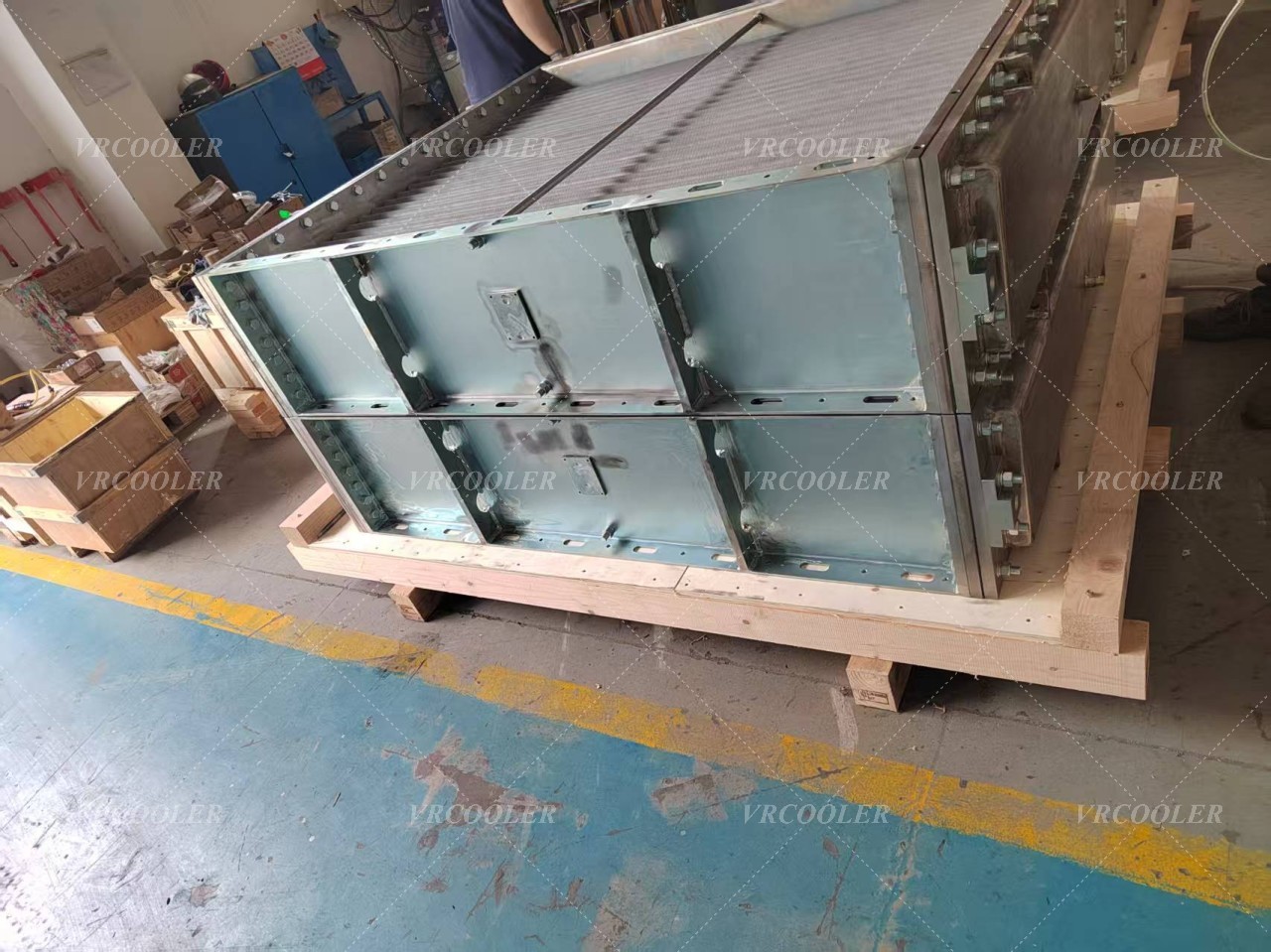

Steam turbine generators operate continuously under high thermal loads, and effective heat rejection is essential to maintain performance, efficiency, and equipment lifespan. Finned tube air coolers are widely used in steam turbine generator systems to dissipate heat from auxiliary fluids such as lube oil, seal oil, hydrogen coolers, and closed-loop cooling water—especially where water availability is limited or dry cooling is preferred.
Role of Finned Tube Air Coolers in Steam Turbine Systems
In steam turbine generator plants, finned tube air coolers are commonly applied for:
Turbine lube oil cooling
Generator seal oil cooling
Hydrogen or stator cooling auxiliary loops
Closed-cycle cooling water (CCW) systems
Heat rejection in air-cooled power plants
By transferring heat from process fluids inside the tubes to ambient air flowing across external fins, these coolers eliminate or reduce dependence on cooling water systems.
Key Design Features
Extended finned surface
High-density aluminum or steel fins significantly increase heat transfer area, ensuring efficient air-side cooling.
Robust tube construction
Carbon steel, stainless steel, or copper tubes are selected based on pressure, temperature, and fluid compatibility.
Heavy-duty casing & frame
Designed to withstand vibration, thermal expansion, and long-term operation in turbine halls or outdoor installations.
Optimized airflow design
Compatible with axial or centrifugal fans for forced-draft or induced-draft configurations.
Maintainability
Accessible coil design allows for inspection, cleaning, and long service intervals.
Advantages for Steam Turbine Generator Applications
Water-free or low-water cooling – ideal for arid regions or plants seeking reduced water consumption
High reliability under continuous base-load or peaking operation
Lower operating costs compared to water-cooled systems
Reduced fouling risk on the air side compared to cooling water scaling
Flexible installation – indoor or outdoor, horizontal or vertical airflow
Materials & Configuration Options
Finned tube air coolers can be customized to meet turbine generator requirements:
Fin materials: Aluminum, galvanized steel, stainless steel
Tube materials: Carbon steel, stainless steel, copper-nickel
Fin types: L-footed, embedded (G-fin), extruded, or spiral wound
Design standards: ASME, TEMA, customer power-plant specifications
Surface treatments: Anti-corrosion coatings for coastal or industrial environments
Typical Operating Conditions
High oil flow rates with stable pressure drop
Continuous duty cycles (24/7 operation)
Ambient temperatures up to 40–50 °C
High reliability requirements for critical turbine auxiliaries
Why Choose Our Finned Tube Air Coolers
Proven experience in power generation and turbine auxiliary cooling
Custom thermal and mechanical design based on actual plant conditions
High-quality fabrication and strict quality inspection
Long service life with minimal maintenance requirements
