L Shaped Condenser

L Shaped Condenser

An "L-shaped condenser" refers to a specific configuration or design of a condenser used in refrigeration and air conditioning systems.

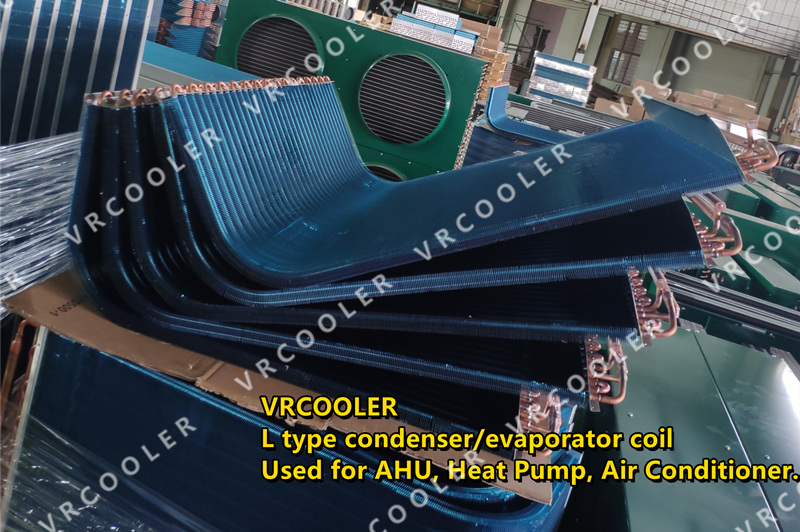

A condenser is a vital component of a refrigeration system responsible for releasing heat absorbed from the refrigerant during the cooling process. The L-shaped condenser typically features two sections of coils or tubes positioned at right angles to each other, forming an "L" shape.

The primary purpose of the L-shaped condenser is to fit the condenser into limited or space-constrained installations while still maintaining efficient heat transfer. This design allows for more flexibility in adapting to various installation layouts and optimizing the use of available space.

Here are some key points about the L-shaped condenser:

1. **Space Optimization:

The L-shaped design is particularly useful in situations where there is limited space for the installation of a standard straight condenser. It allows for more compact and efficient use of available space.

2. **Airflow and Heat Dissipation:

L-shaped condensers are designed to ensure proper airflow around the coils, promoting effective heat dissipation. Adequate airflow is crucial for the condenser to release the absorbed heat efficiently.

3. **Applications:

L-shaped condensers can be used in various refrigeration and air conditioning applications, including small air conditioning units, refrigerators, freezers, heat pumps and some specialized cooling systems.

4. **Materials:

L-shaped condensers are typically constructed with materials like copper, aluminum, or stainless steel to provide good heat transfer properties and resistance to corrosion.

5. **Maintenance and Cleaning:

Proper maintenance and periodic cleaning are essential to keep the L-shaped condenser operating efficiently. Dust, debris, or other contaminants can hinder heat transfer and reduce the condenser's performance.
