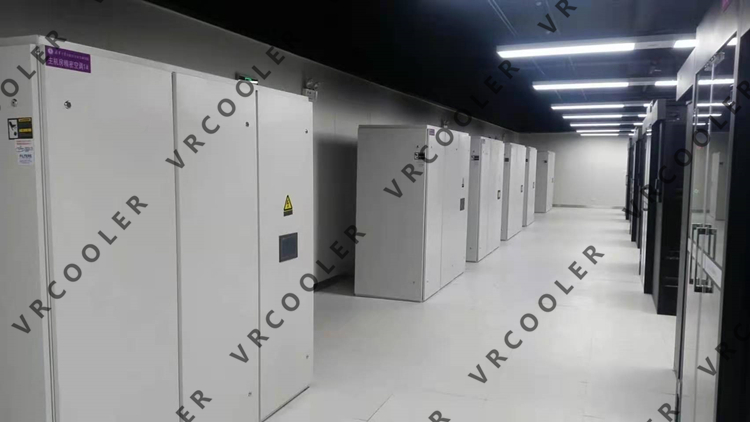

How is redundancy handled in precision air conditioning?

Redundancy in precision air conditioning (PAC), commonly used in data centers, telecom rooms, and mission-critical facilities, is handled through system architecture, equipment configuration, and control strategy to ensure continuous cooling even during component failure or maintenance. The objective is to eliminate single points of failure while maintaining tight temperature and humidity control.

1. Redundancy Architectures (N, N+1, N+2, 2N)

N (No Redundancy)

• N units are installed to meet 100% of the design cooling load.

• Any unit failure results in loss of cooling capacity.

• Used only in non-critical applications.

N+1 Redundancy (Most Common)

• One additional unit beyond the required capacity.

• If one PAC unit fails, the standby unit automatically starts.

• Balances reliability and capital cost.

• Widely adopted in data centers and control rooms.

N+2 Redundancy

• Two standby units are provided.

• Higher fault tolerance for critical facilities with limited maintenance windows.

2N Redundancy

• Two completely independent cooling systems, each capable of handling 100% of the load.

• Includes separate power supplies, piping, and controls.

• Used in hyperscale data centers, financial institutions, and high-availability facilities.

2. Unit-Level Redundancy

Compressor Redundancy

• Multiple compressors (dual or tandem) within a single PAC unit.

• Load is shared during normal operation.

• Partial capacity remains available if one compressor fails.

Fan Redundancy

• EC fans or multiple fan arrays replace single large fans.

• Failure of one fan results in reduced airflow, not total shutdown.

• Improves reliability and energy efficiency.

Power Supply Redundancy

• Dual power feeds (utility + UPS or generator).

• Control systems powered by UPS to allow controlled shutdown or failover.

3. Cooling Source Redundancy

Chilled Water Systems

• Multiple chillers arranged in N+1 or 2N configurations.

• Redundant pumps, control valves, and heat exchangers.

• Automatic isolation of failed components.

DX (Direct Expansion) Systems

• Multiple independent DX PAC units instead of one large unit.

• Each unit has its own refrigeration circuit.

Hybrid Redundancy

• Combination of chilled water and DX systems.

• Allows continued cooling if one cooling source becomes unavailable.

4. Control and Automation Redundancy

Lead–Lag Control

• PAC units rotate duty cycles automatically.

• Ensures even wear and extends equipment life.

• Standby units are periodically tested.

Automatic Failover

• Central or unit-level controllers detect alarms (high temperature, compressor fault).

• Standby units start automatically without manual intervention.

Network Redundancy

• Dual communication paths (BACnet, Modbus).

• Redundant controllers to avoid control system single-point failure.

5. Zonal and Room-Level Redundancy

Distributed Cooling

• Multiple PAC units serve overlapping zones.

• Failure of one unit can be compensated by neighboring units.

Hot/Cold Aisle Containment

• Improves cooling efficiency, allowing redundant units to handle load increases during failures.

• Reduces the number of standby units required.

6. Maintenance and Reliability Strategy

• Concurrent maintainability: Equipment can be serviced without shutting down cooling.

• Condition monitoring: Early detection of fan, compressor, or sensor degradation.

• Periodic redundancy testing: Ensures standby units are fully operational when needed.

7. Practical Example

For a data center requiring 300 kW of cooling:

• N configuration: 6 × 50 kW PAC units

• N+1 configuration: 7 × 50 kW PAC units

• 2N configuration: 2 independent systems, each with 6 × 50 kW units

Conclusion

Redundancy in precision air conditioning is achieved through a layered approach, combining:

• System-level redundancy (N+1, 2N)

• Component-level redundancy (compressors, fans, power)

• Cooling source redundancy (DX, chilled water, hybrid)

• Intelligent control and automation

This integrated strategy ensures high availability, fault tolerance, and uninterrupted environmental control in mission-critical facilities where cooling failure is not an option.
