In modern grain and vegetable drying processes, energy consumption represents one of the highest operating costs. Our air-to-air heat exchanger for drying systems is designed to recover waste heat from exhaust air and reuse it to preheat fresh intake air, significantly improving overall thermal efficiency and reducing fuel consumption.
This air-to-air heat exchanger is a robust, industrial-grade unit specifically engineered for continuous drying applications such as grain, seeds, vegetables, fruits, and agricultural products. By transferring heat from hot, humid exhaust air to incoming fresh air without cross-contamination, the system achieves efficient energy recovery while maintaining product quality and hygiene.

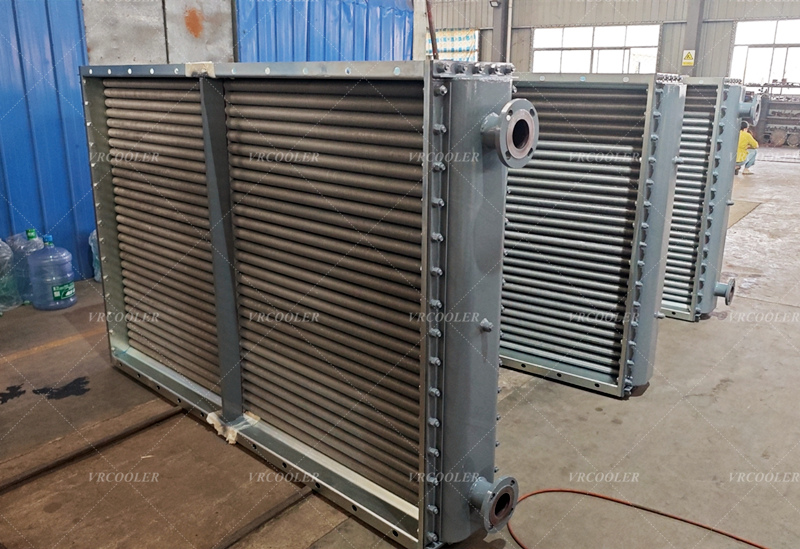

The compact, modular structure shown in the image allows easy integration into existing drying lines or new drying plant designs.
During the drying process:
Hot exhaust air exits the dryer carrying residual thermal energy
Fresh ambient air enters the system at a lower temperature
Inside the heat exchanger, heat is transferred across the finned or plate surfaces
Exhaust and fresh air streams remain completely separated
As a result, the incoming air is preheated, reducing the load on burners, steam heaters, or electric heaters.
1. High Energy Recovery Efficiency
The optimized heat transfer surface maximizes heat recovery, typically achieving 30–60% energy savings, depending on operating conditions.
2. No Air Mixing – Hygienic Operation
Air-to-air indirect heat exchange prevents moisture, dust, or odor transfer, making it ideal for food and agricultural drying applications.
3. Heavy-Duty Industrial Construction
Rigid steel frame
High-temperature resistant fins or plates
Designed for continuous operation in harsh drying environments
4. Lower Operating Costs
Reduced fuel or electricity consumption directly lowers production costs and shortens return on investment.
5. Compact and Modular Design
The unit can be installed horizontally or vertically and customized to match airflow, temperature, and space requirements.
Grain drying (corn, wheat, rice, barley)
Vegetable drying (onion, garlic, carrot, pepper)
Fruit drying
Seed processing plants
Biomass and agricultural product dryers
Industrial hot air drying systems
Airflow capacity: tailored to dryer size
Operating temperature: suitable for high-temperature exhaust air
Heat exchange core: finned tube or plate type
Low pressure drop design
Optional corrosion-resistant or anti-fouling coatings
Proven success in industrial drying energy recovery projects
Custom design based on customer process data
Reliable performance and long service life
Support for OEM and retrofit drying systems
The air-to-air heat exchanger for grain and vegetable drying is an effective and economical solution for reducing energy consumption and improving sustainability in industrial drying operations. By recovering waste heat that would otherwise be lost, this system delivers measurable energy savings while maintaining safe, clean, and stable drying conditions.
