HT/LT dual circuit cooling means an engine has two separate coolant loops at two different temperatures: a high-temperature (HT) circuit that cools the engine block, cylinder heads and usually the first stage of charge-air cooling, and a low-temperature (LT) circuit that cools the gas-air mixture (charge air) after the turbocharger, the lube oil cooler and sometimes the generator — at a temperature well below the HT loop. Gas engines need two circuits because the mixture entering the cylinders must be cold to avoid knock and to meet power and emission targets, while the engine block must run hot for efficiency and combustion stability; one loop cannot be both. Each circuit needs its own radiator section with its own fan air and its own flow and pressure-drop limits. CSTHEATEXCHANGER manufactures HT/LT dual circuit remote radiators and dry coolers for gas gensets — both circuits in one unit or as separate units — rated for extreme ambient from −40 °C to +50 °C, with low-pressure-drop coil design and the thermal data to match the engine maker's requirements.

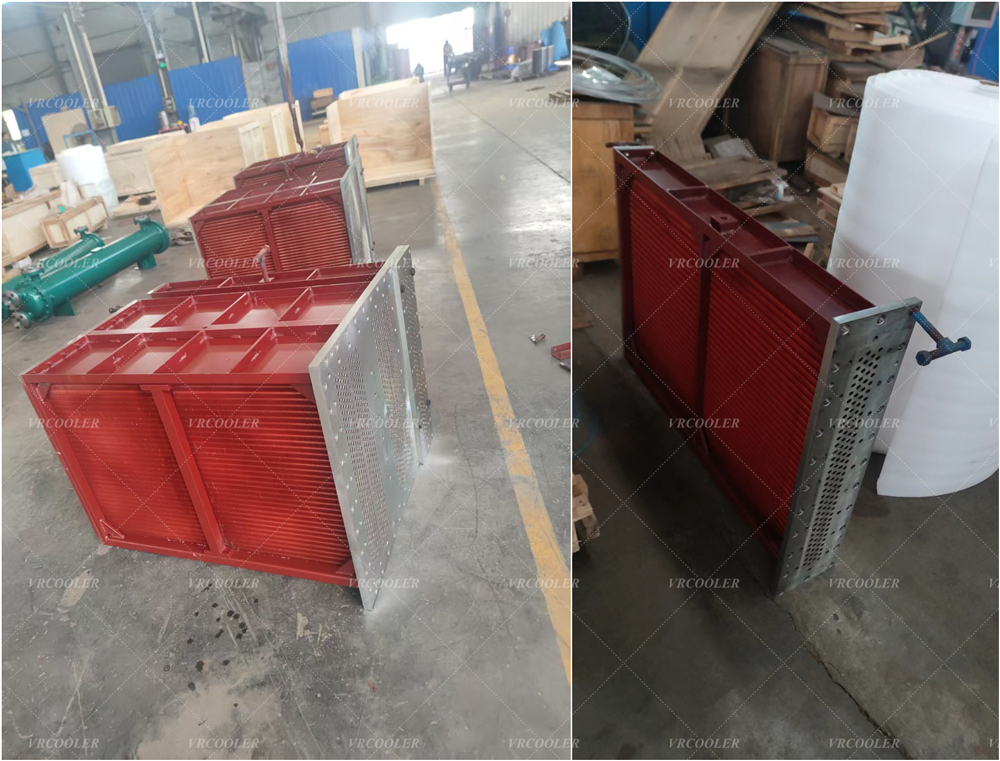

HT circuit (high temperature) | LT circuit (low temperature) | |
|---|---|---|
What it cools | Cylinder block and heads (jacket water); often the first stage of the two-stage charge-air cooler; exhaust manifold on some engines | Second stage of the charge-air (mixture) cooler; lube oil cooler; sometimes generator air cooler, fuel gas cooler |
Why that temperature | Engine must run hot for thermal efficiency, oil film stability and clean combustion | Mixture must be cold for knock margin, higher power density and lower NOx |
Temperature level | The hotter loop — set by the engine maker's thermostat | The cooler loop — typically much closer to ambient |
Heat load | The larger share of engine heat rejection | Smaller share, but it must be rejected at a lower temperature, which makes it harder |
Radiator approach | Large difference to ambient — radiator section works easily | Small difference to ambient — needs more coil surface per kW; sized for the hottest day |
Sensitivity | Over-temperature → engine derate / shutdown | Over-temperature → knock, derate, emissions excursion — often the first limit on a hot day |
Heat recovery (CHP) | Prime source — hot, steady | Usually too cool to recover usefully; goes to the radiator |
Coolant | Water-glycol per engine maker | Water-glycol per engine maker; same or separate expansion tank |
Thermostat | Yes — holds HT inlet temperature | Often a separate thermostat or control valve for LT |
Reason | Explanation |
|---|---|
Knock control | Gas engines run lean with high compression; a hot mixture detonates. The LT circuit keeps the mixture cold enough to stay knock-free at full load |
Power density | Colder, denser mixture = more air and fuel per cycle = more power from the same engine |
Emissions | Lower mixture temperature lowers peak combustion temperature and NOx formation |
Engine efficiency | The block must still run hot — a cold block wastes fuel and promotes condensation and wear. Only a separate HT loop allows this |
Two-stage charge-air cooling | Turbocharged gas engines cool the charge air in two stages: first against HT water (removing the bulk), then against LT water (reaching the low target temperature). Two loops are inherent in this design |
Lube oil temperature | Oil wants to be cooler than the block; LT water does this without a third loop |
Diesel engines increasingly use HT/LT as well for the same charge-air reasons, but gas engines have no choice — the LT mixture temperature is part of the knock-management design.
Consequence | Design response (CSTHEATEXCHANGER) |
|---|---|
Two circuits, two temperatures | Two separate coil sections — one HT, one LT — hydraulically isolated |
LT has the hardest job on a hot day | LT section placed in the coldest air (first in the airflow) or in its own unit; more surface per kW |
Each circuit has its own flow and pressure-drop limit from the engine maker | Each section sized to flow and external restriction limits (see our pressure-drop article) |
Fans serve both | Common fan bank with shared airflow — LT first, HT second; or separate units with independent fan control |
Extreme ambient | Rated −40 °C to +50 °C per our remote radiator product data |
Low pressure drop | Tube and coupling design engineered for low pressure drop — max 100 kPa at water design condition on our engine cooler range |
High Temperature and Low Temperature — the two separate coolant circuits on the engine.
HT cools the engine block and heads (and first-stage charge air) and runs hot; LT cools the mixture cooler and lube oil and runs much cooler.
To keep the gas-air mixture cold (knock, power, NOx) while keeping the engine block hot (efficiency) — one loop cannot do both.
Usually the LT circuit — its small temperature difference to ambient means it runs out of cooling capacity first.
Yes — dual circuit remote radiators and dry coolers for gas gensets, combined or separate units, with thermal design data for both circuits.
Send CSTHEATEXCHANGER the engine maker's HT and LT data — heat rejection, flow, inlet/outlet temperatures and external restriction limit for each circuit — plus site peak ambient and altitude. We will return a dual circuit radiator design with both sections sized and a drawing for approval.
