An air cooler for a quench tank (also called a dry cooler for quench oil or an air-cooled heat exchanger for quenching) is an outdoor or factory-roof heat exchanger that cools hot quenching oil in a closed, water-free loop. During metal heat treatment, steel and alloy parts heated to 850 °C–950 °C are plunged into an agitated quench tank containing tens of thousands of liters of quenching oil. The quench oil absorbs massive burst thermal loads, heating up rapidly. A circulation pump pushes the hot quench oil (typically 60 °C to 90 °C) through heavy-duty finned tube bundles inside the dry cooler, where direct ambient air drawn by axial fans cools the oil back to its operating set point (typically 40 °C to 60 °C for cold oil quenching, or 70 °C to 90 °C for warm oil quenching) before returning it to the tank. CSTHEATEXCHANGER manufactures industrial air coolers and dry coolers engineered specifically for quenching oil, eliminating water contamination risks, eliminating water consumption, and stabilizing metallurgical hardness and distortion repeatability.
In heat treatment facilities, the quench tank is where the final metallurgical microstructure (martensite, bainite) is fixed:
Critical cooling rate: Steel components must be cooled fast enough to avoid the pearlite/ferrite transformation nose, but uniformly enough to prevent cracking and distortion.
Oil temperature consistency: Quenching oil viscosity, cooling speed, and vapor-blanket duration depend directly on oil temperature. If oil temperature drifts by more than ±3 °C to ±5 °C between batches, component hardness and case depth vary, leading to rejected parts.
Severe burst thermal loads: In batch furnaces, several tons of red-hot steel enter the oil in seconds, releasing megawatts of instantaneous thermal energy that the cooling system must remove before the next cycle.
Historically, heat treaters used open cooling towers with shell-and-tube heat exchangers. Today, modern heat treatment plants worldwide have converted to closed-loop dry coolers (air coolers) for four decisive engineering reasons:
Evaluation criteria | Air Cooler / Dry Cooler (CSTHEATEXCHANGER) | Open Cooling Tower + Shell-and-Tube Exchanger |
|---|---|---|
Catastrophic water contamination risk | Zero. 100% dry air cooling. No water exists near the quench oil circuit | Severe risk. A tube leak inside a shell-and-tube exchanger allows water into the quench oil. Water in hot oil causes steam explosion, tank foam-over, and catastrophic furnace fires |
Water consumption & treatment | Zero water use. No water supply, no chemical biocides, no blowdown | Continuous water evaporation, scale inhibitors, biocide dosing, legionella compliance |
Winter freezing & fouling | Closed loop with clean oil. No scaling on air side | Cooling tower basin freezes; shell-and-tube water passages foul with algae, silt, and calcium scale |
Operating temperature stability | Quench oil at 60 °C–90 °C has a large temperature difference to ambient air (ΔT=30–60 KΔT=30–60 K), allowing dry air to cool it easily year-round | Tower wet-bulb approach is unnecessary for high-temperature quench oil |
Maintenance requirement | Periodic fan motor check and air-side fin washing | Frequent heat exchanger descaling, tower basin sludge cleanout, nozzle unblocking |
[Furnace / Heating Chamber: 850–950°C]
│ (Hot Steel Load)
▼
┌────────────────────────────────────────────────────────┐
│ QUENCH OIL TANK (Agitated Oil Bath: 50–70°C) │
└─────────────────────────┬──────────────────────────────┘
│ Hot Oil (65–85°C)
▼
[Oil Circulation Pump & Strainer]
│
▼
┌────────────────────────────────────────────────────────┐
│ CSTHEATEXCHANGER QUENCH OIL AIR COOLER / DRY COOLER │
│ (Heavy-Duty Seamless Tubes + Heavy Aluminum Fins) │
│ Axial Fans Reject Heat Directly to Ambient Air │
└─────────────────────────┬──────────────────────────────┘
│ Cooled Oil (45–60°C)
▼
[Oil Distributor Manifold into Quench Tank]Agitation and extraction: High-velocity tank agitators sweep oil across the submerged parts. An extraction suction manifold draws hot oil from the upper zone of the tank through a basket strainer.
Pumping to air cooler: A positive displacement or centrifugal oil pump circulates hot oil out of the building to the outdoor CSTHEATEXCHANGER dry cooler.
Direct air-side heat rejection: Oil flows through staggered seamless copper or carbon/stainless steel tubes. Direct-drive axial fans push ambient air across the corrugated fin pack, carrying heat away into the atmosphere.
Thermostatic temperature control: A three-way thermostatic mixing valve or fan speed inverter modulates airflow, ensuring oil returns to the quench tank at the precise set point (e.g., 55 °C ± 2 °C).
Sizing an air cooler for quenching oil requires calculating the hourly heat rejection from the furnace throughput:
Qquench=Msteel⋅cp,steel⋅(Tquench−Texit)Δt+QfixturesQquench=ΔtMsteel⋅cp,steel⋅(Tquench−Texit)+Qfixtures
Where:
MsteelMsteel = Total mass of steel parts quenched per batch or per hour (kg).
cp,steelcp,steel = Specific heat of steel (~0.68 kJ/kg·K at elevated temperatures).
TquenchTquench = Part temperature entering oil (e.g., 880 °C).
TexitTexit = Part temperature leaving oil (e.g., 80 °C).
ΔtΔt = Batch cycle time (hours).
QfixturesQfixtures = Heat carried in by steel baskets, trays, and fixtures (~15–25% of part mass).
Design for summer peak ambient: Always size the dry cooler for the facility's maximum summer dry-bulb temperature (e.g., 38 °C or 42 °C).
Oil viscosity correction: Quenching oils have higher viscosity than water, which lowers the internal tube-side Reynolds number. CSTHEATEXCHANGER engineers use proprietary laminar/transitional oil heat transfer algorithms and turbulator inserts where required to maximize heat transfer.
Allowable oil pressure drop (ΔPΔP): Sized to keep oil pressure drop below 50 to 100 kPa, avoiding excessive pump motor energy and oil shear heating.
If a water heat exchanger develops a tube leak, high-pressure water injects into the quench oil. When hot steel is quenched, this water flashes to steam, causing catastrophic oil boil-over, tank explosions, and massive fires. Air coolers eliminate water entirely from the oil loop.
Standard cold quench oil operates at 40 °C to 65 °C; warm/hot martempering oils operate at 70 °C to 120 °C.
Yes, provided the dry cooler is sized with an adequate surface area margin based on the site's maximum summer dry-bulb temperature.
We manufacture heavy-gauge seamless copper, carbon steel, or stainless steel tubes with thick-gauge corrugated aluminum fins (0.17 mm–0.25 mm) or pre-coated anti-corrosion fins, housed in hot-dip galvanized steel frames.
Send CSTHEATEXCHANGER your furnace batch weight (kg), parts material, quench cycle time (minutes), furnace temperature, target quench oil temperature, oil type, and site summer maximum ambient. Our engineers will provide a verified thermal sizing report, oil pressure drop calculation, and dimensional CAD drawing.
Email: info@cstheatexchanger.com
International business: +86 0519 8878 2189
Website: https://www.cstheatexchanger.com/

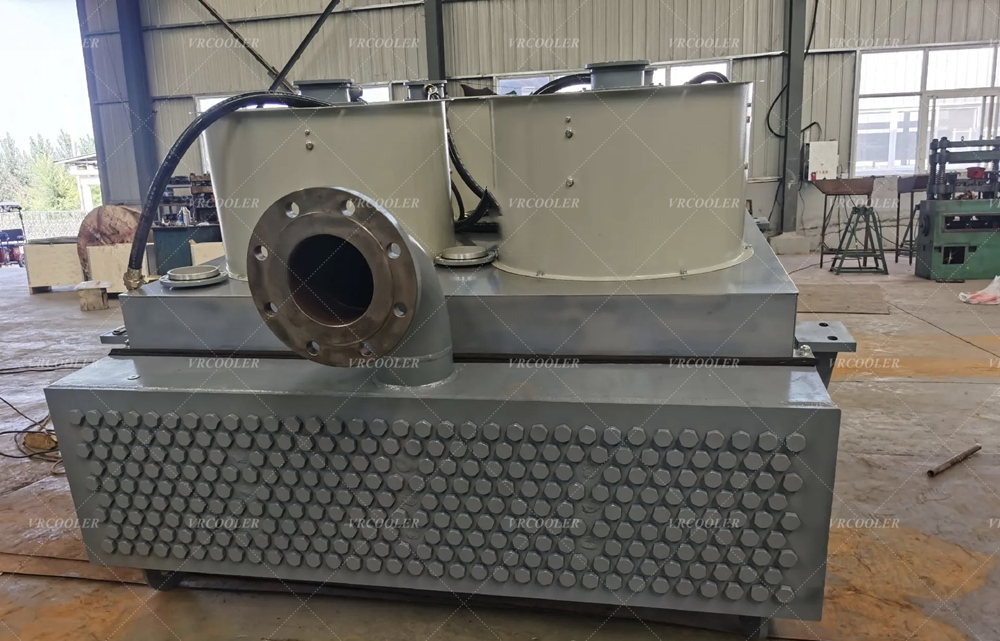

CSTHEATEXCHANGER — heavy-duty air-cooled heat exchangers and dry coolers for heat treatment and quench tank oil cooling
