Cold chain warehouses play a critical role in preserving frozen foods, pharmaceuticals, and temperature-sensitive products. At the core of a freezer room’s refrigeration system is the unit cooler, responsible for maintaining stable low temperatures, ensuring uniform airflow, and protecting product quality throughout storage and distribution.
A properly selected freezer room unit cooler directly impacts energy efficiency, storage safety, and long-term operating costs in cold chain logistics.

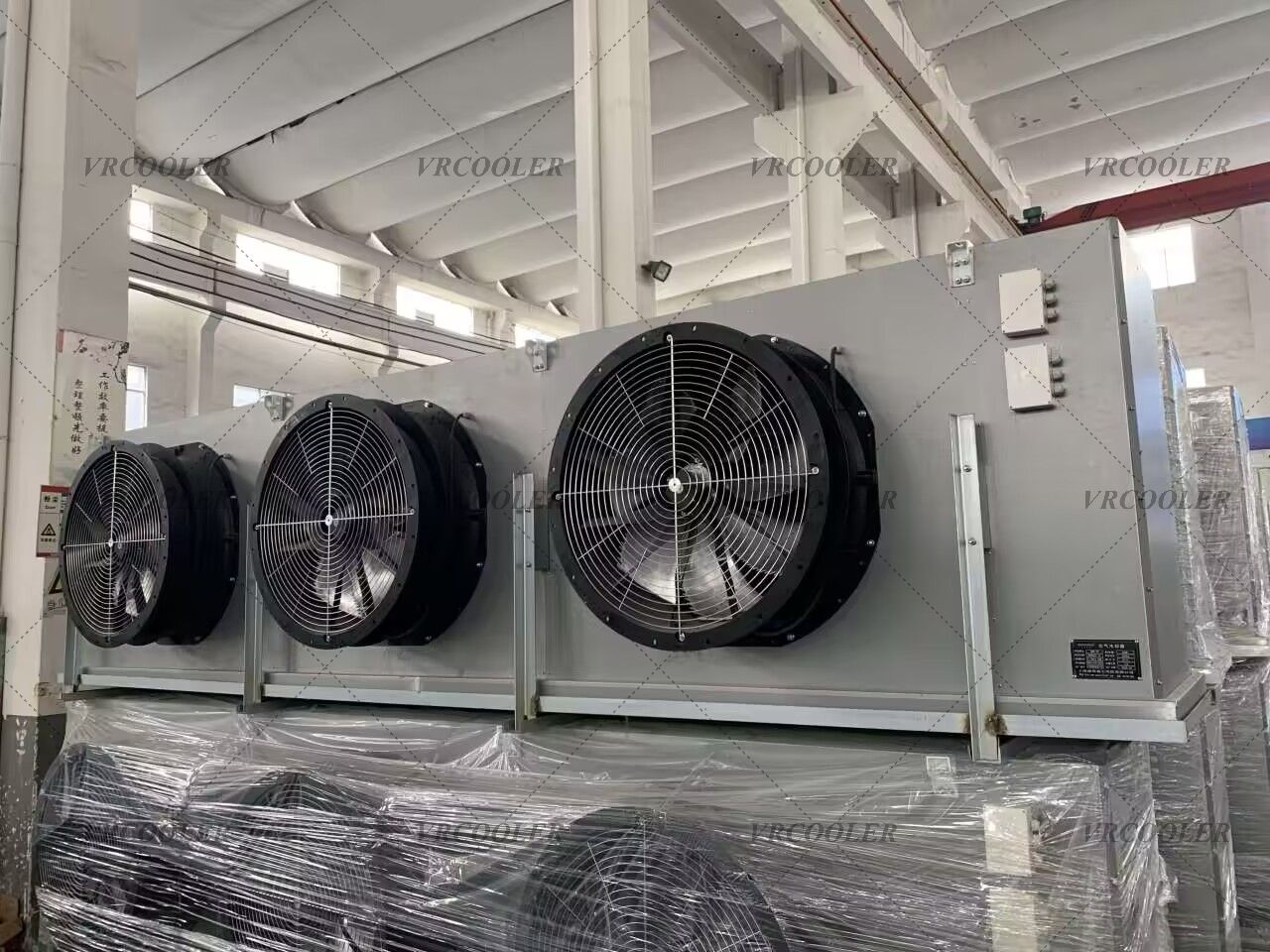

A freezer room unit cooler is an air-cooling evaporator unit installed inside cold storage rooms. It removes heat from the room air through refrigerant evaporation and circulates cold air evenly across stored products.
Typical operating temperatures include:
Frozen food storage: –18°C to –25°C
Deep-freeze or blast storage: –30°C to –40°C
Unit coolers are widely used in:
Frozen food warehouses
Cold chain distribution centers
Meat, seafood, and poultry storage
Pharmaceutical cold storage facilities
Freezer room unit coolers are designed with:
High-surface-area finned coils
Optimized tube circuits for low evaporating temperatures
Efficient refrigerant distribution
This ensures fast pull-down and stable temperature control even under frequent door openings and high product turnover.
Cold chain warehouses require consistent temperature across large storage volumes. Unit coolers are equipped with:
Axial or EC fans with optimized airflow patterns
Even air throw and return design
Reduced dead zones and hot spots
Uniform airflow helps prevent partial thawing and freezer burn.
At low temperatures, frost accumulation is unavoidable. Freezer room unit coolers typically support:
Electric defrost
Hot gas defrost
Water defrost (for specific applications)
Reliable defrosting ensures continuous operation, stable capacity, and reduced maintenance.
Cold chain warehouses often involve high humidity and frequent washdowns. Unit coolers are available with:
Aluminum fins with epoxy or hydrophilic coatings
Stainless steel or coated steel housings
Stainless steel drain pans
These features extend service life and improve hygiene.
Freezer room unit coolers can be engineered for multiple refrigerants and systems, including:
Ammonia (NH₃) for large industrial cold stores
CO₂ (R744) transcritical or cascade systems
HFC/HFO refrigerants for commercial cold chain facilities
Secondary refrigerants such as glycol
They are compatible with centralized refrigeration plants and modular freezer designs.
Modern unit coolers contribute significantly to cold chain sustainability by offering:
Low fan power consumption (especially with EC fans)
Reduced defrost energy losses
Optimized air-side pressure drop
Stable operation at low evaporating temperatures
These benefits translate into lower electricity costs and improved warehouse uptime.
Using properly selected freezer room unit coolers provides:
Stable frozen storage temperatures
Extended shelf life of frozen goods
Reduced product dehydration and weight loss
Lower risk of temperature excursions
Compliance with cold chain regulations and audits
This is especially important for export-oriented and pharmaceutical cold chain operations.
When choosing a freezer room unit cooler for a cold chain warehouse, key parameters include:
Room size and storage height
Required storage temperature
Product type and loading pattern
Refrigerant and system design
Defrost method and control strategy
Custom-designed unit coolers can be tailored to high-bay warehouses or automated cold storage systems.
A freezer room unit cooler is a critical component in cold chain warehouses, directly influencing storage reliability, energy efficiency, and product safety. With robust construction, efficient heat exchange, and reliable defrost performance, modern unit coolers provide the dependable low-temperature environment required for frozen logistics.
