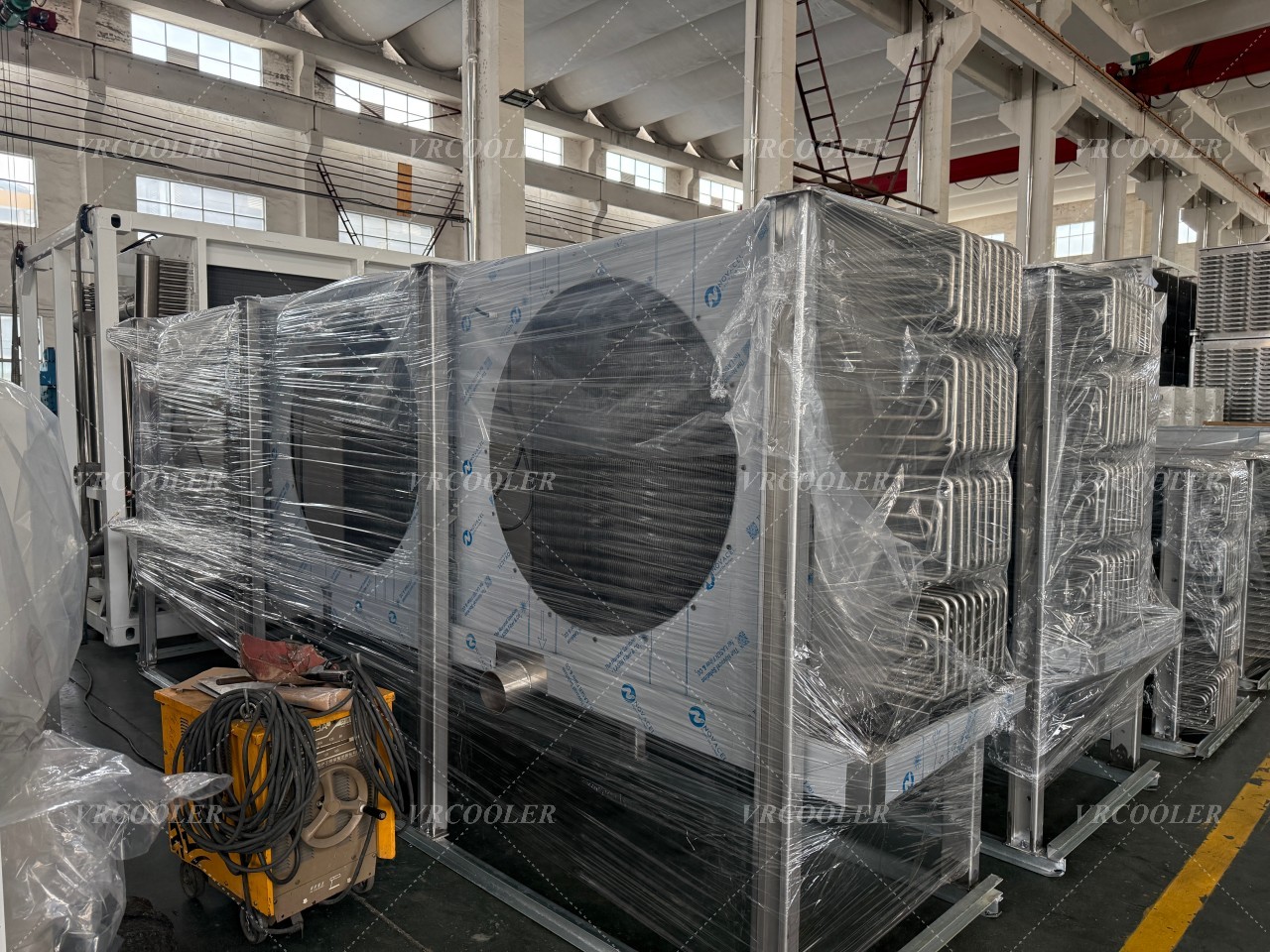

Stainless Steel Freezer Coils for IQF Fire-Roasted Vegetables

Individually Quick Frozen (IQF) fire-roasted vegetables—such as peppers, onions, corn, zucchini, and eggplant—are increasingly demanded by the foodservice and ready-meal sectors. These products combine high sensory quality (roasted flavor, caramelization, texture) with extended shelf life, placing strict requirements on freezing systems.

At the heart of an IQF tunnel or spiral freezer lies the freezer evaporator coil, which determines freezing speed, hygiene level, and long-term operational reliability. For fire-roasted vegetables, stainless steel freezer coils are widely regarded as the optimal solution.

Why Fire-Roasted Vegetables Require Specialized Freezer Coils

Compared with raw vegetables, fire-roasted products present unique challenges:

• Higher surface oil and sugar content from roasting

• Sticky residues and particulates that increase fouling risk

• Stricter hygiene standards due to ready-to-eat or minimally processed positioning

• Rapid freezing requirements to lock in roasted flavor and prevent moisture loss

Stainless steel freezer coils address these challenges more effectively than traditional carbon steel or aluminum solutions.

Advantages of Stainless Steel Freezer Coils in IQF Applications

1. Superior Hygiene and Food Safety

Stainless steel (typically AISI 304 or 316L) offers:

• Non-porous, smooth surfaces that resist bacterial adhesion

• Full compatibility with CIP (Clean-in-Place) and aggressive sanitation chemicals

• Compliance with FDA, EHEDG, and HACCP food safety standards

This is critical for IQF fire-roasted vegetables that often bypass further cooking before consumption.

2. Excellent Corrosion Resistance

Roasted vegetable processing environments expose coils to:

• Organic acids from vegetables

• Cleaning agents (alkaline and acidic)

• High humidity and frequent washdowns

Stainless steel freezer coils provide long-term resistance to corrosion, pitting, and stress cracking, extending service life and reducing downtime.

3. High Freezing Efficiency and Uniform Airflow

Modern stainless steel freezer coils are engineered with:

• Optimized tube spacing and fin geometry

• High air-side heat transfer coefficients

• Uniform airflow distribution across the IQF belt or bed

This ensures rapid crust-freezing, minimal clumping, and consistent IQF quality across all vegetable pieces.

4. Reduced Fouling and Easier Cleaning

Compared with coated carbon steel coils, stainless steel:

• Resists oil and sugar adhesion from roasted surfaces

• Allows faster and more effective defrost cycles

• Minimizes productivity loss due to coil blockage

This is especially valuable in high-throughput IQF lines operating multiple shifts.

Design Features of Stainless Steel IQF Freezer Coils

Typical design characteristics include:

• Tube material: AISI 304 or 316L stainless steel

• Fin material: Stainless steel or stainless-clad aluminum (application-dependent)

• Tube configuration: Serpentine or multi-circuit design for precise refrigerant control

• Refrigerants: Ammonia (NH₃), CO₂, or glycol secondary systems

• Defrost options: Hot gas, water defrost, or electric defrost

Coils can be custom-engineered to fit IQF tunnels, fluidized bed freezers, or spiral freezers.

Performance Benefits for IQF Fire-Roasted Vegetables

Using stainless steel freezer coils delivers measurable processing advantages:

• Faster freezing rates, preserving roasted aroma and texture

• Lower dehydration and weight loss

• Reduced product sticking and agglomeration

• Stable operation under high oil and particulate loads

• Consistent product quality batch after batch

These benefits directly impact yield, brand reputation, and operating cost.

Sustainability and Lifecycle Value

Although stainless steel freezer coils have a higher initial investment, they offer:

• Longer service life than carbon steel alternatives

• Lower maintenance and cleaning costs

• Reduced risk of contamination-related recalls

• Improved energy efficiency through clean heat transfer surfaces

For IQF processors focused on premium vegetable products, the total cost of ownership is significantly lower.

Conclusion

Stainless steel freezer coils are a critical component in IQF systems for fire-roasted vegetables. Their unmatched hygiene, corrosion resistance, and thermal performance make them ideally suited for demanding food processing environments.

For processors aiming to deliver safe, high-quality IQF fire-roasted vegetables while maintaining operational efficiency and regulatory compliance, stainless steel freezer coils represent a robust, future-proof solution.
