Hydrogen-cooled turbine generators are widely used in large thermal, nuclear, and combined-cycle power plants due to their high power density, superior cooling efficiency, and reduced windage losses. In these generators, hydrogen coolers are critical auxiliary components that remove heat from the circulating hydrogen gas and maintain stable operating temperatures for the stator and rotor.
Reliable hydrogen cooler performance directly affects generator efficiency, insulation life, operational safety, and overall plant availability.
In a hydrogen-cooled generator:
Hydrogen gas circulates inside the generator casing
Heat generated by stator windings, rotor, and core losses is absorbed by hydrogen
The hot hydrogen passes through hydrogen coolers, where heat is transferred to a secondary cooling medium (typically water)
Cooled hydrogen is recirculated back into the generator
This closed-loop cooling system allows large generators (often 100–1,000+ MW) to operate efficiently at high electrical outputs.
Hydrogen is selected as a cooling medium because it offers:
High thermal conductivity (approximately 7× that of air)
Low density, reducing windage and friction losses
Improved generator efficiency and compact design
Enhanced heat removal from critical components
Hydrogen coolers must be precisely engineered to leverage these advantages while ensuring safe and stable operation.

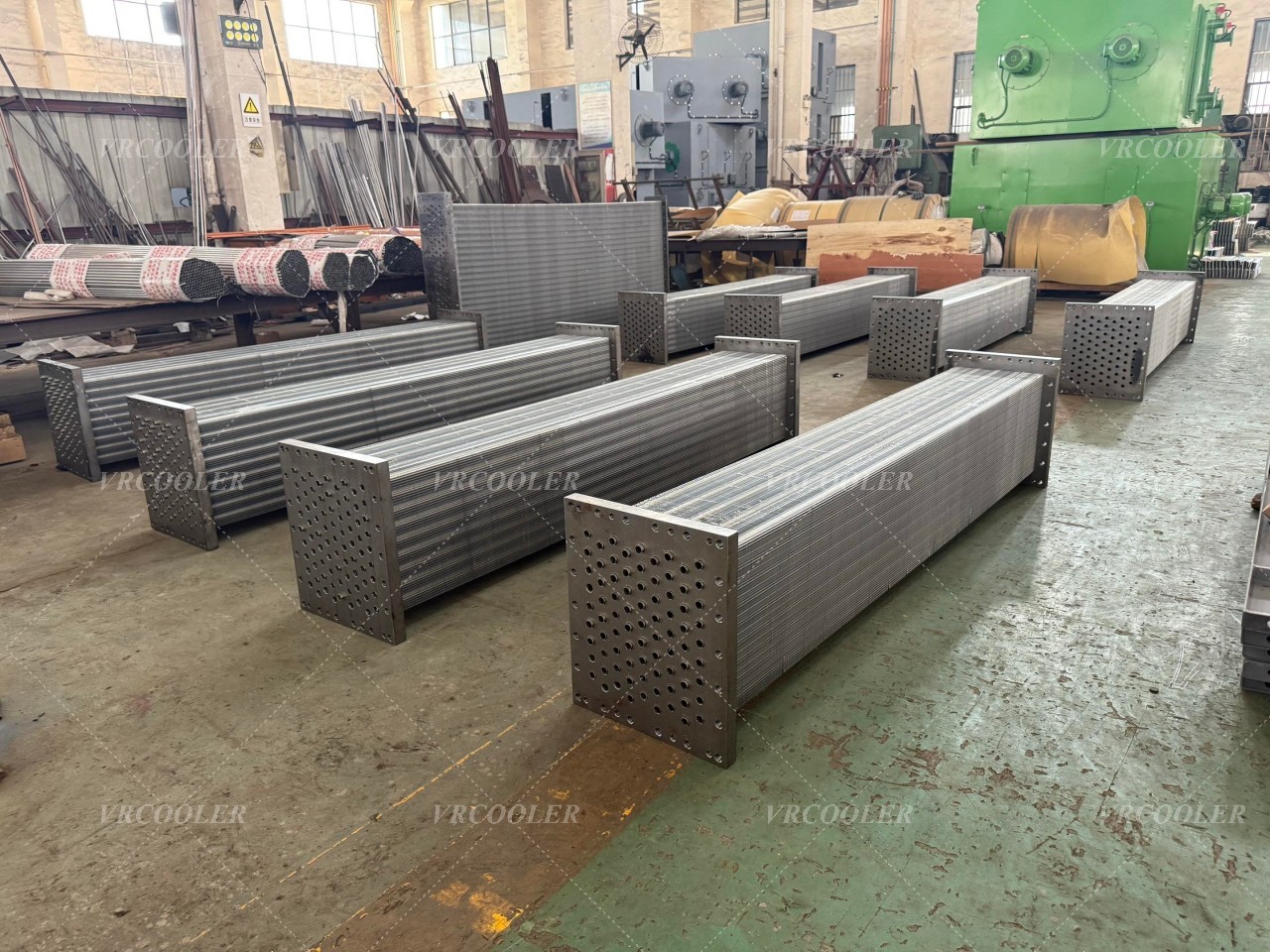

Hydrogen coolers used in turbine generators typically feature:
Installed inside the generator casing or as external modules connected to the hydrogen circuit
Strict dimensional tolerances to fit OEM generator designs
Optimized tube bundle layout for uniform hydrogen flow
High heat transfer coefficients on the hydrogen side
Low hydrogen pressure drop to maintain circulation efficiency
Stable cooling performance across variable generator loads
Hydrogen-tight tube-to-tubesheet joints
Multi-layer sealing to prevent hydrogen-to-water leakage
Pressure-tested designs compliant with power industry standards
Material selection is critical, especially in plants using aggressive cooling water:
Tube materials: Stainless steel, copper-nickel alloys, titanium, or duplex stainless steel
Tubesheets and headers: Carbon steel with corrosion protection or stainless steel
Gaskets and seals: Hydrogen-compatible, low-permeability materials
For coastal and offshore power plants, hydrogen coolers are often designed for open-loop seawater cooling, requiring enhanced resistance to chloride-induced corrosion and biofouling.
Hydrogen coolers can be designed for different secondary cooling systems, including:
Closed-loop demineralized water
Open-loop seawater
Cooling tower water
Plate heat exchanger–based intermediate cooling systems
The choice depends on site conditions, water availability, and corrosion risk.
Well-designed hydrogen coolers deliver:
Stable stator and rotor temperatures
Extended insulation and bearing life
Improved generator efficiency and availability
Reduced forced outages due to overheating
Safe hydrogen operation under continuous base-load conditions
These benefits are essential for large turbine generators operating at high capacity factors.
Many power plants undertake hydrogen cooler replacement projects to:
Address corrosion or tube leakage
Restore original thermal performance
Improve compatibility with new cooling water conditions
Extend generator service life without major redesign
Custom-engineered hydrogen coolers can be supplied as drop-in replacements, minimizing outage duration and installation risk.
Hydrogen coolers are mission-critical components in hydrogen-cooled turbine generators, ensuring efficient heat removal, operational safety, and long-term reliability. With proper thermal design, material selection, and sealing technology, modern hydrogen coolers support the demanding requirements of large-capacity power generation.
