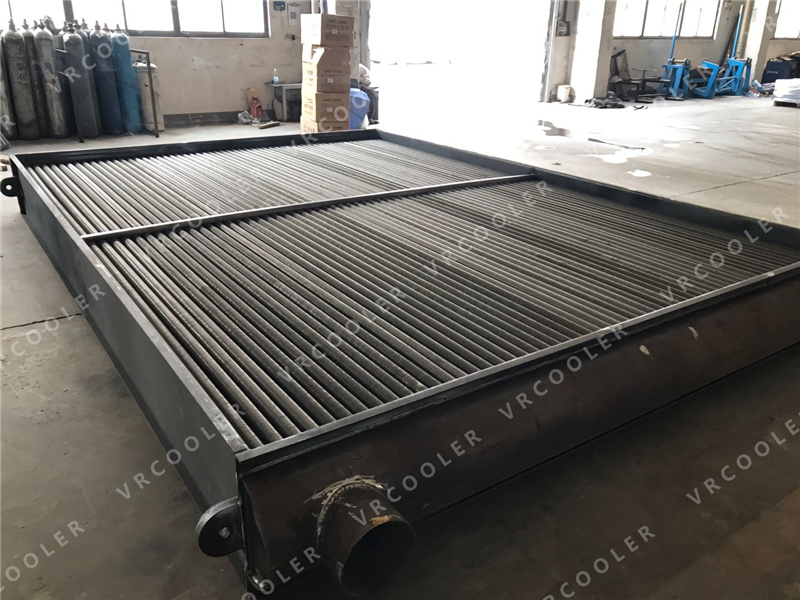

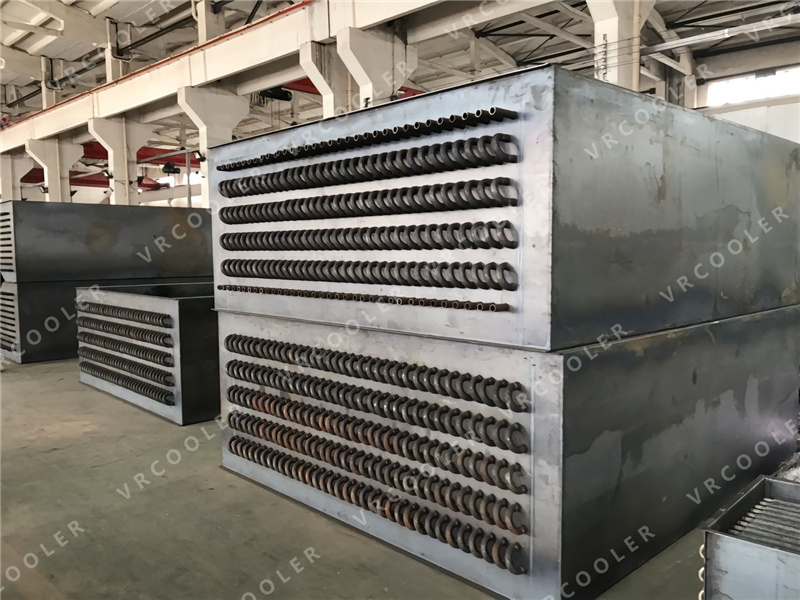

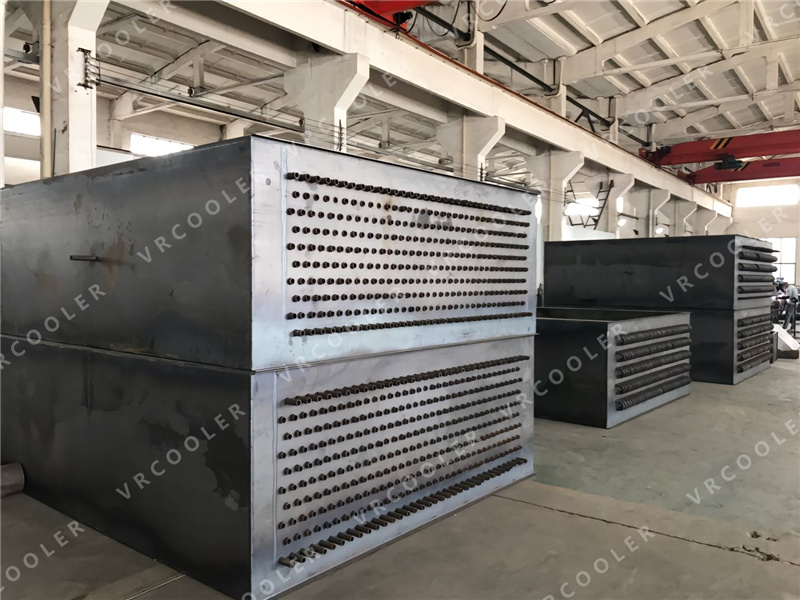

Finned tube heat exchanger in Combined Heat and Power system

A finned tube heat exchanger is a type of heat exchanger that utilizes extended surface area, or fins, to improve heat transfer efficiency. This type of heat exchanger is commonly used in Combined Heat and Power (CHP) systems to enhance heat recovery and overall system efficiency.

Here's how a finned tube heat exchanger works in the context of a CHP system:

Combined Heat and Power (CHP) System Overview:

A CHP system, also known as cogeneration, simultaneously generates electricity and useful heat from a single energy source, typically a gas turbine or an internal combustion engine. The waste heat produced during electricity generation is a valuable resource that can be captured and used for various applications.

Waste Heat Recovery:

In a CHP system, the waste heat generated by the engine or turbine is a byproduct of the power generation process. This waste heat can be recovered and utilized to increase the overall efficiency of the system.

Finned Tube Heat Exchanger:

A finned tube heat exchanger is often employed as part of the waste heat recovery system in a CHP setup. The hot exhaust gases from the power generation process pass through tubes equipped with fins. These fins significantly increase the surface area available for heat exchange.

Heat Transfer Process:

As the hot exhaust gases flow over the finned tubes, heat is transferred from the gases to the tubes. The extended surface area provided by the fins enhances the heat transfer efficiency. This process preheats a fluid circulating within the tubes, commonly water or another heat transfer fluid.

Preheating Applications:

The preheated fluid leaving the finned tube heat exchanger can be used for various applications, depending on the specific needs of the facility. Common applications include preheating the feedwater for a boiler, providing space heating, or supporting industrial processes that require heat.

Improved Overall Efficiency:

By incorporating a finned tube heat exchanger for waste heat recovery, the CHP system improves its overall efficiency by maximizing the utilization of the available energy. This is especially important in CHP systems where the goal is to optimize both electricity and heat generation.

Tailored Design:

The design of the finned tube heat exchanger can be tailored to meet the specific requirements of the CHP system, considering factors such as the temperature of the waste heat, the flow rates of the fluids, and the desired heat recovery objectives.

The integration of a finned tube heat exchanger in a Combined Heat and Power system is a practical and efficient way to capture and utilize waste heat, contributing to energy savings and environmental sustainability.
