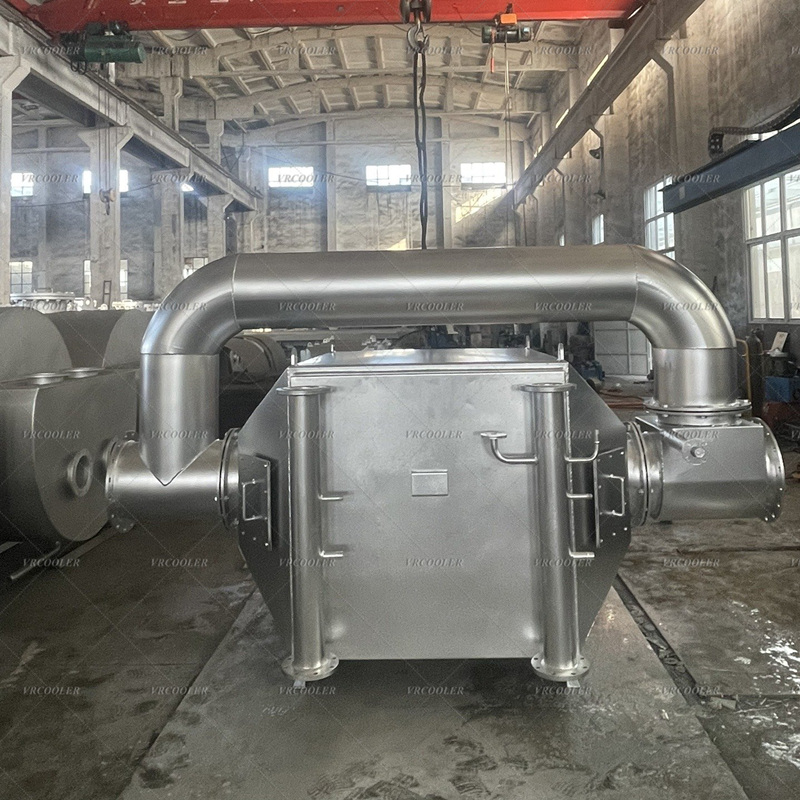

Finned Tube Exhaust Gas Heat Exchanger for Diesel Generator

Finned Tube Exhaust Gas Heat Exchanger for Diesel Generator

Working Principle

Heat Transfer Process: The hot exhaust gas from the diesel generator enters the finned - tube heat exchanger. The fins increase the heat transfer area on the outer surface of the tubes. As the exhaust gas flows over the finned tubes, heat is transferred from the exhaust gas to the tube walls and then to the coolant (usually water or heat - transfer oil) inside the tubes. The exhaust gas temperature decreases after releasing heat, and the coolant temperature rises after absorbing heat. The cooled exhaust gas is then discharged into the atmosphere, and the heated coolant can be used for other purposes, such as preheating combustion air, generating steam, or providing hot water for industrial processes.

Enhanced Heat Transfer Mechanism: The fins play a crucial role in enhancing heat transfer. They increase the effective surface area in contact with the exhaust gas, improving the heat transfer efficiency. Additionally, the fins promote turbulence in the exhaust gas flow, which further enhances the heat transfer coefficient.

Advantages

High Heat Transfer Efficiency: The finned - tube structure significantly increases the heat transfer area, enabling efficient heat exchange between the exhaust gas and coolant. This helps to recover a large amount of waste heat from the exhaust gas, improving the overall energy efficiency of the diesel - generating system.

Compact Structure: Compared to some other types of heat exchangers, the finned - tube exhaust gas heat exchanger has a relatively small volume and footprint. It can be easily installed in limited - space locations, such as on diesel generator sets or in industrial workshops.

Good Corrosion Resistance: When made of stainless steel or other corrosion - resistant materials, the heat exchanger can withstand the corrosive effects of the exhaust gas, which often contains acidic components such as sulfur dioxide and nitrogen oxides. This ensures a long service life and reliable operation.

Easy Maintenance: The modular design of the finned - tube heat exchanger makes it convenient for installation, disassembly, and maintenance. The finned tubes can be easily removed for cleaning or replacement if necessary.

Application

Diesel - Powered Power Generation Stations: In diesel - powered power plants, finned - tube exhaust gas heat exchangers are widely used to recover waste heat from the exhaust gas of diesel generators. The recovered heat can be used to preheat the incoming air, pre - heat the fuel, or generate steam for other processes, thereby improving the overall efficiency of the power plant.

Industrial Facilities: In industrial settings where diesel generators are used as backup power sources or for on - site power generation, finned - tube exhaust gas heat exchangers can be installed to recover waste heat and reduce energy consumption. The recovered heat can be used for heating water, space heating, or other industrial processes.

Marine Applications: On ships, diesel engines are commonly used for propulsion and power generation. Finned - tube exhaust gas heat exchangers can be installed on the exhaust systems of ship - board diesel engines to recover waste heat and provide hot water for ship - board facilities, such as showers, galley equipment, and heating systems. This helps to improve the energy efficiency of the ship and reduce fuel consumption.
