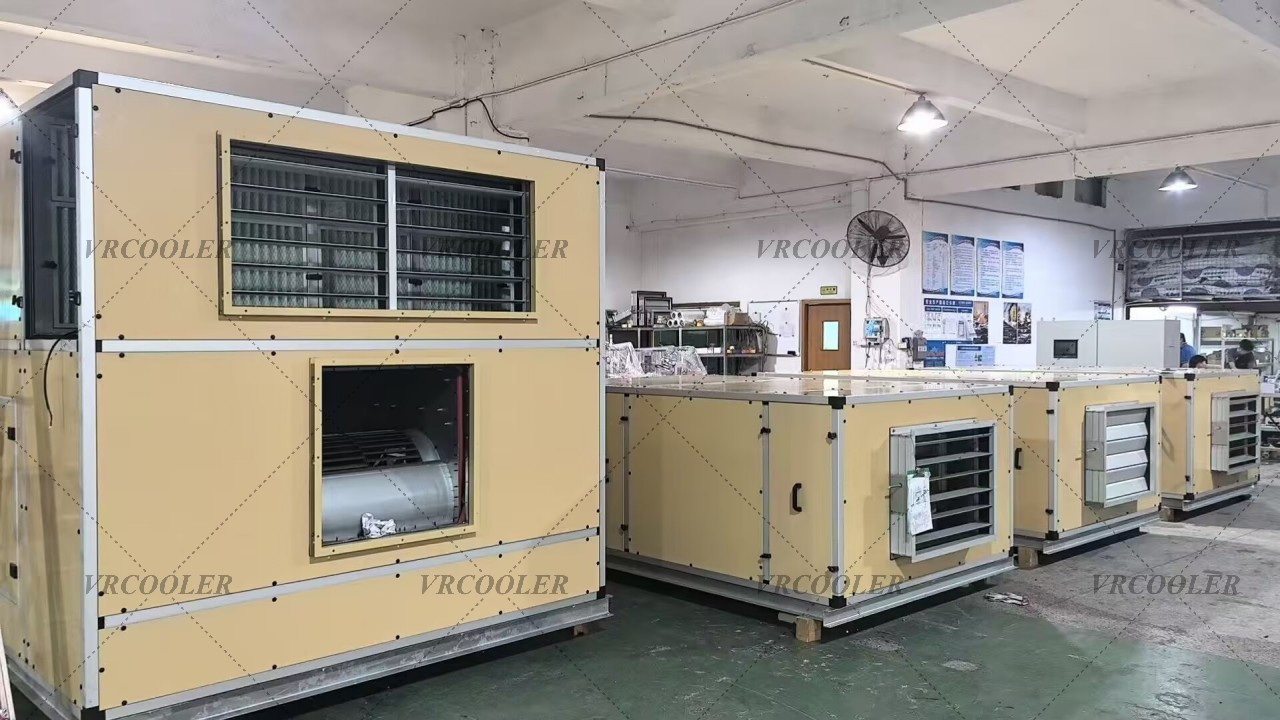

DX Packaged AHUs for Cleanrooms and Laboratories

Cleanrooms and laboratories require tightly controlled indoor environments to protect processes, products, and personnel. Temperature stability, humidity control, air cleanliness, and pressure differentials are all critical parameters governed by international standards such as ISO 14644, GMP, and various laboratory safety guidelines. DX (Direct Expansion) packaged air handling units have become a widely adopted solution for cleanrooms and laboratories due to their compact design, fast response, and integrated cooling capability.

What Is a DX Packaged AHU?

A DX packaged AHU is a self-contained air handling system in which the cooling coil is directly fed with refrigerant from an integrated or matched condensing unit. Unlike chilled water AHUs, DX packaged units do not require a central chiller plant, pumps, or extensive piping, making them especially attractive for facilities seeking simplified installation and rapid deployment.

These systems combine air filtration, cooling, heating (optional), humidification, dehumidification, and air distribution within a single engineered package.

Key Advantages for Cleanroom and Laboratory Applications

DX packaged AHUs offer several operational and compliance-related benefits that align well with cleanroom and laboratory requirements:

• Precise Temperature and Humidity Control: Rapid response of DX cooling allows tight control of environmental parameters, essential for sensitive experiments and pharmaceutical processes.

• Compact and Modular Design: Ideal for facilities with space constraints or retrofit projects where chilled water infrastructure is unavailable.

• Reduced Installation Complexity: Elimination of chillers and water piping shortens project timelines and lowers initial capital costs.

• Independent Zoning: Each cleanroom or laboratory can operate independently, minimizing cross-contamination risks and improving operational flexibility.

• High Reliability: Factory-assembled and tested systems ensure consistent performance and reduced commissioning risk.

Cleanroom-Focused Design Features

DX packaged AHUs for cleanrooms and laboratories are specifically engineered to meet stringent cleanliness and safety requirements:

• Multi-Stage Filtration: Pre-filters, fine filters, and terminal HEPA or ULPA filtration to achieve required ISO cleanroom classifications.

• Hygienic Construction: Double-skin panels, smooth internal surfaces, and corrosion-resistant materials to support cleaning and disinfection.

• Airflow and Pressure Control: Variable airflow control with EC or VFD-driven fans to maintain positive or negative pressure regimes.

• Low Leakage Design: High casing tightness prevents infiltration and exfiltration, supporting contamination control.

• Integrated Controls: Advanced PLC or BMS-ready controls for monitoring temperature, humidity, pressure, and filter status.

Typical Applications

DX packaged AHUs are widely used in:

• Pharmaceutical cleanrooms (sterile and non-sterile)

• Biotechnology and life sciences laboratories

• Hospital laboratories and isolation rooms

• Electronics and semiconductor clean areas

• Research and testing laboratories

Their scalability makes them suitable for both small modular cleanrooms and larger laboratory zones.

Energy Efficiency and Operational Considerations

Modern DX packaged AHUs incorporate energy-efficient technologies to reduce operating costs:

• High-efficiency scroll or inverter-driven compressors

• Electronic expansion valves for accurate refrigerant control

• EC plug fans with optimized fan curves

• Heat recovery options for exhaust air streams

• Smart defrost and capacity modulation to match real-time loads

When correctly selected and commissioned, DX packaged AHUs deliver stable performance while maintaining reasonable lifecycle costs.
