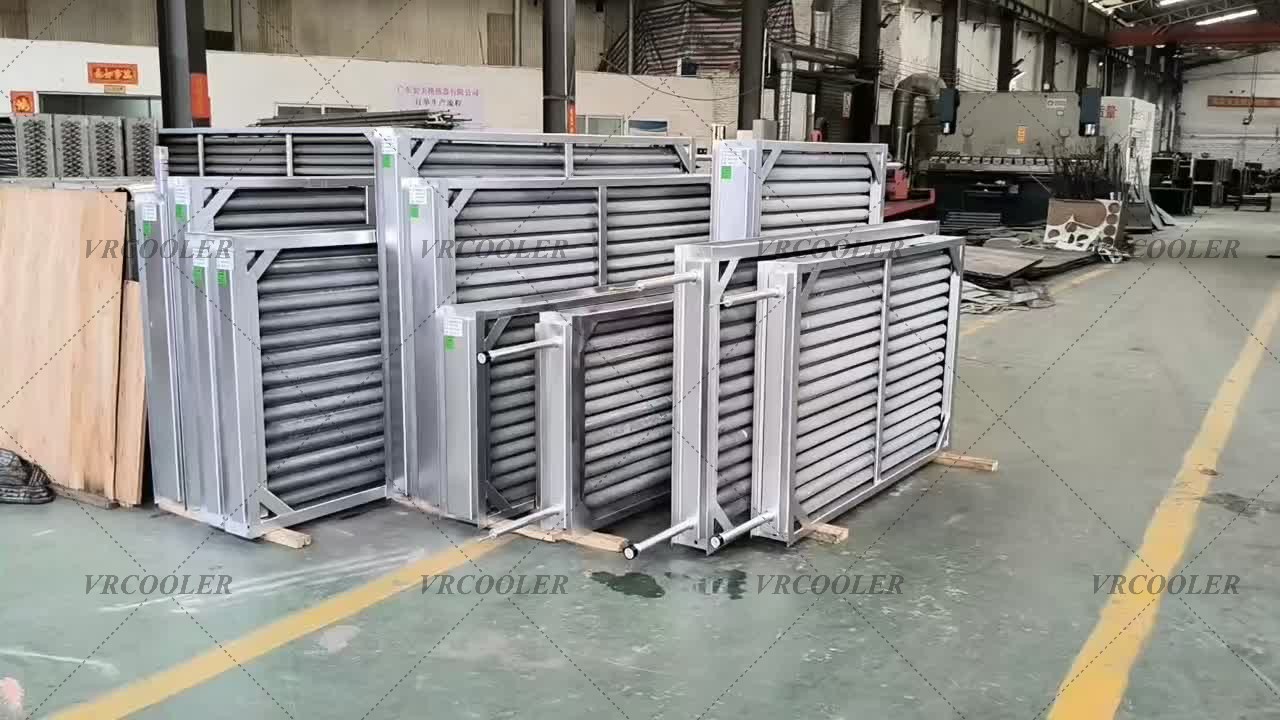

Finned Tube Radiator for Dryer in Fluidized Bed Systems

In industrial drying processes, especially fluidized bed dryer systems, stable and efficient heat supply is critical to product quality, energy efficiency, and continuous operation. A finned tube radiator heat exchanger is a proven and cost-effective solution for transferring heat from a boiler system to the hot air required for drying.

Designed for high air volumes and efficient heat transfer, finned tube radiators are widely used in chemical, pharmaceutical, food, fertilizer, mineral, and biomass drying applications.

Integration with a Fluidized Bed Dryer System

In a fluidized bed dryer, heated air is blown through a perforated plate to suspend and dry particles uniformly. The finned tube radiator is installed upstream of the air distributor, where it heats the incoming air supplied by the blower.

Typical system flow:

1. Boiler generates steam or hot water

2. Heating medium enters the finned tube radiator

3. Ambient air passes through the radiator and is heated

4. Hot air enters the fluidized bed for drying

This setup provides consistent drying conditions and high thermal efficiency.

Compatible Boiler Heating Media

Finned tube radiators can be designed to work with:

• Steam boilers (most common)

• Hot water boilers

• Thermal oil heaters

The choice depends on required air temperature, operating pressure, and process control needs.

Key Features of Finned Tube Radiator Heat Exchangers

• High heat transfer efficiency due to extended fin surface

• Compact and robust design for industrial environments

• Uniform air heating for stable fluidization

• Low air-side pressure drop

• Customizable size and capacity based on dryer airflow and temperature rise

• Easy integration with existing boiler systems

Design Information Required for Selection

To correctly size a finned tube radiator for your fluidized bed dryer, the following data is typically required:

• Required hot air temperature

• Airflow rate (m³/h)

• Boiler type and heating medium

• Inlet pressure and temperature

• Available installation space

• Allowable pressure drop (air and fluid side)

Conclusion

A finned tube radiator heat exchanger for a fluidized bed dryer is a reliable and efficient solution for utilizing boiler-generated heat in industrial drying systems. With high thermal performance, flexible design options, and proven reliability, it ensures consistent hot air supply and optimal drying performance.
