Fin tube heat pipe heat exchangers are an efficient and reliable solution for waste heat recovery and space heating in metallurgical workshops. These systems capture low- to medium-temperature waste heat from exhaust gases or hot process air and transfer it to fresh air or water circuits, significantly reducing fuel consumption and improving overall energy efficiency.
Metallurgical workshops typically generate substantial waste heat from:
Reheat furnaces and soaking pits
Electric arc furnaces (EAF) auxiliary exhaust
Induction furnaces
Heat treatment furnaces
Rolling mill cooling and exhaust systems
High-temperature process ventilation air
Much of this thermal energy is discharged to atmosphere unless an effective recovery system is installed.

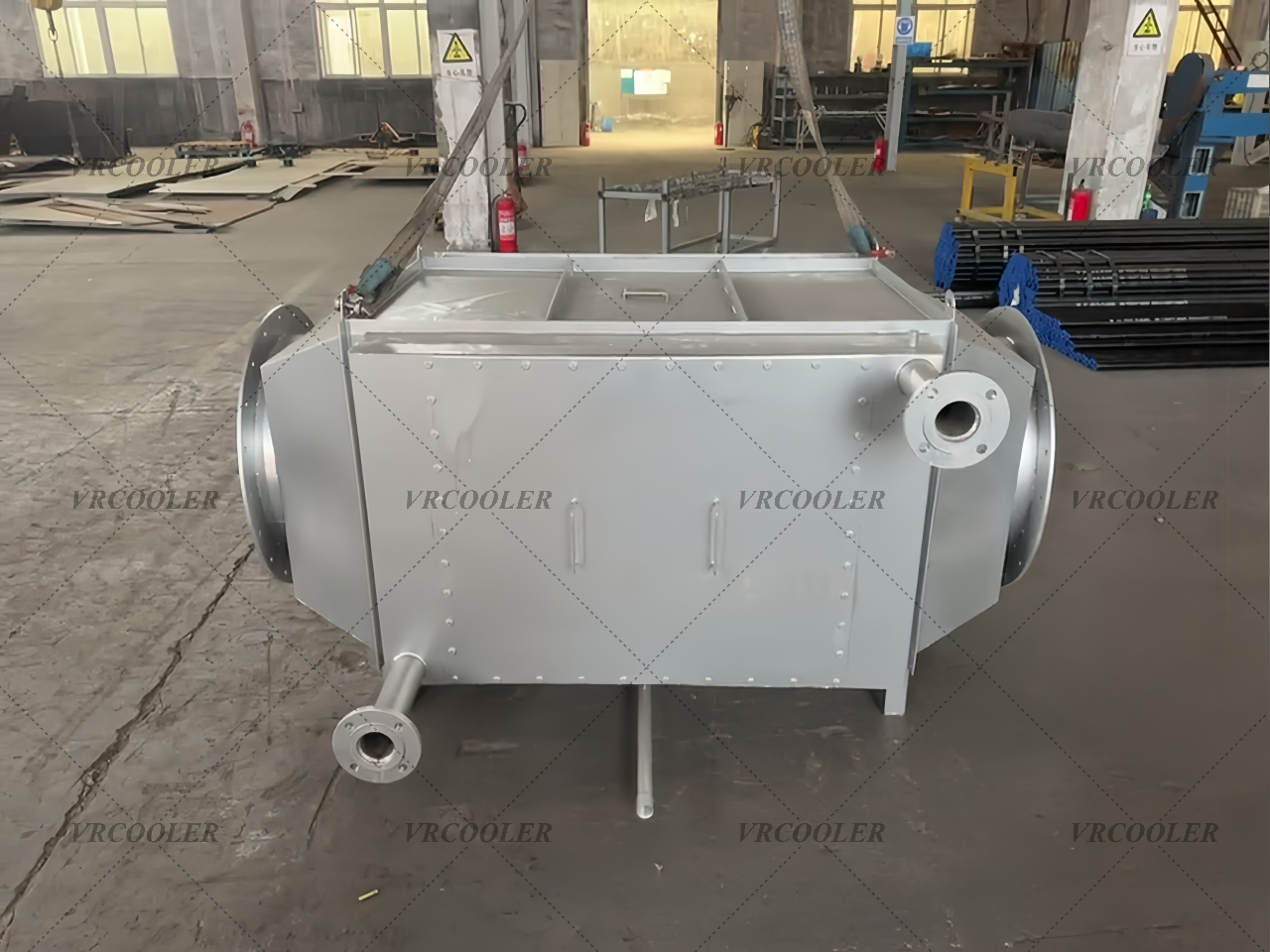

A fin tube heat pipe heat exchanger consists of multiple sealed heat pipes fitted with extended fins to maximize heat transfer. Each heat pipe contains a working fluid that:
Evaporates on the hot side when exposed to waste exhaust gas
Transfers latent heat internally with minimal temperature drop
Condenses on the cold side, releasing heat to fresh air or a heating medium
The condensed fluid returns to the evaporator section by gravity or capillary action, enabling passive, pump-free heat transfer.
The phase-change mechanism of heat pipes delivers:
High effective thermal conductivity
Fast response to load changes
Efficient recovery even at lower exhaust temperatures
This makes fin tube heat pipe exchangers ideal for variable metallurgical processes.
Hot exhaust gas and clean air are completely separated, ensuring:
Safe workshop heating
Compliance with occupational health requirements
Protection of downstream air handling equipment
This is critical in dusty or fume-laden metallurgical environments.
Fin tube heat pipe systems are engineered to withstand:
High exhaust gas temperatures
Dust, scale, and particulate loading
Thermal cycling and continuous operation
Materials such as carbon steel, stainless steel, or special alloys are selected based on process conditions.
With no moving parts inside the heat exchanger:
Power consumption is minimal
Maintenance is limited to periodic cleaning
System reliability is high over long service life
Fin tube heat pipe waste heat recovery systems are widely used for:
Workshop space heating using recovered exhaust heat
Combustion air preheating for furnaces
Make-up air heating for ventilation systems
Process air preheating in rolling and heat treatment lines
Recovered heat can often replace or supplement steam, gas, or electric heaters.
A standard installation includes:
Fin tube heat pipe heat exchanger module
Exhaust gas inlet and outlet ducting
Fresh air or heating air ducting
Filtration or dust protection systems
Control dampers and temperature sensors
Systems can be designed for horizontal or vertical gas flow depending on space and layout constraints.
By recovering waste heat that would otherwise be lost:
Fuel consumption can be reduced by 20–40%
Workshop thermal comfort is improved
CO₂ emissions are significantly lowered
Payback periods are typically short
This aligns well with energy efficiency and decarbonization targets in the metallurgical industry.
Fin tube heat pipe waste heat recovery systems offer an effective and durable heating solution for metallurgical workshops. Their high efficiency, inherent safety, and low maintenance requirements make them ideal for recovering exhaust heat from furnaces and process equipment. By converting waste heat into useful energy, metallurgical plants can improve sustainability, reduce operating costs, and enhance working conditions.
