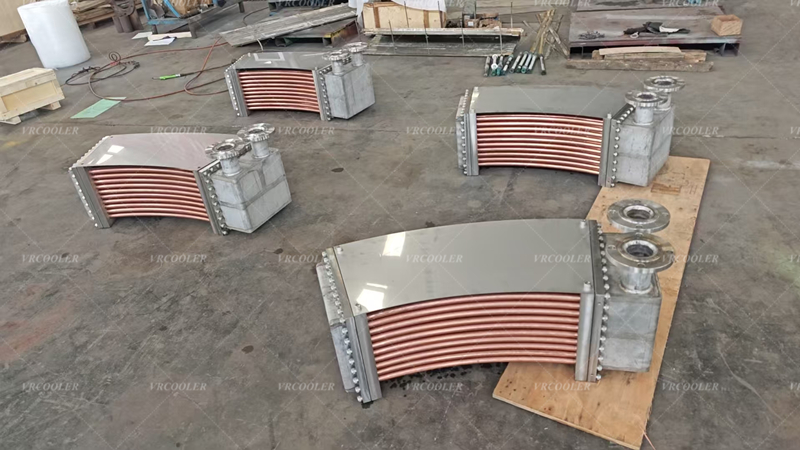

Bearing oil coolers maintain thermal stability for large, heavy-duty machinery—such as hydroelectric generators and turbines—by continuously removing frictional heat from the thrust and guide bearing lubricating oil. They prevent oil degradation, ensuring equipment longevity.
Key Functions and Designs
Heat Dissipation: Coolers act as thermal exchangers, pulling heat from the oil to establish a safe operating balance.
Placement: These heat exchangers can be installed internally (submerged directly within the oil housing/tank) or externally (oil is piped outside the housing to a secondary cooling unit).
Materials: Constructed for high corrosion resistance and efficiency using materials like copper-nickel, stainless steel, brass, and extruded aluminum fins.
Maintenance and Operation Parameters
Maintaining optimal oil temperature prevents bearing failure, varnish buildup, and mechanical wear. In typical large-scale units:
Operating Temperatures: Oil tanks generally operate between 32°C and 37°C.
Alarm / Accident Temperatures: High-temperature alarms typically trigger at 50°C–60°C, with emergency shutdowns generally set between 55°C and 70°C depending on specific bearing tolerances.
