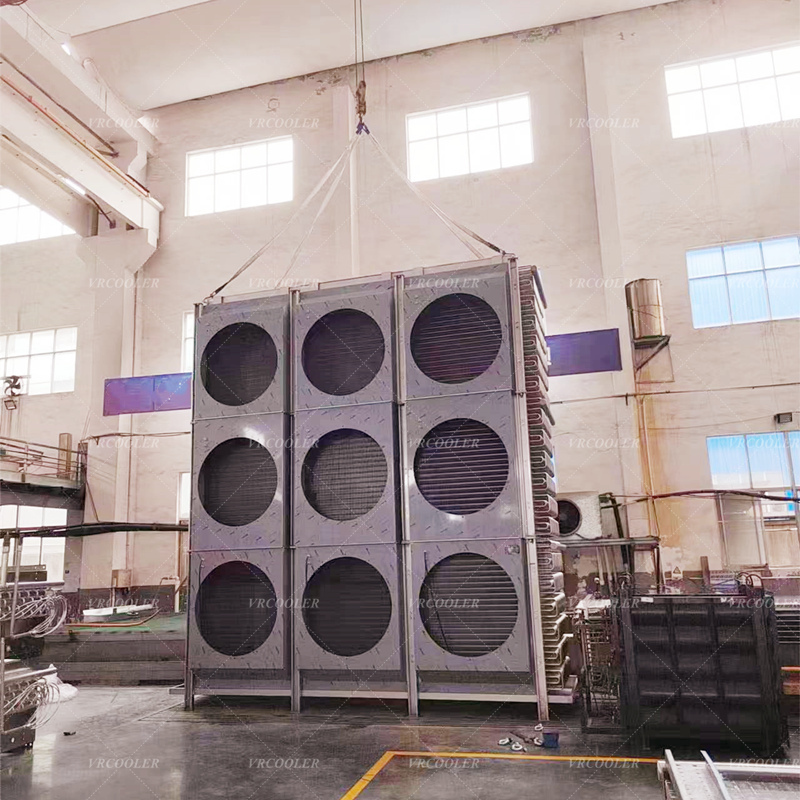

Ammonia Air Cooler with Water Defrost System for Blast Freezer

Ammonia Air Cooler with Water Defrost System for Blast Freezer

Overview

This case study examines the implementation of an ammonia air cooler with a water defrost system for a blast freezer in a food processing facility. The goal was to achieve rapid freezing of products while maintaining energy efficiency and operational reliability.

Background

A food processing facility required an efficient cooling solution for its blast freezer to rapidly freeze large quantities of food products. The existing system struggled with maintaining low temperatures and efficient defrost cycles, leading to product quality issues and increased operational costs.

Objectives

Rapidly reduce the temperature of food products for quick freezing.

Maintain consistent and low temperatures within the blast freezer.

Implement an efficient defrost system to minimize downtime and maintain heat exchange efficiency.

Utilize ammonia as the refrigerant due to its high efficiency and environmentally friendly properties.

Solution: Ammonia Air Cooler with Water Defrost System

An ammonia air cooler was selected for its high efficiency and cooling capacity. A water defrost system was integrated to enhance the defrost process, reducing downtime and maintaining system efficiency.

Key Components

Ammonia Air Cooler: Chosen for its high efficiency and compatibility with the existing refrigeration system.

Water Defrost System: Implemented to ensure quick and effective defrosting of the cooling coils.

Control System: Automated controls to manage temperature, defrost cycles, and system performance.

Safety Systems: Ammonia detection and ventilation systems to ensure safe operation.

Implementation Steps

System Design and Heat Load Calculation

Determined the cooling load requirements for the blast freezer.

Calculated the required capacity of the ammonia air cooler.

Selected an appropriate model, ensuring it met the required cooling capacity and efficiency standards.

Selection of Ammonia Air Cooler

Water Defrost System Design

Designed a water defrost system to periodically melt ice buildup on the cooler coils.

Integrated with the control system to automate defrost cycles based on time and temperature sensors.

Ensured water supply and drainage systems were installed to handle defrost water efficiently.

Installation

Installed the ammonia air cooler within the blast freezer, ensuring proper positioning for optimal airflow.

Connected the cooler to the ammonia refrigeration system with appropriate safety and control measures.

Installed the water defrost system, ensuring proper water flow and drainage.

Integration and Testing

Integrated the cooler and defrost system with the facility's existing control systems.

Conducted thorough testing to ensure the system achieved the desired temperature reduction and efficient defrost cycles.

Implemented safety checks for ammonia leaks and proper ventilation.

Maintenance Plan

Scheduled regular maintenance checks to ensure the ammonia air cooler and defrost system operate efficiently.

Implemented routine inspections for ammonia leaks and system performance.

Provided training for maintenance personnel on safe handling and operation of the ammonia system.

Results

Temperature Control: Successfully achieved rapid temperature reduction, maintaining consistent low temperatures within the blast freezer.

Defrost Efficiency: The water defrost system effectively minimized downtime and maintained high heat exchange efficiency.

Energy Efficiency: Utilized ammonia’s high efficiency as a refrigerant, reducing overall energy consumption.

Product Quality: Improved freezing process led to better product quality and reduced spoilage.

Operational Safety: Ensured safe operation with ammonia detection and ventilation systems in place.

Conclusion

The implementation of an ammonia air cooler with a water defrost system for the blast freezer in the food processing facility proved to be a highly effective solution. The system provided rapid and consistent cooling, efficient defrosting, and enhanced product quality while maintaining energy efficiency. This case study highlights the benefits of using ammonia as a refrigerant and the importance of integrating efficient defrost systems in industrial refrigeration applications.
