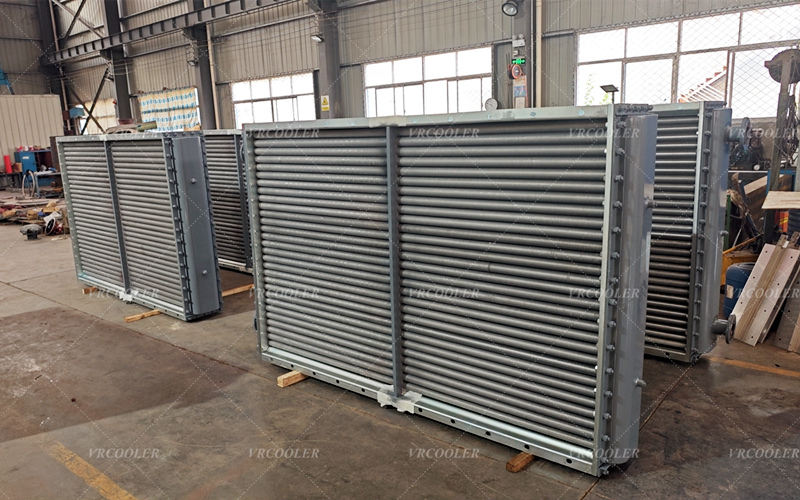

Finned tubes are used in steam condensing applications primarily to increase heat transfer surface area on the gas/air side, where the heat transfer coefficient is significantly lower than on the steam side.
Steam condensation itself has a relatively high film heat transfer coefficient. The limiting resistance is usually on the external side (air or low-velocity gas). Fins address this imbalance.
1. Increased Heat Transfer Surface Area
When steam condenses inside a tube, heat must be rejected to air or another fluid outside. Air-side heat transfer coefficients are typically low (10–100 W/m²·K).
By adding fins:
External surface area increases dramatically
Overall heat transfer coefficient improves
Required coil size decreases
This enables more compact condenser designs.
2. Improved Air-Side Performance
In air-cooled steam condensers:
Fins promote turbulence
Boundary layer thickness is reduced
Convective heat transfer improves
This enhances thermal performance without significantly increasing airflow.
3. Compact and Cost-Effective Design
Without fins:
Larger tube banks are required
More installation space is needed
Higher material cost per kW of heat rejected
Finned tubes reduce footprint and structural load.
4. Better Performance in Low-Temperature Differences
In applications where:
Condensing steam temperature is moderate
Ambient air temperature is high
ΔT is limited
Finned tubes help maintain required heat rejection capacity.
5. Common Applications
Finned tubes are widely used in:
Air-cooled steam condensers
Steam-to-air heating coils
Waste heat recovery systems
Dry cooling systems in power plants
Engineering Perspective
In steam condensation:
Internal resistance (steam side) → low
External resistance (air side) → high
Fins are added to the side with the highest thermal resistance to optimize the overall heat transfer coefficient (U-value).
Summary
Finned tubes are used for steam condensing because they:
Increase effective heat transfer area
Compensate for low air-side heat transfer coefficients
Reduce equipment size
Improve overall thermal efficiency
They are especially essential in air-cooled and dry cooling condenser systems where air is the cooling medium.
