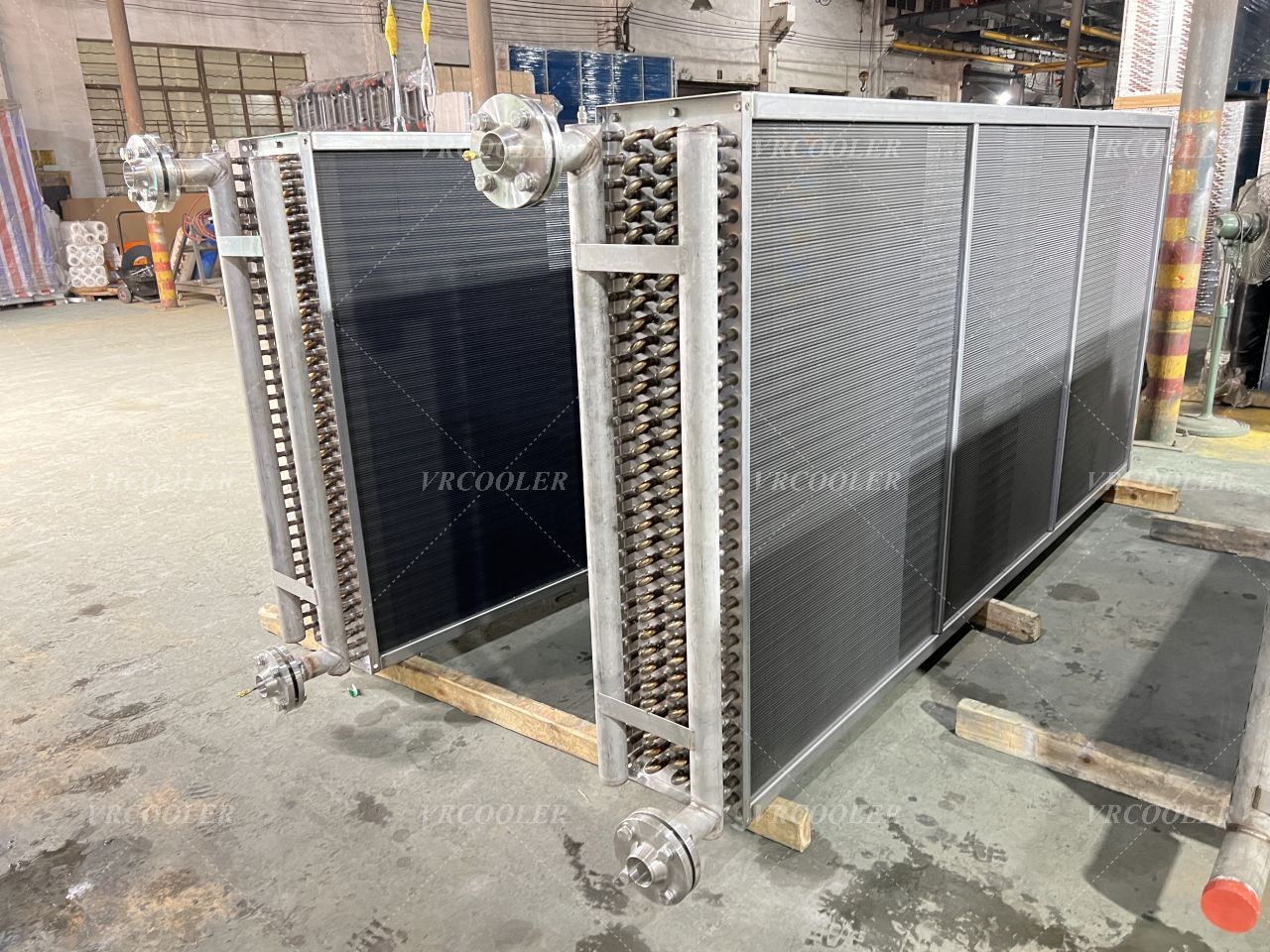

What is the difference between direct expansion coils and water coils?

The main difference between direct expansion coils and water coils is the fluid inside the tubes and the way cooling or heating is delivered.

A direct expansion coil, often called a DX coil, uses refrigerant directly inside the coil tubes. The refrigerant expands and evaporates inside the coil, absorbing heat from the air. This type of coil is commonly used in split air conditioners, packaged rooftop units, condensing units, and refrigeration equipment.

A water coil uses chilled water, hot water, or glycol solution flowing inside the tubes. The water does not change phase inside the coil like refrigerant does in a DX system. Instead, it carries cooling or heating energy from a separate chiller, boiler, or central plant.

Here is the practical difference:

• DX coil: refrigerant is fed directly into the coil

• Water coil: water or glycol is circulated through the coil from another system

Key differences

1. Working fluid

• DX coil: refrigerant

• Water coil: chilled water, hot water, or glycol

2. System structure

• DX coil: connected directly to a refrigeration circuit with compressor, expansion device, and condenser

• Water coil: connected to a hydronic system with pumps, chiller, boiler, or heat source

3. Heat transfer process

• DX coil: refrigerant changes phase inside the coil

• Water coil: fluid usually remains liquid while carrying sensible heat

4. Typical applications

• DX coil: air conditioners, refrigeration systems, dehumidifiers, condensing units

• Water coil: AHUs, fan coil units, central HVAC systems, process cooling and heating

5. Installation complexity

• DX coil: compact system but requires refrigerant piping and careful charging

• Water coil: needs pumps and water piping, but central plants can serve many coils

6. Capacity control

• DX coil: often controlled by refrigerant flow and compressor operation

• Water coil: controlled by water flow, valve position, and plant temperature
