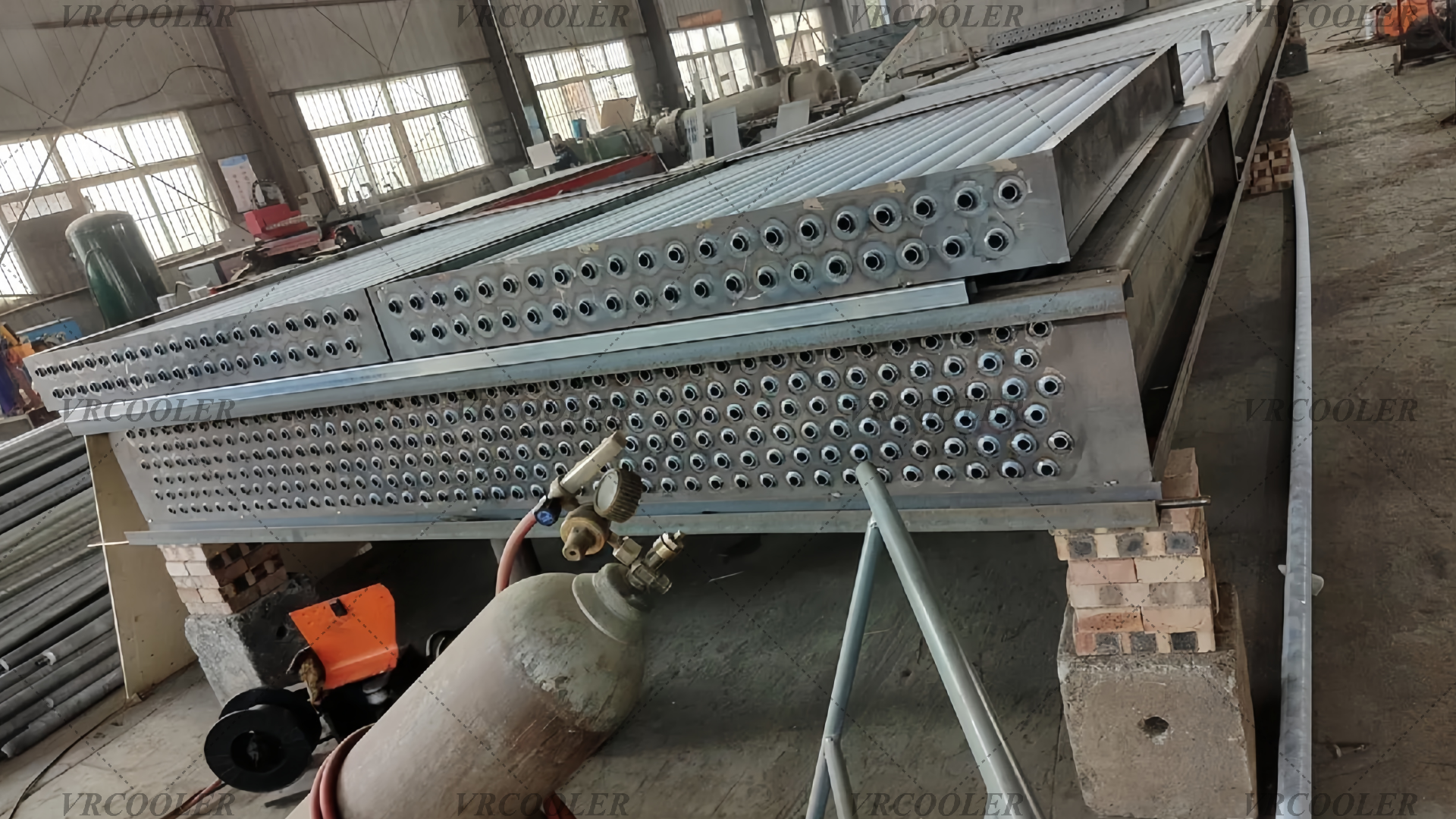

What Is An Air-cooled Fin Fan Heat Exchanger?

An air-cooled fin fan heat exchanger is a type of heat exchanger that removes heat from a process fluid by transferring it directly to ambient air, using finned tubes and mechanical fans, without any cooling water.

How it works

• The hot fluid (oil, gas, refrigerant, glycol, etc.) flows inside the tubes.

• The tubes are equipped with external fins to greatly increase the heat transfer surface area.

• Axial or centrifugal fans force or draw ambient air across the finned tubes.

• Heat is released from the fluid to the air through forced convection.

Key characteristics

• Uses air as the cooling medium instead of water

• Typically installed outdoors

• Can be arranged in horizontal or vertical configurations

• Suitable for high temperature and high pressure applications

Typical applications

• Oil & gas and petrochemical plants

• Power plants and engine cooling systems

• Compressors and hydraulic oil cooling

• Refrigeration and HVAC condensers

• Heat pumps and industrial process cooling

• Heat recovery systems

Main advantages

• No water consumption (ideal for water-scarce regions)

• Lower operating and maintenance costs

• Reduced fouling compared with water-cooled exchangers

• Environmentally friendly and reliable

• Long service life with robust construction

In simple terms, an air-cooled fin fan heat exchanger functions like a large industrial radiator, efficiently rejecting heat to the surrounding air using fins and fans.
