What Is A Dry Expansion Evaporator?

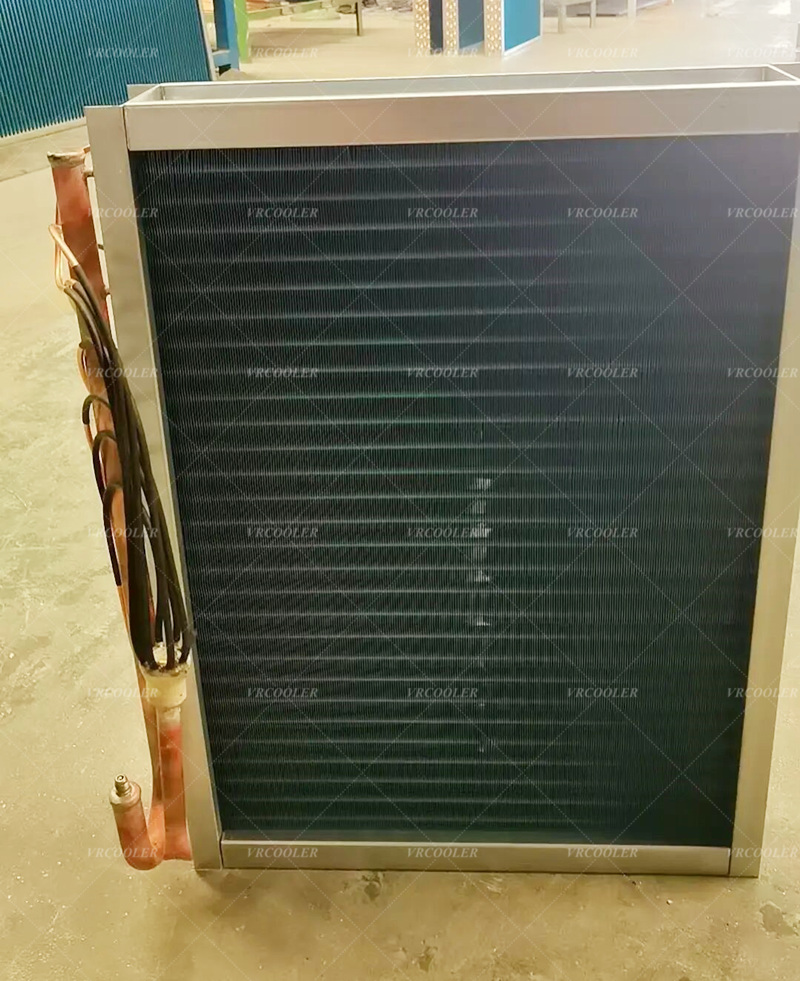

A dry expansion evaporator, also known as a direct expansion (DX) evaporator, is a type of heat exchanger where the refrigerant boils and completely evaporates within the tubes, leaving no liquid refrigerant remaining. It's a key component in refrigeration and air conditioning systems, responsible for absorbing heat and cooling a substance.

How it works:

Refrigerant enters the evaporator as a liquid-vapor mixture, often after passing through an expansion valve.

Inside the evaporator tubes, the refrigerant absorbs heat from the surrounding environment (e.g., air in an air conditioner or water in a chiller).

This heat absorption causes the refrigerant to boil and evaporate, transitioning from a liquid to a vapor state.

The refrigerant is completely evaporated within the tubes, ensuring no liquid refrigerant exits the evaporator.

Applications:

Air conditioning:

Dry expansion evaporators are commonly used in residential and commercial air conditioning systems.

Refrigeration:

They are also widely used in various refrigeration applications, including commercial refrigeration and process cooling.

Other cooling systems:

Dry expansion evaporators can be found in other cooling systems, such as those used in heat pumps and other industrial processes.
