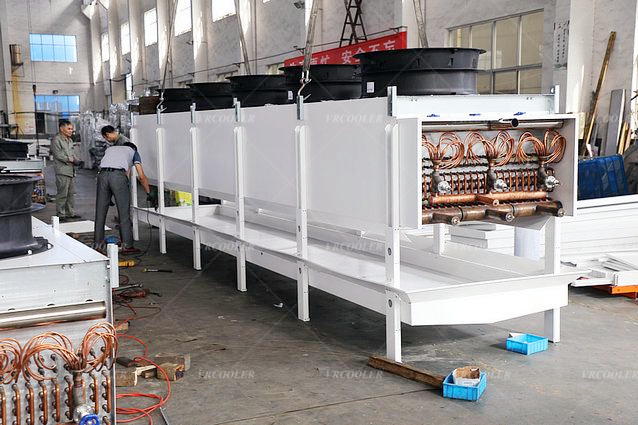

Air Cooler for Quench Tank (Air-Cooled Quench Oil Cooler)

Hot quench oil is pumped out from quench tank, circulates inside heavy-wall finned tubes; multiple direct-drive axial fans blow ambient air across outer aluminum/steel fins to take away oil heat, cooled oil flows back to tank for closed-loop circulation.

Core advantage: 100% water-free cooling → zero water leakage into quench oil, eliminate steam explosion & fire risk (the biggest hidden trouble of water-cooled type).

Key Structural Design (Special for Dirty Quench Oil)

Straight-through large bore tubes (25mm/1 inch OD heavy wall carbon/SS tube)

No U-bend dead space; large flow area resists sludge/carbon blockage from contaminated quench oil; high flow velocity self-scours tube inner wall to reduce fouling.

Removable end header/cover plate

Open both ends directly for brush/flushing cleaning without cutting pipeline, convenient for regular maintenance.

Direct-drive propeller fans (no V-belt)

No belt wear/replacement, low noise, fewer mechanical breakdowns; optional multi-stage fan grouping + VFD speed control for temperature auto-adjustment.

Powder-coated steel frame + sliding thermal expansion base

Offset tube thermal stretch under big temp swing (40~180℃ oil), avoid tube crack from thermal stress.

Full set matching: circulation pump, oil strainer, temperature controller, high-temp alarm for automatic start-stop control.

Common Types & Installation

Skid-mounted integrated unit: pre-assembled with pump & filter, directly connect quench tank pipeline, fast installation for small/medium quench tank.

Split large-size air cooler: separate cooler core + independent pump station, for continuous heat-treatment big quench pool (5000L+ oil volume, heavy production load).

Mobile portable air cooler: with casters, one set serve multiple small quench tanks alternately.

Application Scenarios

Heat treatment furnace quench oil tank (car parts, gear, bearing, tool steel quenching)

Salt bath quenching tank, polymer quenchant tank (anti-water contamination mandatory)

Workshop without available industrial cooling water source
