What Does A Water Steam Separator Do?

A water steam separator is essential for maintaining high-quality steam in industrial and power systems. By removing liquid water, it protects equipment, improves energy efficiency, and ensures the reliability of processes that depend on dry steam. Its design and function vary based on the application, but the core goal remains: to separate moisture and optimize steam performance.

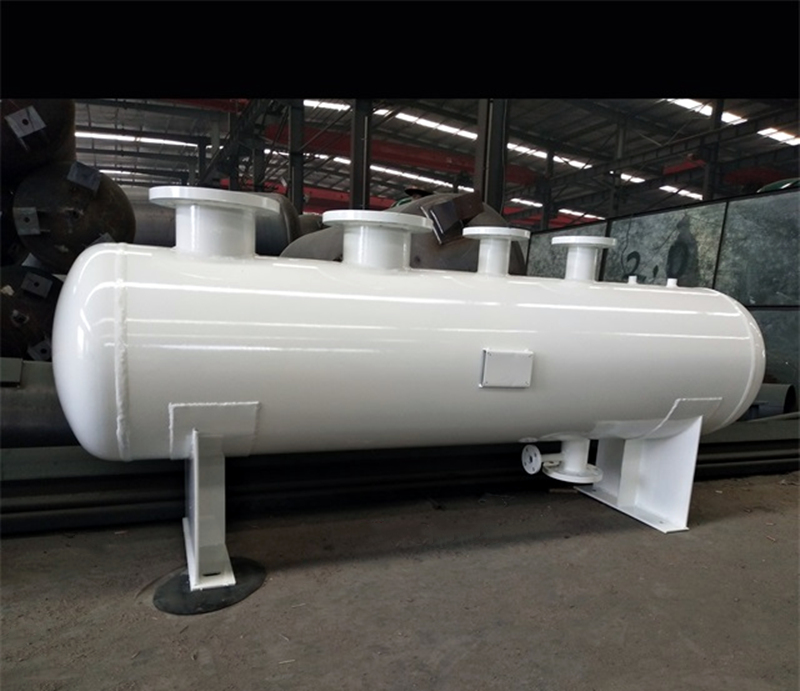

Primary Functions

Remove Moisture from Steam: Steam generated in boilers or other systems often contains liquid water droplets (moisture), which can reduce its efficiency and cause issues in downstream equipment. The separator separates these droplets from the steam, improving its quality.

Prevent Equipment Damage: Moisture in steam can lead to:

Erosion of turbine blades, pipes, or valves.

Reduced heat transfer efficiency in heat exchangers.

Water hammer (pressure surges caused by liquid slugs), which can damage pipes and fittings.

Enhance System Efficiency: Dry steam has higher thermal energy per unit mass, making it more effective for heating, power generation, or industrial processes.

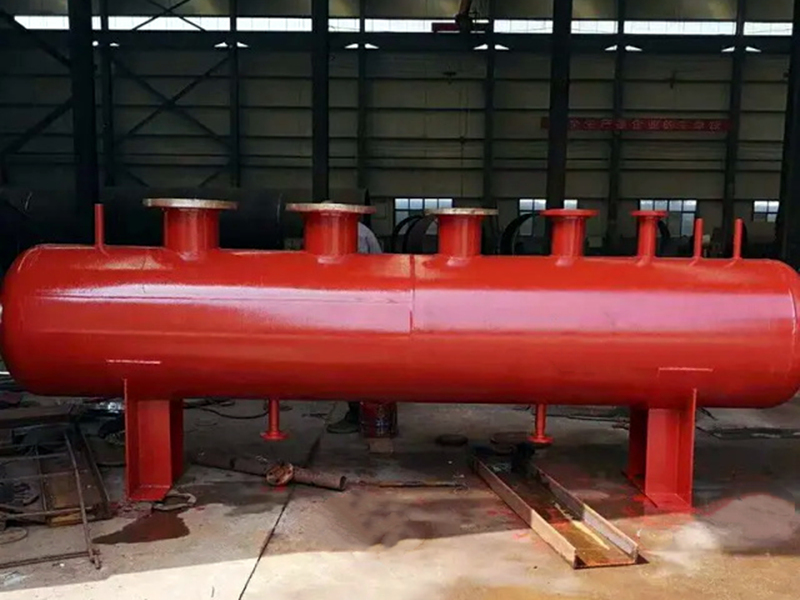

Working Principles

Steam separators use physical forces to separate liquid droplets from steam, often via one or more of the following mechanisms:

Centrifugal Force:

Steam is directed to flow in a circular path (e.g., through vanes or a cyclone structure).

Heavier water droplets are thrown to the outer walls by centrifugal force, while drier steam continues through the center.

Impingement:

Steam hits a baffle, plate, or series of obstacles, causing water droplets to condense and stick to the surface.

The collected water drains to a lower section, while steam flows around the obstacles.

Gravity Separation:

Steam velocity is reduced, allowing heavier water droplets to fall to the bottom of the separator under gravity.

This is often used in combination with other methods for better efficiency.

Filtration:

Fine mesh screens or filters trap tiny water droplets, allowing steam to pass through.

Commonly used for high-purity steam systems (e.g., in pharmaceuticals or food processing).

Applications

Water steam separators are critical in various industries:

Power Generation:

In steam turbines to prevent blade erosion and improve energy conversion.

Between boiler stages to maintain steam quality.

Industrial Processes:

Food and beverage production (e.g., sterilization, cooking with dry steam).

Chemical manufacturing (e.g., distillation, drying processes).

Paper mills (for drying paper rolls with efficient steam).

Heating Systems:

Commercial and residential boilers to ensure dry steam for efficient heating.

District heating networks to reduce corrosion and maintain pipe integrity.

Marine and Aerospace:

Ships’ steam propulsion systems to prevent engine damage.

Aircraft de-icing systems that require dry steam.
