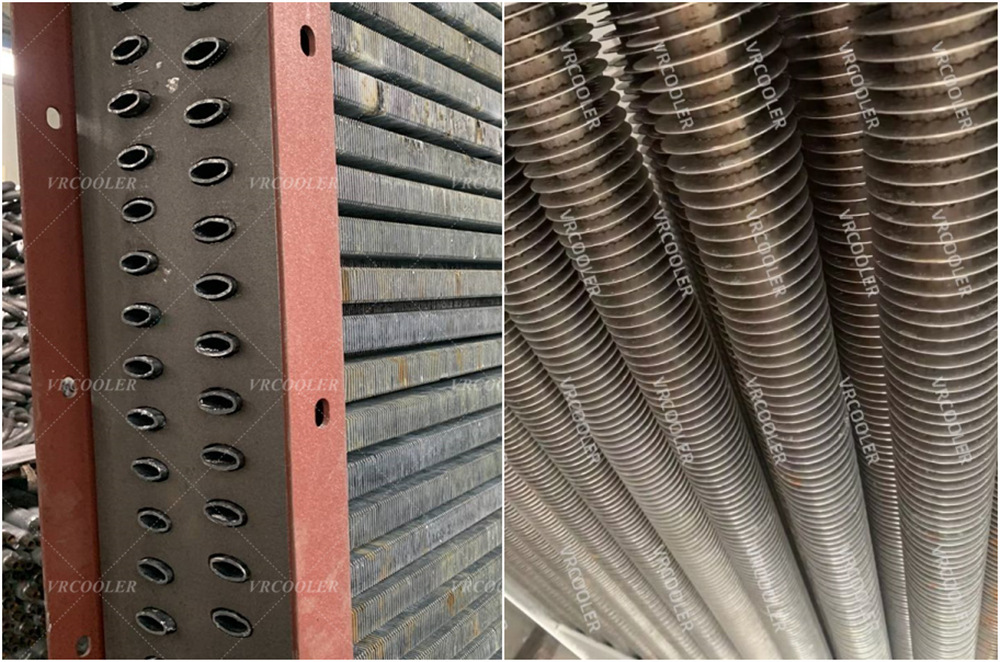

How The Oval And Round Finned Tube Compare for Boiler Economizer Application

How The Oval And Round Finned Tube Compare for Boiler Economizer Application

1. Erosion & Wear Resistance

This is often the deciding factor for coal-fired boilers.

Oval Tubes: They have a significant advantage. Their streamlined shape reduces the "wake" zone behind the tube where ash particles typically swirl and impact the metal. Studies show that compared to round tubes, oval tube bundles can reduce erosion wear by 21% to 73% depending on the row location. This extends the lifespan of the economizer in dusty environments.

Round Tubes: They create a large turbulent wake, which increases the impact velocity of solid particles, leading to higher localized wear and potential tube failure over time.

2. Heat Transfer Efficiency

Oval Tubes: While individual heat transfer coefficients are sometimes slightly lower than round tubes (studies show a ~7-8% reduction), their overall performance is better. Because they allow more tubes to be packed into a smaller space and reduce "dead zones" where gas stagnates, the heat exchange per unit volume of the economizer is higher.

Round Tubes: They offer a larger direct surface area per tube. However, the airflow has a harder time reaching the back of the tube, meaning some of that surface area is underutilized compared to the oval shape.

3. Flow Resistance & Fan Power (Operating Cost)

Oval Tubes: The streamlined shape offers the lowest resistance to flue gas flow. Oval tube bundles can reduce flow resistance by up to 66% compared to round tubes. This means the induced draft (ID) fan at the back of the boiler uses significantly less electricity to pull the flue gas through the economizer.

Round Tubes: The round shape creates higher drag and pressure drop, requiring more energy to push the same volume of flue gas through the boiler system.

4. Anti-Fouling (Ash Accumulation)

Oval Tubes: They are superior in this regard. Because the gas flows more smoothly around the oval tube, there are fewer low-velocity zones where heavy ash particles can settle and stick. This keeps the heat transfer surfaces cleaner for longer, maintaining efficiency.

Round Tubes: The "dead zone" directly behind the tube is a prime location for ash buildup (fouling), which insulates the tube and drastically reduces heat recovery.
